• Brand: Unimig
• Part No: U63009
• Electrode Length (mm):
  2.6mm = 350mm
  3.2mm = 350mm
  4.0mm = 400mm
• Welding Range:
  2.6mm = 50-90A
  3.2mm = 80-130A
  4.0mm = 110-180A
• Yield Stress: 470 MPa
• Tensile Strength: 583 MPa
• Elongation: 29%
• Impact Test: 93J @ -20°C
• Weight: 2kg
• Application: Structural Steel Fabrication / Pressure Vessel welding / Pipe welding / Repair work for Agriculture and machinery / Earthmoving equipment repairs / Layering, “Buttering”
• Classification:
  AS/NZS ISO 4855: B E4916 A U H10
  AWS A5.1: E7016

Features:

• The new twin coated 7016 HYPERARC 16TC Low Hydrogen Electrode offers total performance and features excellent arc stability, low spatter levels and easy slag removal.
• With all its positional capabilities (except vertical down) it is the optimum choice when high quality welding is required.
• The ideal hydrogen-controlled electrode for welding carbon, carbon-manganese, and low-alloy high-strength steels.
• Applications: Structural Steel Fabrication / Pressure Vessel welding / Pipe welding / Repair work for Agriculture and machinery / Earthmoving equipment repairs / Layering, “Buttering”
• Smooth running, basic low-hydrogen electrode, using AC or DC power sources. It has exceptional arc stability and weldability and delivers high-quality weld deposits with reliable notch toughness to -40°C.
• High arc stability.
• Easy arc strike and restrike.
• All positional (except vertical down).
• Easy slag removal: The slag on the HYPERARC 16TC forms with the glassy appearance only a true twin coated electrode can provide. This means it is easily removed, has less clean up, has a better presented bead profile, and provides less downtime.
• Low spatter = less downtime.
• Smooth bead appearance.
• High arc force=Increases penetration

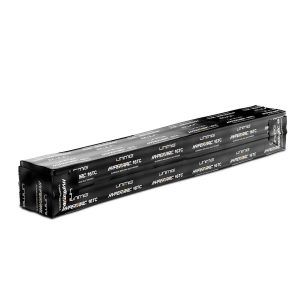

• Each packet of HYPERARC 16TC comes vacuum sealed and supplied in 2kg packets. This ensures the electrodes are dry and ready to use straight out of the packet, as well as reducing wastage in unused electrodes.
• Reduces contamination and wastage.
