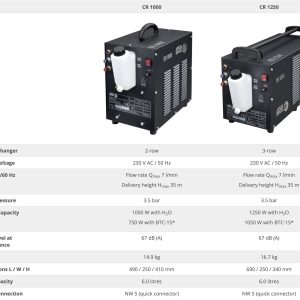

• Brand: Abicor Binzel
• Part Number: 850.1001.1
• Heat Exchanger: 2-row
• Supply Voltage: 230 V AC / 50 Hz
• Pump: 50/60 Hz
• Flow Rate Qmax: 7 l/min
• Delivery Height Hmax: 35 m
• Pump Pressure: 3.5 bar
• Cooling Capacity:
  1000 W with H2O
  750 W with BTC-15
• Noise Level at 1 m Distance: 67 dB (A)
• Weight: 14.9 kg
• Dimensions: L / W / H 490 / 250 / 410 mm
• Tank Capacity: 6.0 liters
• Water Connection: NW 5 (quick connector)

Features:

• High cooling performance in a compact design and easy handling.

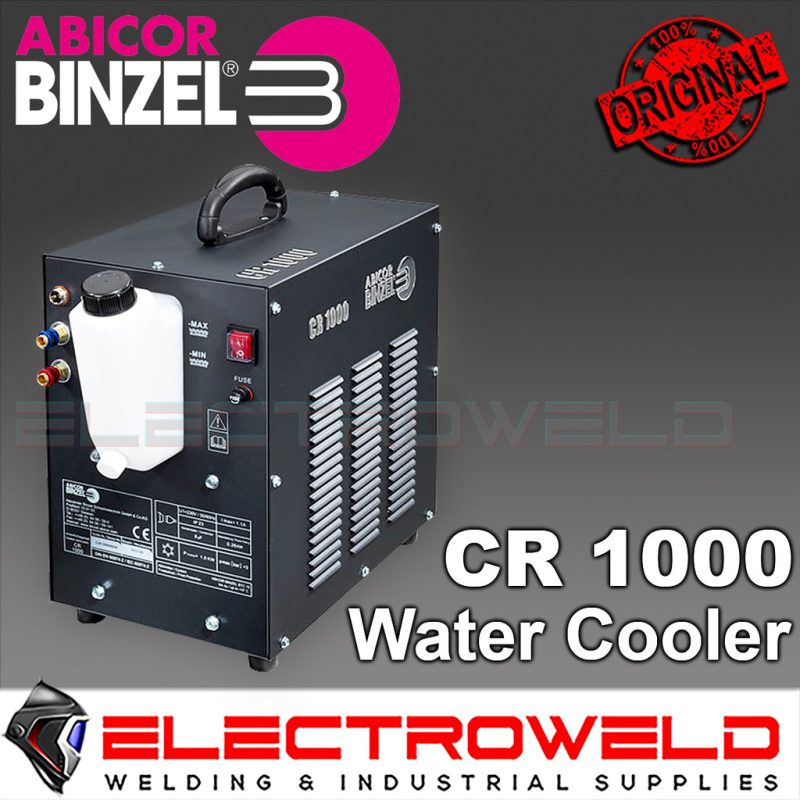

• The mobile cooling unit CR1000 is the ideal complement system to equip a power source designed for air-cooled welding with a liquid-cooled welding torch.
• High cooling performance in a compact design is ideal for mobile use.

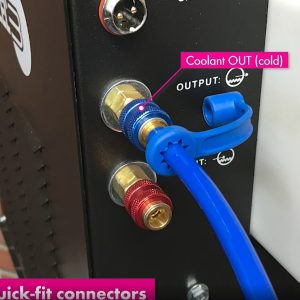

• International quick connectors for easy, time-saving installation.

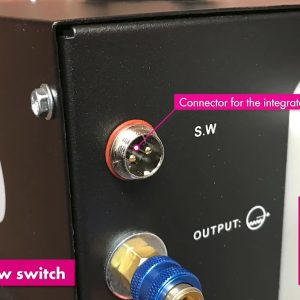

• Integrated flow switch for the permanent monitoring of the complete cooling system.
• protection of the welding torch and the cooling unit – connection set included in the delivery.
• Exposed tank with coolant level indicator for convenient filling and draining of the coolant.
• Overheat protection for pump and motor – for long life.
• Low-weight and sturdy carrying handles for easy transport to the job location.
• Splash-proof fuse, main switch, and louvers.
• In high amperage applications with long welding cycles, air-cooled torch systems can reach their limits. This can lead to malfunctions and unnecessary downtime.
• With a few steps, the integrated flow switch for the permanent monitoring of the complete cooling system can be connected to the machine-side connection of the welding torch.
