• Brand: BT / Tecmen
• Part Number: 703090
• Barcode: 9333424032809
• Net Weight: 5.5kg
• Product Length: 340mm
• Product Width: 560mm
• Product Height: 310mm
• Auto Darkening Filter:
• (ADF) Model 950 iEXP
• Optical Class: 1 / 1 / 1 / 1
• Viewing Area: 107 x 75 mm
• Arc Sensor: 4
• Light State: DIN 3.5
• Dark State Variable Shade: 5 ~ 8 / 9 ~ 13
• Power On / Off: Manual-on/off, Auto-off
• UV / IR Protection Up to Shade DIN 16 at all times
• Power Supply: Solar cell, Battery replaceable
• 2 x CR2450 lithium battery
• Battery Duration: 4000 hours
• Switching Time: 1/25,000 s. from light to dark
• Dark to Light 0.1~1.0 s, Digital Display Control
• Low Amperage: TIG Rated ≥ 2 amps (AC/DC)
• Grinding: Yes
• Helmet Material: High Impact Resistance Nylon
• Warranty 2 Year (ADF & Blower Unit)
• 1 Year (Blower Unit Battery)
• Airflow Rate
• Manufacturer’s minimum design flow rate:
  165+lpm (5.8+cfm)
• Low speed: 170+lpm (6+cfm)
• High speed: 210+lpm (7.4+cfm)
• Fast-charging
• Battery:
• Rechargeable Li-ion Battery
• Duration: 9 h low speed, 5-6 h high speed
• Charge Time: 1 hour
• Filter > 99.97% efficiency
• Relative Humidity Operating R.H.:< 90%, Storage R.H.: < 85%
• Weight: 1020g (Blower unit + battery)

Features:

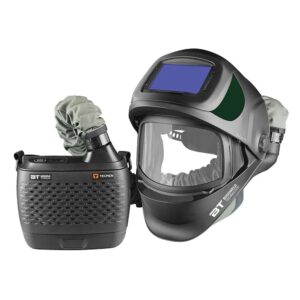

• BT / Tecmen PAPR Freflow iEXP TM1000 is an exceptional quality welding helmet and powered air purifying respirator system combination, working together to protect the welder from arc radiation, spatter, dust, pollutants, fine particles, as well as other contaminants.
• The high-resolution lens technology gives a high-definition visual experience, increases eye comfort, and reduces fatigue.
• Ideal for use in the industrial field where welders spend extended periods welding.
• The Tecmen Freflow filtration unit prevents siphoning in toxic particles, soot, and other contaminants for a safe and refreshing breathing experience.
• The multi-layer particle box filtration system provides efficiency of up to 99.97%.
• The Freflow system senses and automatically adjusts power and air-flow depending on the degree of blockage of the filter box.
• The intelligent control provides a stable and clean air flow supply, keeping the users comfortable at all times.
• Eye/face/respiratory protection with a large 107 x 75mm viewing area and a class-leading P3 filter.
• See True Colours with “ReaLens Technology” and 1/1/1/1 optical class.
• The Freflow PAPR system senses and automatically adjusts power and air flow.
• The Freflow PAPR is powered by a rechargeable Li-ion battery.

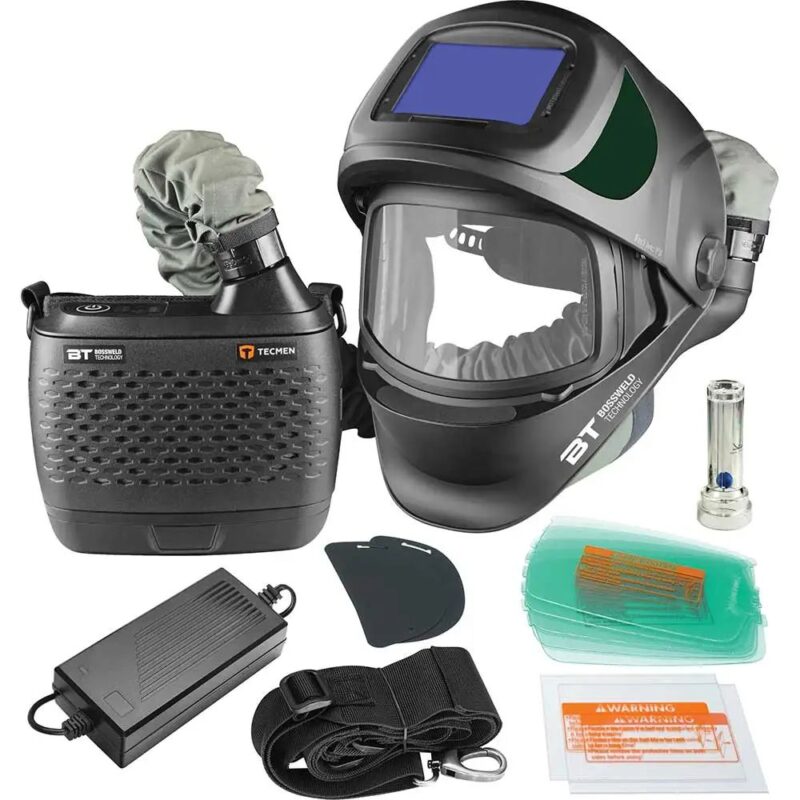

What You Get:

1 x BT / Tecmen Flip Front Auto Darkening Welding Helmet

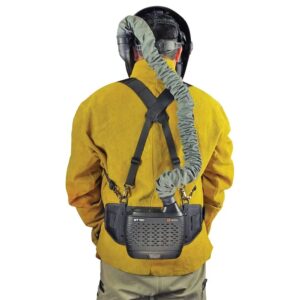

1 x Blower unit (with waist strap and battery)
1 x Spare outside cover lens x 5
1 x Spare inside cover lens x 2
1 x Side lens cover x 2
1 x Hose with cover
1 x Battery Charger
1 x Shoulder Strap
1 x Airflow Indicator
1 x Carry Bag
