• Brand: BT / Tecmen
• Part Number: 703200
• Barcode: 6975055282111
• Product Length: 340mm
• Product Width: 560mm
• Product Height: 310mm
• Net Weight: 5.6kg

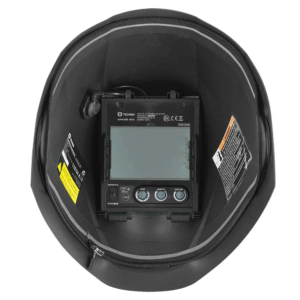

• Auto Darkening Filter
• (ADF) Model ADF815SG iMUX
• Optical Class 1 / 1 / 1 / 1
• Viewing Area 97 x 62 mm
• Arc Sensor 4
• Light State DIN 3.5
• Dark State Variable Shade 5 ~ 8 / 9 ~ 13
• Shade Control Internal, Variable Shade
• Power On / Off, Automatic On / Off
• Sensitivity Control Low – High, by infinity dial knob
• UV / IR Protection Up to Shade DIN 16 at all times
• Power Supply: Solar cell, Battery replaceable
• 2 x CR2450 lithium battery
• Battery Duration 4000 hours
• Switching Time 1/25,000 s. from light to dark
• Dark to Light 0.1 ~ 1.0 s, by infinity dial knob
• Low Amperage TIG Rated ≥ 2 amps (AC/DC)
• Grinding Yes
• Helmet Material: High Impact Resistance Nylon
• Warranty 2 Year (ADF & Blower Unit)
• 1 Year (Blower Unit Battery)
• Airflow Rate:
• Manufacturer’s minimum design flow rate: 165 + lpm (5.8 + cfm)
• Low speed: 170+lpm (6+cfm)
• High speed: 210+lpm (7.4+cfm)
• Fast-charging
• Battery
• Rechargeable Li-ion Battery
• Duration: 9 h low speed, 5-6 h high speed
• Charge Time: 1 hour
• Filter > 99.97% efficiency
• Relative Humidity Operating R.H.:< 90%, Storage R.H.: < 85%
• Weight 1020g (Blower unit + battery)

Features:

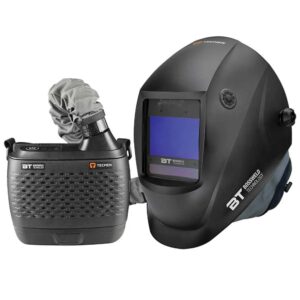

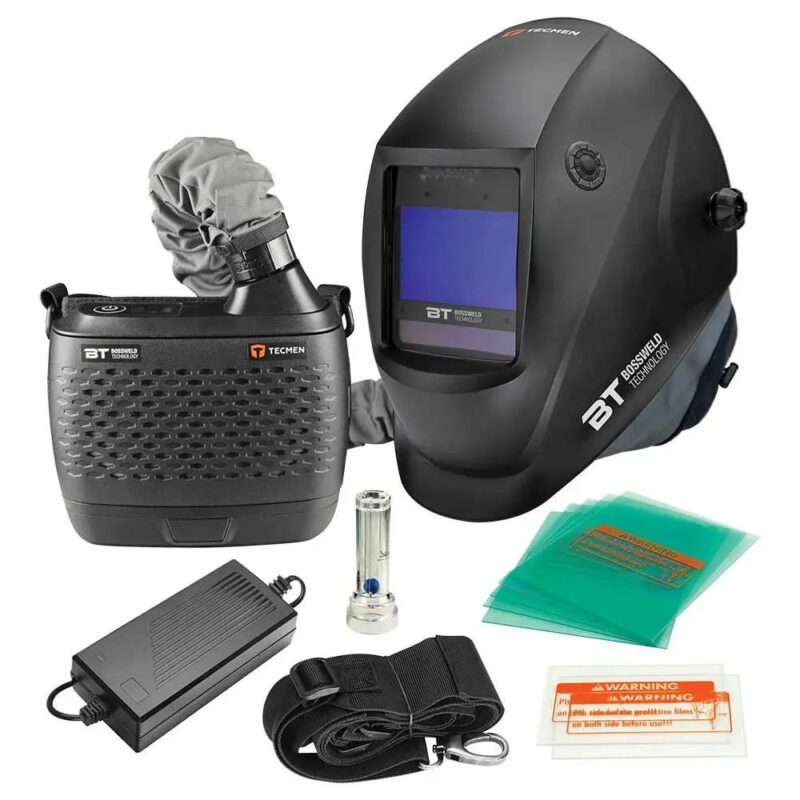

• BT / Tecmen PAPR Freflow iMUX TM16 is an exceptional quality welding helmet and powered air purifying respirator system combination, working together to protect the welder from arc radiation, spatter, dust, pollutants, fine particles as well as other contaminants.
• The high-resolution lens technology gives a high-definition visual experience, increases eye comfort, and reduces fatigue.
• Ideal for use in the industrial field where welders spend extended periods welding.
• The Tecmen Freflow filtration unit prevents siphoning of toxic particles, soot, and other contaminants for a safe and refreshing breathing experience.
• The multi-layer particle box filtration system provides efficiency of up to 99.97%.
• The Freflow system senses and automatically adjusts power and air flow depending on the degree of blockage of the filter box.
• The intelligent control provides a stable and clean air flow supply, keeping the users always comfortable.
• Eye/face/respiratory protection with a large 97 x 62mm viewing area and a class-leading P3 filter.
• See True Colours with “ReaLens Technology” and 1/1/1/1 optical class.
• The Freflow PAPR system senses and automatically adjusts power and air flow.
• The Freflow PAPR is powered by a rechargeable Li-ion battery.
