• Brand: Cigweld
• MPN: 45XC10F1AIR
• Arc Sensors: 2
• CE Optical Classification: ISO 16321-2 V2 (Previously EN379 1/1/1/2)
• Controls: Analogue
• Filter Class: TH3 (<0.2% inward leakage)
• Head Gear: 4-Point Harness
• Particle Filter Type: P3
• Shade Range: 4-8/9-14
• Switch Time Light To Dark: 0.2ms
• Variable Airflow Rate: 170, 200, 230L/min
• Viewing Area: 96mm x 40mm = 62mm²
• Warranty (Blower Unit): 1 Year
• Warranty (Helmet): 3 Years + 6 Months Extended
  CYCLONE PAPR
• Particle Filter Type: P3 P RSL
• Airflow Rate:
• Variable speed: 170, 200, 230L/min
• Standard Battery Specifications:
• Li-ion 14.8V x 2.6Ah = 38.48Wh
• Standard Battery Run Time: >10hrs 170L/min, >6hrs @230L/min
• Standard Battery Charging Time: 2hrs
• Battery Life: >500 Charging Cycles
• Heavy-Duty Battery Specifications1 (Sold Separately): Li-ion 14.8V x 5.2Ah = 76.96Wh
• Heavy-Duty Battery Run Time: >20hrs 170L/min, >12hrs @230L/min
• Heavy-Duty Battery Charging time: 4hrs – Standard Charger 2hrs – Rapid Charger2 (Sold Separately)
• Battery Life: <500 Charging Cycles
• Warranty:
• Blower Unit – 1 Year
• Battery – 1 Year

Features:

• Based on one of our fastest-selling Arcmaster XC10 welding helmets!

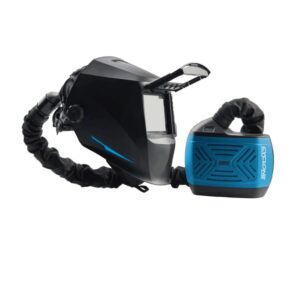

•  Flip-up and Nod-down Lens makes switching between welding and grinding quick, easy, and seamless without removing the helmet.
•  The ADF features Ultra View Technology that provides enhanced colour recognition with optimum clarity for a superior viewing experience.
•  The Arcmaster XC10 AIR is equipped with 2 highly responsive arc sensors that make sure the lens switches from light to dark instantly for maximum protection and peace of mind!
•  The ADF is certified to ISO 16321 V2, providing a crisp, distortion-free view of the weldment. Experience every weld crystal clear!
•  The lightweight construction of the helmet shell, paired with a comfortable and ergonomic 4-point head harness, provides all-day wearability!
•  The ADF lets the welder adjust shade range, sensitivity, and delay through a tactile control panel that makes changing settings a breeze. The ADF has been designed to take a 1 x CR2032 replaceable battery for the longest possible life.
•  Tested and certified to: AS/NZS 1337.1, AS/NZS 1338.1, ISO 16321-2
•  Cyclone PAPR Features:
•  3-stage filtration system (Spark Arrestor, Prefilter, P3 Filter) provides the highest possible protection against carcinogenic welding fumes.
•  Comes equipped with a reliable 2.6Ah battery that lasts up to 10hrs on the lowest (170l/Min) or 6hrs on the highest (230l/Min) airflow setting for minimal downtime.
•  Built-in filter alarm system provides real-time vibratory and audible alert to the welder when the filter is clogged or performing at suboptimal levels and needs a replacement, taking guesswork out of the equation for a safer, more efficient operation.
•  Some of the most affordable filter replacement and spare parts to ensure that premium safety is available to everyone and to keep long-term running costs as low as possible.
•  Level up with extra accessories (sold separately)
•  o Cyclone Backpack: The Cyclone Backpack is engineered to distribute the weight of the blower unit evenly across the back, making the blower unit feel light enough for extended periods of time.
•  o HD Battery: The Cyclone PAPR is compatible with the 5.2Ah Heavy Duty battery. This high-performance battery will keep the ‘Cyclone’ going for a whopping 20 hours (at 170l/Min)!
•  o Rapid Charger: The Rapid Charger charges the 5.2Ah Heavy Duty Battery from 0 to 100% in just 2 hours, cutting the downtime in half compared to the Standard Battery Charger!
•  **Rapid Charger is only recommended to use with the 5.2Ah Heavy Duty Battery
•  Tested and certified to: AS/NZS 1716 and EN 12941

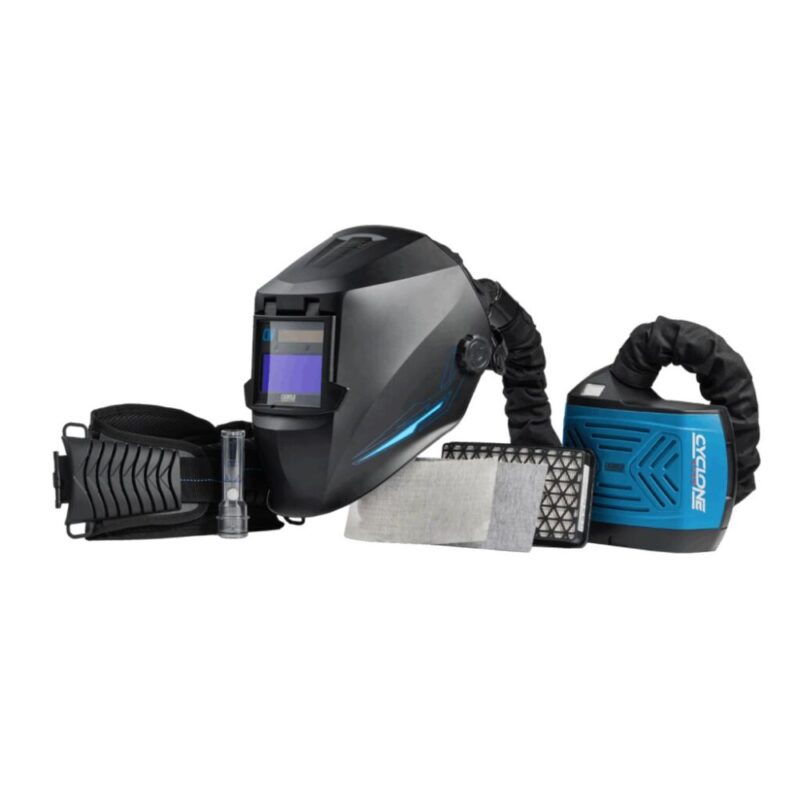

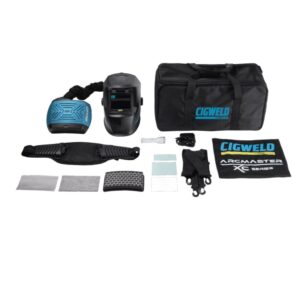

What You Get:

ARCMASTER XC10 AIR Includes:
1 x Arcmaster XC10 AIR
2 x Spare Front Cover Lens
2 x Spare Rear Cover Lens
1 x Helmet Carry Bag
1 x Operating Manual
CYCLONE PAPR Includes:
1 x Cyclone PAPR Blower Unit
1 x Spark Arrestor
1 x Prefilter
1 x P3 Particle Filter
1 x Waist belt with Shoulder Straps
1 x Expandable Breathing Hose 1.2m
1 x Rechargeable 2.6Ah Li-ion Standard Battery
1 x Standard Battery Charger
1 x Flowmeter for Testing correct airflow
