• Brand: CIGWELD
• Part Number: 455FX01
• UPC: 9310574084902
• Power Supply (Voltage): Single Phase 230V 10A Plug
• Air Volume: 1,200 m³/h
• Motor Power: 1.1 kW
• Filter Grade: F9 (EN 779:2012)
• Filter Efficiency: > 99%
• Filter Surface Area: 8 m²
• Cleaning Method: Auto Filter Dusting (Compressed Air 0.4-0.6MPa)
• Noise Level: 72 dB (A)
• Dimensions: 600L x 560W x 1100H (mm) without 3m arm
• Weight: 126kg without arm

Features:

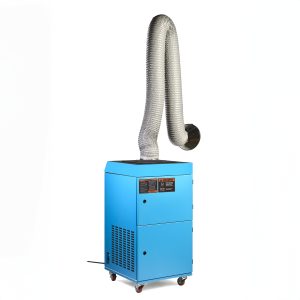

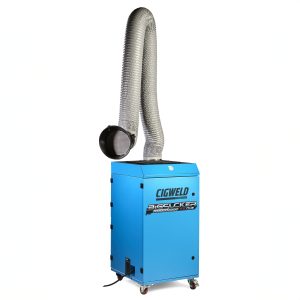

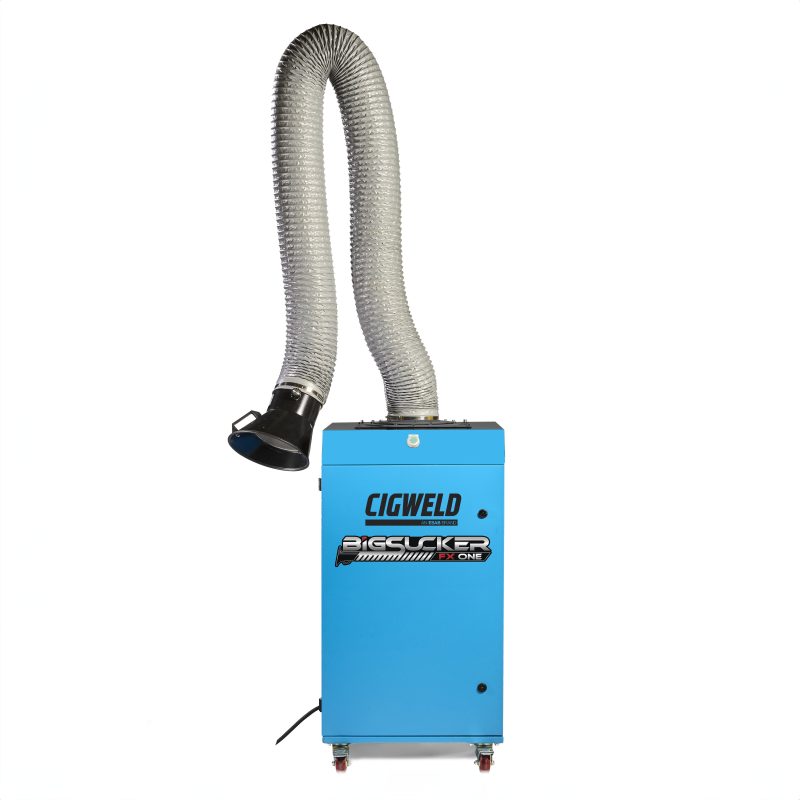

• The BigSucker FX1 is a high-performance Fume eXtraction filtration unit designed to effectively remove airborne pollutants such as welding fumes and dust, meeting F9 filtration class standards.
• It efficiently captures hazardous CMR (Carcinogenic, Mutagenic, Reprotoxic) substances produced during welding of high-alloyed steels or consumables containing more than 5% Chromium (Cr) and Nickel (Ni).
• Featuring a compact and mobile design, the BigSucker FX1 ensures user-friendly operation, high purification efficiency, and low noise levels.
• Widely applicable for all types of fumes generated from ARC Welding, inclusive of Plasma, Carbon Arc Gouging as well as Gas Cutting or Welding.
• With an adjustable 3m Arm and robust castors, you can easily maneuver the unit into the right position to get the most precise fume extraction as possible, providing a much cleaner working environment.
• EASY TO USE, EASY TO SET
• Simple one-button ‘Push to Start’ with 230V 10A plug, 360° Rotatable & Extendable 3m Arm, Automatic Filter Dusting.
• Efficiency >99% in capturing welding fumes with F9 filter, Extra large filter for extended filter life of up to a year.
• Quick and easy filter replacement, Robust castors with lockable front wheels.
• The BigSucker FX1 is a cost-effective, compact, and mobile 230V (10A) single-arm fume extraction unit.
• Constructed from high-quality sheet metal, it features four heavy-duty lockable wheels for easy maneuverability.
• Engineered for welding and grinding applications, the BigSucker FX1 effectively captures and purifies airborne fumes and dust.
• Its 360-degree rotatable suction arm allows for precise positioning, easily adjusted and maneuvered using the handle on the hood.
• Equipped with EN 779:2012 certified filters, the BigSucker FX1 achieves a 99.8% efficiency rate in removing nanoparticles, ensuring compliance with indoor emission standards for a cleaner and safer work environment.
• Getting the most out of your BigSucker’s filtration is easy!
• Fitted with an automatic “dusting” system, you can simply fit a compressed air line to regularly dust the active filter surface, forcing build-up of debris to settle into the dust tray for removal.
• This prolongs the service life of your filter as well as reduces the frequency of filter inspection and manual cleaning. (See operating manual for further maintenance procedures).
• We stand behind the quality of our products, which is why the BigSucker FX1 comes with 1-year warranty.

What You Get:
