• Brand: CIGWELD
• Part Number: 800170

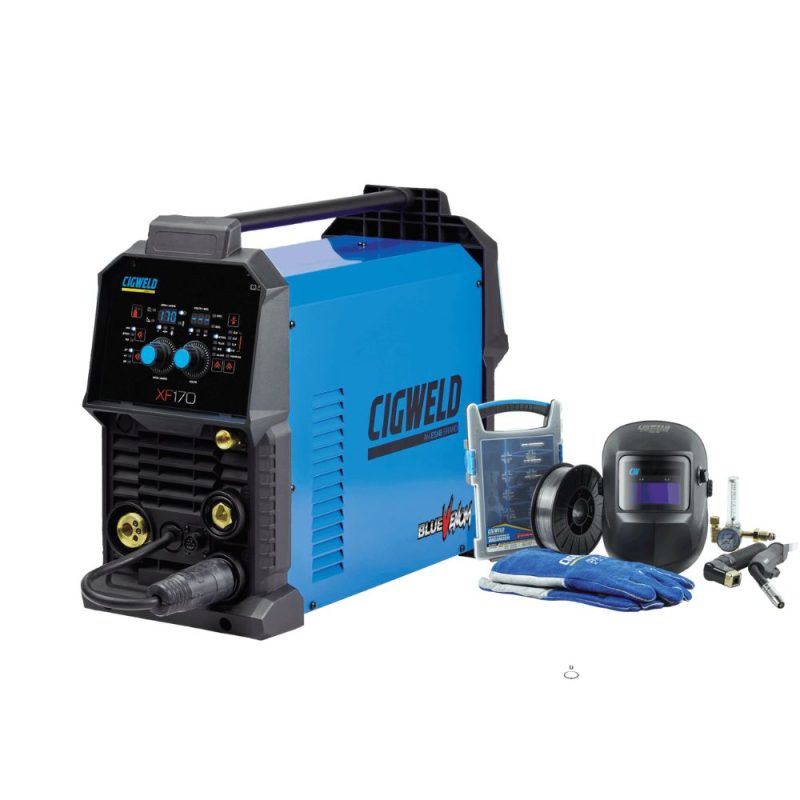

• Model: BlueVenom XF170 PowerPack
• Power Supply: 230V
• Plug Type: 10A
• Welding Processes: MIG, LIFT-TIG, PULSE STICK, PULSE TIG, STICK
• Material Compatibility: Mild Steel, Aluminium, Stainless Steel
• Usage: DIY / Light Industrial
• Material Thickness (STICK): Up to 10 mm
• Material Thickness (TIG): Up to 6 mm
• Pulse Capable: STICK, TIG (MIG not supported)
• Duty Cycle:
  MIG – 170A @ 10% (22.5V)
  STICK – 170A @ 8% (26.8V)
  TIG – 170A @ 15% (16.8V)
• Generator Requirement: 9 kVA (0.8 PF)
• Number of Phases: Single Phase
• Open-Circuit Voltage (VRD ON): <35V
• Additional Features: Dual gas inlets, QuickSet control, portable lightweight design
• Dimensions (Power Source): 485 × 220 × 385 mm
• Package Dimensions: 650 × 280 × 330 mm
• Weight (Total Package): 27 kg
• Weight (Power Source Only): 11 kg
• Protection Class: IP21S
• Standards: AS 60974.1:2020 / IEC 60974-1:2019 / EN IEC 60974-10:2021
• Warranty: 2 Years + 6-Month Extended Warranty

Features:

• Perform MIG, Stick, or TIG welding from one lightweight inverter, with easy process selection and QuickSet control that adjusts parameters automatically for consistent results.

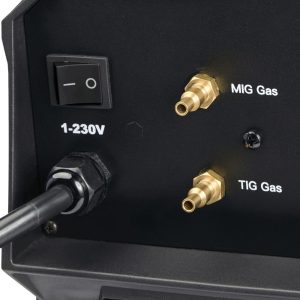

• Save time and boost productivity with two independent gas inlets for MIG and TIG. Keep both bottles connected and ready to switch between processes without interruption.
• Engineered with robust internal components and tested to Australian standards, ensuring long-term reliability on-site or in the workshop.
• At just 11 kg, the XF170 is 30% smaller than typical welders in its class — built for portability without compromising welding power or arc performance.
• The CIGWELD BlueVenom XF170 combines the strength of a workshop welder with the convenience of a portable powerhouse.
• Designed to deliver exceptional performance across MIG, Stick, and TIG processes, it’s your all-in-one solution for fabrication, maintenance, and repair.
• Compact, tough-tested, and easy to use, the XF170 ensures you’re ready for any job anywhere.
