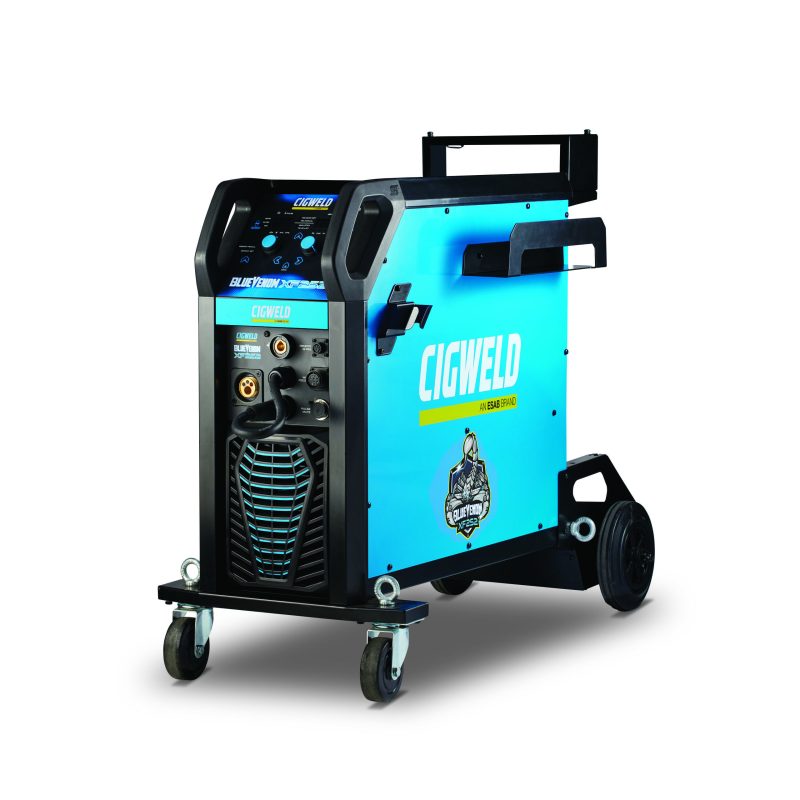

Cigweld BlueVenom XF252 Mig Tig Stick Welder + BZ36 Torch Machine W1400252

The BlueVenom XF252 is a compact 3-in-1 multiprocess single-phase welding inverter, purpose-built with a slimmer profile to provide easier access in tight or restricted spaces, while also functioning as a versatile modular arc station. Delivering excellent arc performance, it supports a full range of popular processes: MIG in QuickSet and Manual modes, gas and gasless welding, Single and Double Pulse MIG with the optional PulseMate, STICK (MMA with VRD safety), and TIG DC-Lift modes. For even greater flexibility, the XF252 is fully compatible with the new 4R-Rover remote wirefeed system (sold separately). This plug-and-play, four-roll drive unit can be positioned exactly where you need it, whether on a boom or gantry, thanks to its 8m interconnection cable and integrated hanging mount. Designed with a low-mounted handle, the 4R-Rover keeps the footprint compact while still accommodating a 300mm wire spool, making it one of the most space-efficient wirefeed solutions available.

Original price was: $2,575.00.Current price is: $2,390.00.

free shipping banner 3
  • Brand: Cigweld
  • Part Number: W1400252
  • Additional Features: Push Pull Gun Compatible, Spool Gun Compatible
  • Dimensions Power Source: 1075 x 460 x 865mm
  • Duty cycle:
  • MIG:
    250A @ 35%, STICK: 230A @ 35% *With upgraded Supply Lead. See Operating Manual., TIG: 250A @ 35%
  • Generator Requirement: 12.0kVa
  • Material Thickness MIG: 0.6-14.0mm
  • Material Thickness STICK: 2.0-16.0mm
  • Material Thickness TIG: 1.0-12.0mm
  • Material Type: Mild Steel, Stainless Steel, Aluminium, Bronze
  • Number of Phases: Single Phase
  • Plug Type: 15A, 25A
  • Power Supply: 240V
  • Pulse Capable: Yes
  • Pulse Capable MIG: Yes
  • Pulse Capable STICK: No
  • Pulse Capable TIG: No
  • Usage: Trade
  • Warranty: 3 Years + 6 months Extended Warranty
  • Welding Process: MIG, MIG PULSE, STICK, TIG

Features:

  • 300mm Diameter Spool Capability and includes 200mm spool adapter
  • MIG Adjustable Wire Burnback
  • MIG Crater Fill function in 2T & 4T
  • MIG Side door wire installation, side loader
  • MIG Anti de-spooling safety feature
  • MIG PulseMate , Spool Gun & Push-Pull Gun Compatible
  • STICK with Voltage Reduction Device (VRD) built-in for Safe Welding
  • STICK Hot Start
  • STICK Arc Force
  • TIG Foot Control Compatible
  • TIG Dial Remote Torch Compatible
  • MIG Gun holder and cable management bracket
  • Get the Full Package (sold separately):
    BlueVenom 4R-ROVER Wirefeeder – P/N: W3200401
    BlueVenom PulseMate – P/N: W4200PM1
    BZL36 Push-Pull Gun, 8m – P/N: W52BP36E8
    BZL24 Spool Gun, 6m – P/N: W52BS24E6
  • Engineered Gas Cylinder holder for up to ‘G’ Size cylinders
  • 4-Point Lifting Lugs for safer and convenient maneuverability
  • Locking brackets for 4R-Rover to avoid wire feeder sliding
  • 4x Roll Wire Drive system
  • Here’s the kicker – want Pulse? Of course you do! Turn your XF252 arc station into a single and double pulse work horse! Simply
  • plug in the hand-held PulseMate pendant (sold separately) equipped with 8m of lead into the XF252 machine or 4R-Rover and start getting
  • TIG like looking welds through our simple yet intuitive SimplePulse MIG system!
  • Here’s the kicker – want Pulse? Of course you do! Turn your XF252 arc station into a single and double pulse work horse! Simply
  • plug in the hand-held PulseMate pendant (sold separately) equipped with 8m of lead into the XF252 machine or 4R-Rover and start getting
  • TIG like looking welds through our simple yet intuitive Simple Pulse MIG system!
  • See terms and conditions at cigweld.com.au or in the Operating Manual, included with the machine
  • 3-Year conditional warranty
