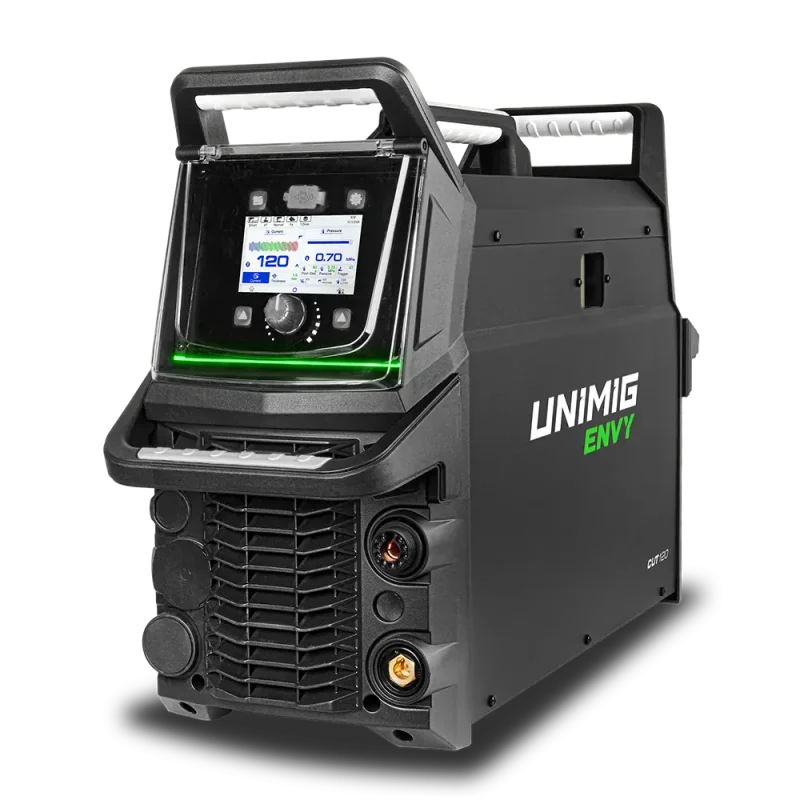

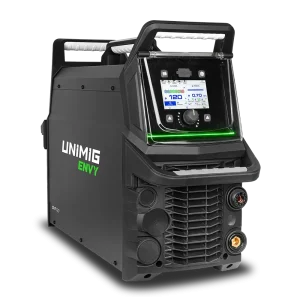

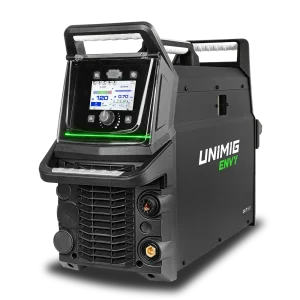

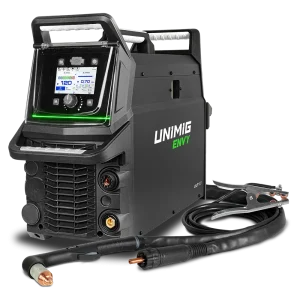

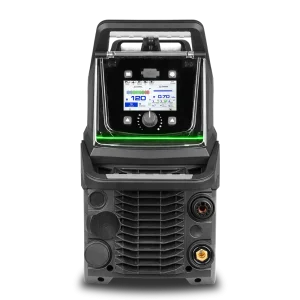

ENVY CUT 120 Plasma Cutter
Top-of-the-line cutting power with this professional-grade plasma cutter, perfect for the worksite or workshop.
Enjoy its high-performance duty cycle of 100% @ 120A
Key Features
- Easily navigate and adjust parameters with the LCD touchscreen
- 50mm clean cut and 70mm severance, the ultimate in cutting performance
- The CNC connection means you can use this machine for every kind of plasma application
Cutting Capacity
Mild Steel
– Up to 50mm clean cut
– 70mm severance
Stainless Steel
– Up to 45mm clean cut
Aluminium
– Up to 40mm clean cut
Cutting Modes
Solid Plate Cutting
- Cut through solid metal plate on any material.
Perforated Mode:
- With the perforated cutting mode, you can cut materials like grating or mesh without interruption.
Gouging Mode:
- Remove welds, defects or existing metal quickly and cleanly
CNC Compatible
- Connect to your CNC table with the dedicated interface.
Perfect for repeatable production work and precision cutting.
Automatic Air Pressure Control
- The machine regulates its own air pressure internally, so you do not need to adjust your compressor.
- The digital regulator delivers highly accurate, consistent airflow for cleaner starts and more reliable cuts.
- Strike the arc without touching the workpiece
- Pilot arc start lets you cut through paint, rust or scale with ease and gives you better control on uneven surfaces
- Because the tip does not need to drag, your consumables last longer and your starts stay consistent.
Smart Fan Technology
- The fan runs only when needed, reducing noise, cutting power use and limiting the dust drawn into the machine.
- This keeps internal components cleaner and helps extend the overall life of the unit.
- A total of 100x jobs can be saved with various parameters set to your personal preferences and specific work
- The air test ensures that your compressor is connected and that the air pressure is dialled in to produce the best cuts.
- Connect the machine to a generator and use it wherever, whenever you need it. We recommend 26kVA for this machine.
Specifications
-
Input Voltage: 415V Three-Phase
-
Supply Plug: 32A
-
Ieff: 27.5A
-
Imax: 27.5A
-
Air Flow Draw: 140–330 L/min
-
Air Pressure: 43.5–101.5 PSI (3–7 bar / 0.3–0.7 MPa)
-
Open Circuit Voltage: 402V
-
Protection Class: IP21S
-
Insulation Class: H
-
Minimum Generator Required: 26 kVA
-
Connector Type: Dinse 35/50
-
Standard Compliance: AS 60974.1
-
Warranty: 5 Years
-
Dimensions: 810 × 280 × 520mm
-
Weight: 39.20 kg
Plasma Specifications
