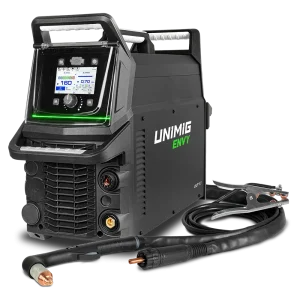

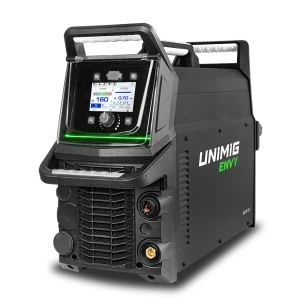

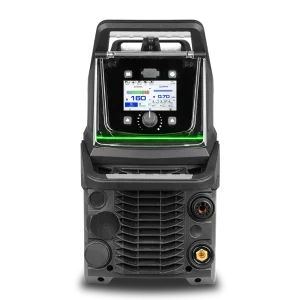

ENVY CUT 160 High-Performance Plasma Cutter 415V
Experience maximum cutting performance with the ENVY CUT 160 — designed for fabrication shops, metalworking professionals and heavy-duty industrial applications. With ultra-fast cutting speeds and exceptional clean-cut capacity, this is the ultimate machine for precision cutting.
Key Features
Ultimate Cutting Performance
- 65mm clean cut and up to 80mm severance on mild steel
- Heavy-duty power for thick plate cutting
- Precision cutting with a professional-grade output
Easy-Use LCD Touchscreen
- Adjust all settings directly through the full-colour digital interface.
Smart-Set Programs
- Just choose cutting type, material and thickness — the machine sets optimal parameters automatically.
CNC Connectivity
- Compatible with plasma CNC tables
- Switch seamlessly from handheld to automated cutting
- Provides precise, repeatable cutting control
Automatic Air Pressure Regulation
- Machine automatically regulates internal air pressure
- No manual compressor adjustments
- Cleaner starts, consistent airflow and longer consumable life
Pilot Arc Start
- Cut through rust, paint or uneven surfaces
- Long consumable life due to non-contact arc starting
Cutting Capacity
| Material |
Clean Cut |
Severance |
| Mild Steel |
65mm |
80mm |
| Stainless Steel |
60mm |
— |
| Aluminium |
50mm |
— |
Cutting Modes
Solid Plate Cutting
- For smooth and accurate cuts through all solid metals
Perforated Mode:
- Ideal for grating, fencing & patterned metal
Gouging Mode:
- Remove welds, imperfections or surface material quickly
CNC Compatible
- Connect to your CNC table with the dedicated interface (Perfect for repeatable production work and precision cutting)
What’s Included
- ENVY CUT 160 Plasma Cutter
- 6m SC160 Plasma Torch
- 4m 300A Earth Clamp & Lead
- Operating Manual
Specifications
-
Input Voltage: 415V Three-Phase
-
Supply Plug: 32A
-
Ieff: 32.9A
-
Imax: 42.4A
-
Air Flow Draw: 140–330 L/min
-
Air Pressure: 43.5–101.5 PSI (3–7 bar / 0.3–0.7 MPa)
-
Open Circuit Voltage: 400V
-
Protection Class: IP21S
-
Insulation Class: H
-
Minimum Generator Required: 40 kVA
-
Connector Type: Dinse 35/50
-
Standard Compliance: AS 60974.1
-
Warranty: 5 Years
-
Dimensions: 810 × 280 × 520mm
-
Weight: 45.40 kg
Ready for Workshop, Worksite or Table-Cutting Use
Whether you’re cutting mild steel, stainless or aluminium, this machine offers fast performance, clean edges and minimal rework.
Why Buy This Model?
✔ Industrial-grade build quality
✔ Long warranty for peace of mind
✔ Handles very thick materials cleanly
✔ CNC-ready for professional automation
✔ Smart technology eliminates manual setup errors
This is a top-level professional plasma cutter for high-precision metal fabrication, perfect for workshops, engineering facilities, CNC cutting tables, manufacturing plants and serious home fabricators.
