• Brand: IRONWELD

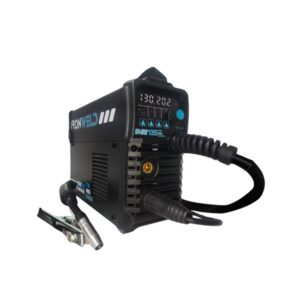

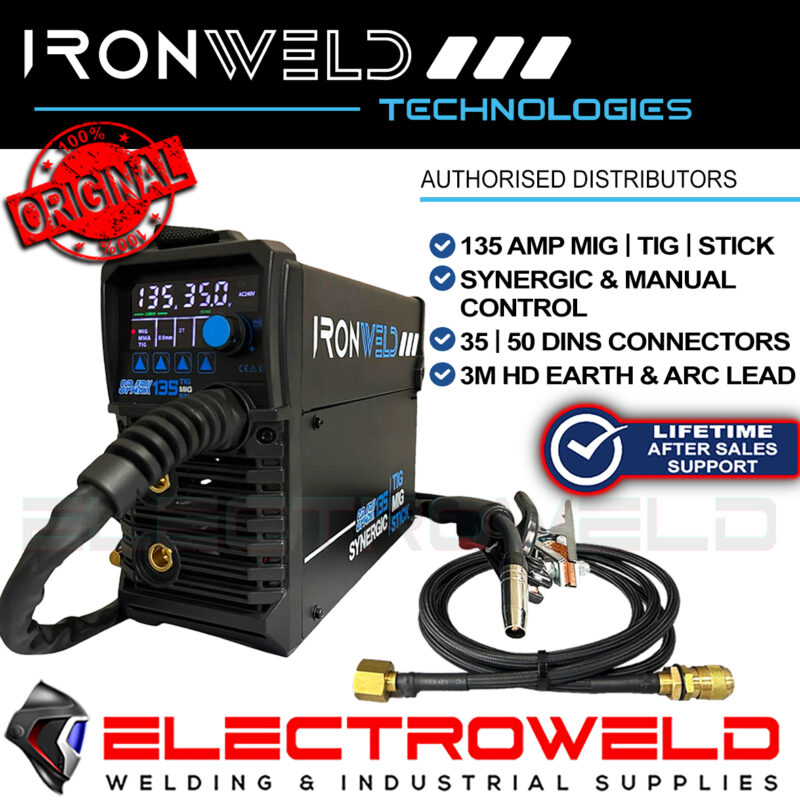

• Model: SPARK 135
• Product Type: Multi-Process Inverter Welder
• Supported Processes: MIG (Gas/Gasless), MMA (Stick), Lift TIG (TIG torch sold separately)
• Input Voltage: 240V AC, 50/60 Hz, Single Phase (10A Plug)
• Output Current Range: 30–135A
• Rated Duty Cycle:
  135A @ 20% (MIG)
  90A @ 60% (MIG)
• Open Circuit Voltage: Approx. 60V (for stable Stick arc starting)
• Wire Feed Speed: 2–15 m/min (digitally adjustable)
• Wire Diameter Range: 0.6 mm – 0.9 mm (MIG, Flux-Core)
• Electrode Range: Ø1.6 – 3.2 mm (Stick)
• Max Weld Thickness (Mild Steel): 1 mm – 6 mm
• Spool Capacity: Accepts 1 kg MIG wire rolls
• Drive Roller Dimensions: 30 × 10 mm (Square Groove)
• Display: Digital LED – Real-time Amperage & Wire Feed Speed
• Control Modes: Synergic (auto adjustment) & Manual (user override)
• Trigger Modes: 2T / 4T / Spot
• Cooling System: Fan-cooled, internal forced-air
• Insulation Class: Class H
• Protection Rating: IP21S
• Torch Compatibility:
  MIG: BZL 15 Type
  TIG: WP-17V (Lift TIG, optional)
• Dinse Connections: 35/50 DINSE sockets (for arc and earth leads)
• Input Lead Length: 3 metres
• Dimensions (L × W × H): 353 × 132 × 250 mm
• Weight: 5.2 kg
• Generator Compatibility: Min. 8.0 kVA recommended
• Certifications: CE, RoHS
• Warranty: 2 Years (Manufacturer Backed)

Features:

• Multi-Process Welding Power: The SPARK 135 supports MIG (gas & gasless), Stick (MMA), and Lift TIG welding, making it a versatile choice for fabrication, maintenance, and repair. Weld mild steel up to 6 mm thick with ease using either solid wire and gas or flux-cored wire in outdoor conditions.
• Synergic & Manual Modes: Whether you’re a beginner or a pro, the SPARK 135 adapts to your workflow. Synergic Mode automatically selects ideal parameters based on material and wire diameter. Manual Mode allows expert-level control of voltage and wire speed for fine-tuned performance.
• Precision Digital Control: A bright digital display shows real-time amperage and wire feed settings, making it easy to replicate consistent results across projects.
• Portability Without Compromise: Weighing just 5.2 kg, this compact unit is perfect for job sites and mobile welding tasks. Despite its lightweight, it offers reliable arc performance with robust construction.
• Plug-and-Weld Ready: Includes 2m MIG torch and 3m arc and earth leads with DINSE 35/50 connections. The quick-connect gas hose allows seamless switching between gas and gasless MIG welding.
• Trigger Function Options: Selectable 2T, 4T, and Spot functions give welders the flexibility for tack welds, long welds without trigger fatigue, or precision in thin sheet metal work.
• Built for Real-World Demands: Engineered with a fan-cooled body, H-class insulation, and impact-resistant housing, the SPARK 135 is designed to deliver consistent output and extended machine life.
• Similar welding machines include:
  Unimig Viper Multi 135 U11005k
  Cigweld Easyweld / Handyweld 130 W1200130 / W1201130
