• Brand: CIGWELD
• Part Number: 455FX02
• UPC: 9310574084919
• Power Supply (Voltage): 3-Phase 400V with 20A Fitted Plug
• Air Volume: 2,800 m³/h
• Motor Power: 3 kW
• Filter Grade: F9 (EN 779:2012)
• Filter Efficiency: > 99%
• Filter Surface Area: 15.6 m²
• Cleaning Method: Auto Filter Dusting (Compressed Air 0.4-0.6MPa)
• Noise Level: 72 dB (A)
• Dimensions: 680L x 680W x 1350H (mm) without 3m arms
• Weight: 178kg without arms

Features:

• FITTED plug. DUAL 360° Rotatable & Extending 3m Arms, Automatic Filter Dusting, Efficiency >99% in capturing welding fumes with F9 filter, Extra large filter for extended filter life of up to a year, Quick and easy filter replacement, Robust castors with lockable front wheels.

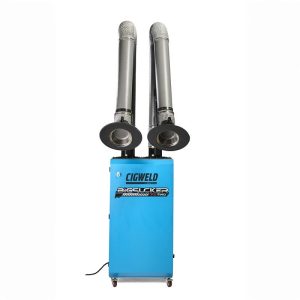

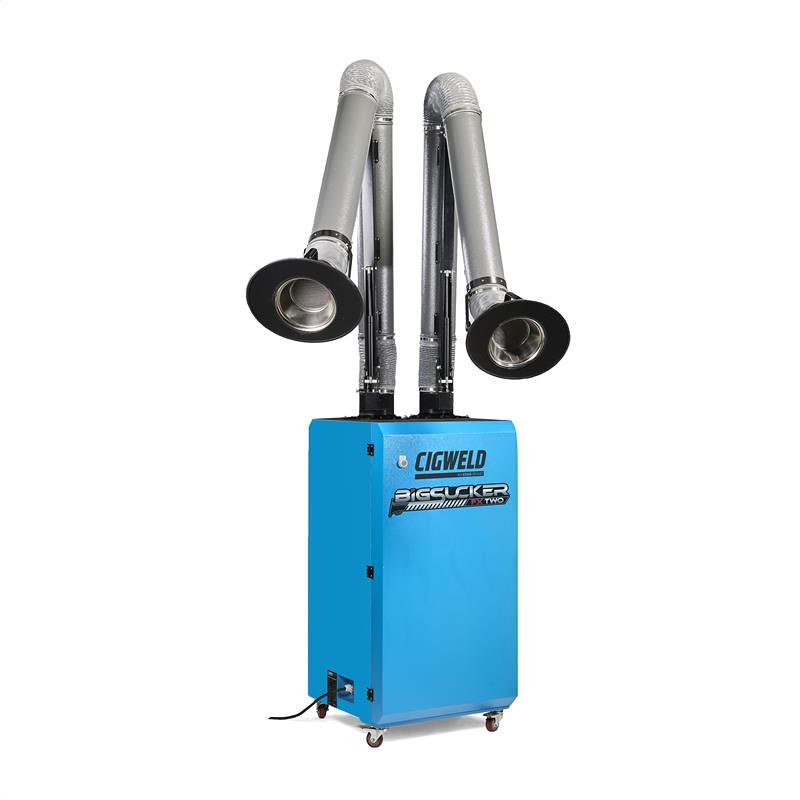

• The BigSucker FX2 is a high-performance Fume eXtraction filtration unit designed to effectively remove airborne pollutants such as welding fumes and dust, meeting F9 filtration class standards.
• It efficiently captures hazardous CMR (Carcinogenic, Mutagenic, Reprotoxic) substances produced during welding of high-alloyed steels or consumables containing more than 5% Chromium (Cr) and Nickel (Ni).
• Featuring a compact and mobile design, the BigSucker FX2 ensures user-friendly operation, high purification efficiency, and low noise levels.
• Widely applicable for all types of fumes generated from ARC Welding, inclusive of Plasma, Carbon Arc Gouging as well as Gas Cutting or Welding.
• With 2x adjustable 3m Arms you can cover 2 work areas at once from the 1 unit. Fitted with robust castors, easily maneuver the unit into the right position to get the most precise fume extraction possible, providing a much cleaner working environment.
• EASY TO USE, EASY TO SET
• Simple one-button ‘Push to Start’ system with 400V 20A FITTED plug. DUAL 360° Rotatable & Extending 3m Arms!, Automatic Filter Dusting.
• Efficiency >99% in capturing welding fumes with the F9 filter. Extra-large filter for extended filter life of up to a year.
• Quick and easy filter replacement, Robust castors with lockable front wheels.
• IDEAL FOR ALL WELDING & CUTTING APPLICATIONS BigSucker FX2 – Ultimate Fume Extraction The BigSucker FX2 is a cost-effective, compact, and mobile 400V (with 20A fitted plug) dual-armed fume extraction unit.
• Constructed from high-quality sheet metal, it features four heavy-duty lockable wheels for easy maneuverability.
• Engineered for welding and grinding applications, the BigSucker FX2 effectively captures and purifies airborne fumes and dust.
• Its 360-degree rotatable suction arm allows for precise positioning, easily adjusted and maneuvered using the handle on the hood.
• Equipped with EN 779:2012 certified filters, the BigSucker FX2 achieves a 99.8% efficiency rate in removing nanoparticles, ensuring compliance with indoor emission standards for a cleaner and safer work environment.
• Utilising a rigid center piece, the dual arm system gives you the reach and you need without the gradual drooping of the arms.
• Getting the most out of your BigSucker’s filtration is easy! Fitted with an automatic “dusting” system, you can simply fit a compressed air line to regularly dust the active filter surface, forcing build-up of debris to settle into the dust tray for removal.
• This prolongs the service life of your filter as well as reduces the frequency of filter inspection and manual cleaning. (See operating manual for further maintenance procedures).
• We stand behind the quality of our products, which is why the BigSucker FX2 comes with a 1-year warranty.
