| WHAT YOU GET: |
|---|
|

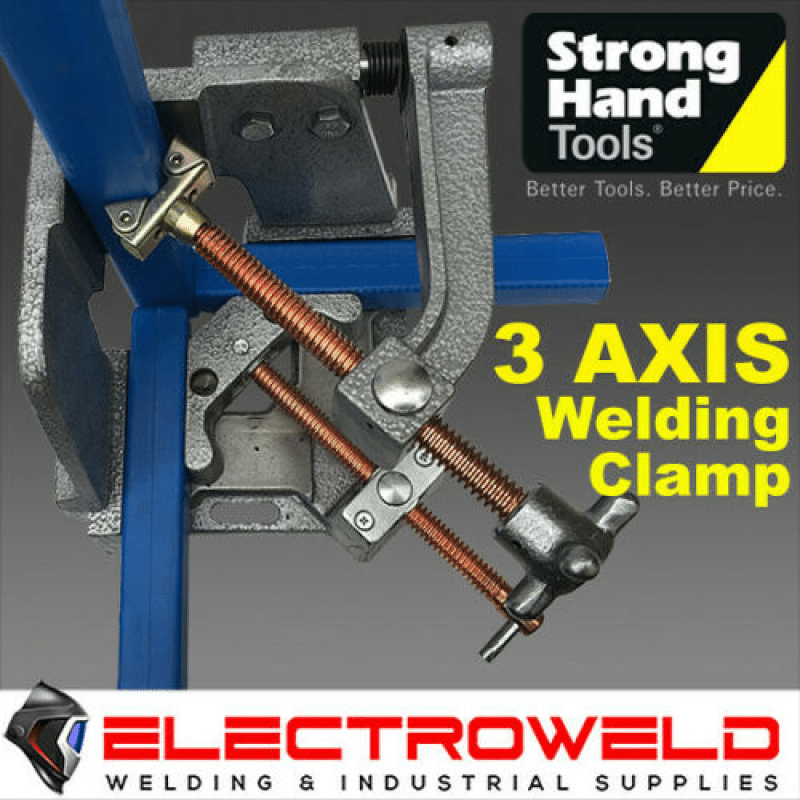

1 x STRONG HANDS 3-Axis Welding Angle Clamp
|
|
Choose Size: Small or Large
|
|

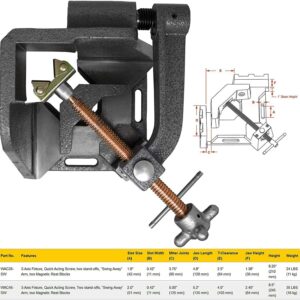

Small Dimensions:
216mm x 229mm x 203mm
Max Clamping Size = 95mm
|
|
Large Dimensions:
279mm x 279mm x 267mm
Max Clamping Size = 121mm
|
| FEATURES: |
|---|
| Holds a three-axis workpiece in position for welding and leaves clamped during cool down to minimise distortion due to contraction. |
| Constructed from heavy cast iron with a machined base and jaw to provide a firm hold. |
| This unit also has a 3rd axis clamp to hold an additional piece of material which swings away for easy part removal. |

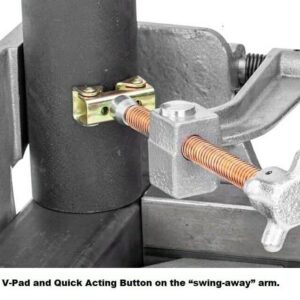

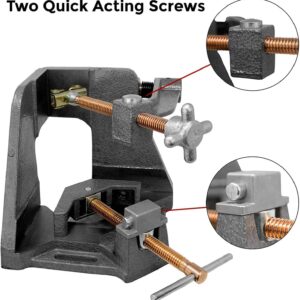

| Quick-acting screw for faster set-up. |
| Two magnetic rest blocks. |
| The spindle features copper-plated acme threads. |
| The jaw swivels and self-centres for holding different sizes of workpieces. |
| Two stand-offs. |
| Designed to be bench mounted or used freely around the shop, this clamp is extremely durable for years of use. |
| Machined outside faces – usable for upright joints. |
| Applications: Suitable for welding, fabrication, maintenance and construction. |
| Available in 3.75″ (95 mm) and 4.75″ (120 mm) capacities. Model WAC45-SW comes with a curved arm for greater workpiece clearance. |
