• Brand: Tecmen
• Part Number: 703500
• ADF Model: 100LW
• Viewing Area: 96×46.5mm
• Optical Class: 1 / 1 / 1 / 2
• Number of Sensors: 2
• Power On/Off: Automatic On/Off
• Dark State: 4-8/8-12
• Light State: Shade 2.0
• Switching Speed: 1/25000s, from Light to Dart
• Special Modes: GRIND / CUT / MIX / DARK
• Sensitivity Control: Low-High, button control
• Delay: 0.1-1.0s,button control
• UV/IR protection: Up to Shade DIN 16 at all times
• Operating Temp.: -10℃ to 55℃（14℉ to 131℉）
• Storing Temp.: -20℃ to 70℃（-4℉ to 158℉）
• Helmet Material: Special compound material
• Laser Protection: 1000-1100 D LB7+ IR LB8
• Optical Density(OD): OD 8@1000-1100nm,OD 10+@1064nm
• Approvals: EN207, EN ISO 16321,EN12941 TH3

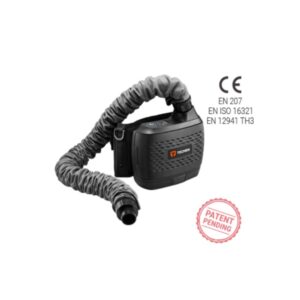

• FreFlow V1 blower unit:
• Manufacturer’s minimum design flow rate: 165 + lpm (5.8 + cfm)
• Low speed: 170 + lpm
• High speed: 210 + lpm
• Battery type: Rechargeable Li-ion battery
• Battery charge time: 1 hour
• Battery life: At least 500 charges
• Battery duration: 9 hours at 170+lpm; 5-6 hours at 210+lpm
• Weight: 1020g
• Filter efficiency: ＞99.997%
• Operating temp: -5℃ to 55℃
• Storing temp: -10℃ to 55℃
• Relative operating humidity (R.H.): ＜90%
• Relative storage humidity (R.H.): ＜85%
• Alarm: Audible, visual, vibrating

Features:

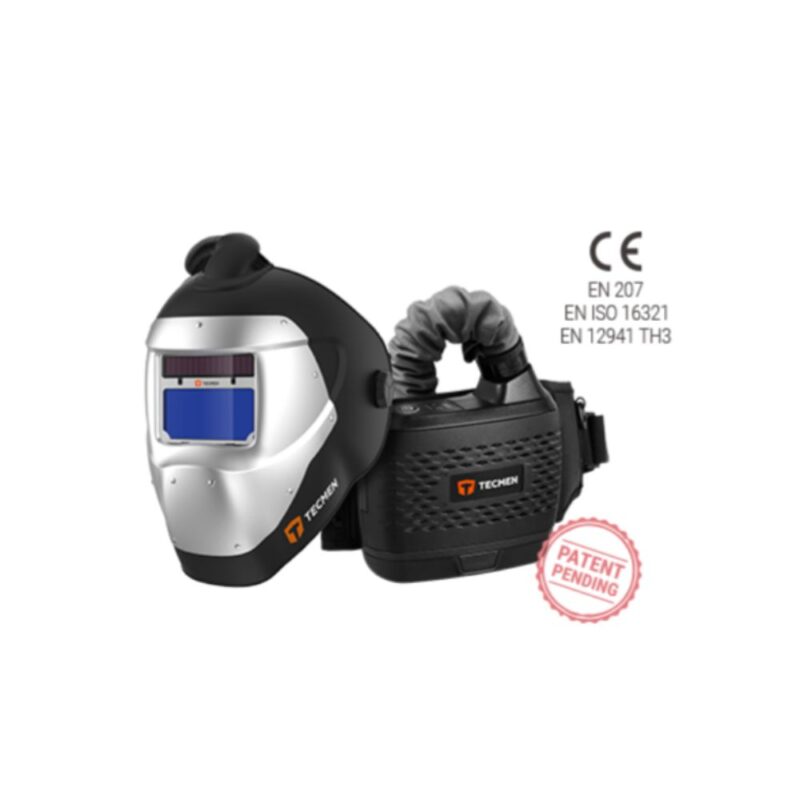

• Fire flow V1 PAPR With 100LW Respiratory Laser Welding Helmet Tecmen 703500
• All-in-one integrated PAPR system for laser welding/cutting/cleaning.
• The 100LW helmet provides full protection against direct laser exposure, as well as reflection, scattering, diffraction, and divergence from the laser beam.
• Meanwhile, the FreFlow V1 blower unit delivers a stable airflow to users with clean air.
• Designed to meet EN207 – OD10+@1064nm, the 100LW provides full protection to prevent eye burns, retinal damage, and other tissue damage.
• Provides excellent respiratory, eye, and face protection with an overall filtration efficiency of＞99.997%.
• Experience exceptional clarity and details with TECMEN’s Light State 2.0 variable shade laser lens. Superior vision quality leads to superior work quality.
• Shade number, delay, and sensitivity are all easily adjustable using our user-friendly panel.

What You Get:

1 x Tecmen PAPR Freflow V1 100LW Laser Welding Helmet, 703500
1 x FreFlow V1 Respiratory System
