• Brand: Tecmen
• Part Number: 703410
• Barcode: 9333424033370
• Classifications / Approvals:
• Helmet: EN 812:2012, EN166:2001
• Respirator: EN12941, AS/NS1716: 2012 – Freflow V1, Particle filter with class P3 inside

Face Shields Specifications

• Model: G10
• Weight: 660g
• Head Protection Level: EN 812:2012
• Suitable Working Environment: General bump cap bump protection requirements
• Eye & Face Standard: EN166:2001

Respirator Specifications

• Model: Fireflow v1
• Airflow Rate:
• Manufacturer’s minimum design flow rate: 165+lpm (5.8+cfm)
• Standard air flow: 170+lpm (6+cfm)
• Fast speed air flow: 210+lpm (7.4+cfm)
• Fast-charging
• Battery type: rechargeable Li-ion battery
• Standard battery duration: 170+lpm – 9 hours; 210+lpm – 6 hours
• Extended battery duration: 170+lpm – 15 hours; 210+lpm – 9 hours
• Standard battery charge time: 1 hour
• Mended battery charge time: 2 hours
• Battery life: ≥550 charges
• Filter
  Filter efficiency >99.997%
• Alarms: Visible, audible, and vibrating
• Temperature
  Operating temperature: -5°C to 55°C (23°F – 131°F)
  Storage temperature: -10°C to 55°C (14°F to 131°F}
• Relative Humidity (R.H.)
  Operating (R.H.): <90%
  Storage (R.H.): <90%
• Weight: 1020g (Blower unit + fast-charging standard battery)
• Respirator Approval: EN12941, AS/NS1716

Features:

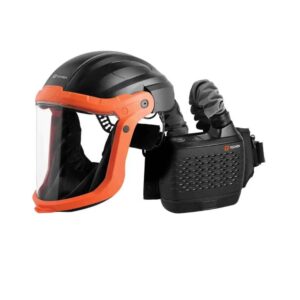

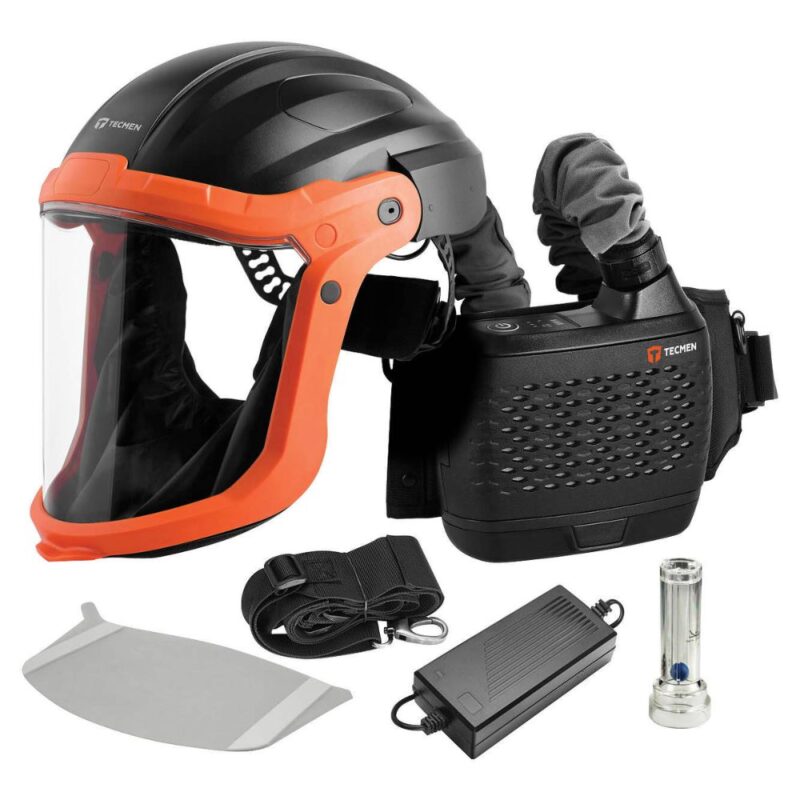

• TECMEN-powered air purifying face shield has a compact shape and a balanced center of gravity.
• Used with the FreFlow V1 respiratory system, the overall filtration efficiency is as high as 99.997%. It’s convenient, comfortable, and easy to adjust, providing users with comprehensive protection for the respiratory, eye, face, and head.
• TECMEN G series face shields are equipped with head protection to protect the head from injury. Provides comprehensive head protection by anti-splash metal melt, and anti-puncture sprint, and is not easy to deform.
• Protect against general bumps and small splashing items. Robust and comfortable. Approved by EN 812.
• Eye/face/respiratory protection.

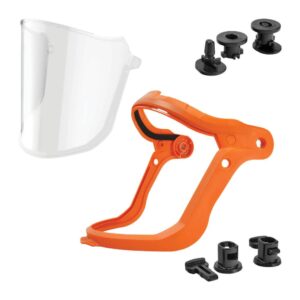

• Full Face Clear Lens.
• Bump Resistance Head Protection.
• Vibration Dispersal Buffer.
• Anti-collision Upgrade.
• Comfortable Adjustable Headgear.
• Class-leading P3 filter.

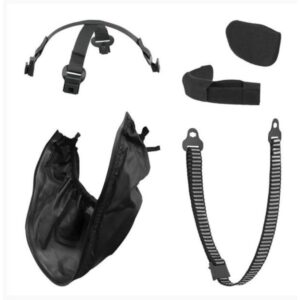

• Include a shoulder strap and a carry bag.
• Flip-up design: The shield can be flipped up when unnecessary.
• Built-in wind direction adjustment: Air flow direction can be changed with a built-in wind direction adjuster for optimum comfort.
• Adjustable headband: The top of the headgear is adjustable in 6 gears, and the rear is infinitely adjustable to accommodate different head circumferences.
• Skin-friendly sealing head covering: The fabric has good water resistance, flame retardancy, and good sealing performance, ensuring a micro-positive pressure state in the face shield.

Applications

• Metallurgy / Grinding
• Chemical Industry
• Medicine
• Laboratory/ Research Institute
• Nuclear Power
• Public Health
• Rail Transit
• Automobile Manufacturing
• Shipbuilding
• Hazardous Chemical Production
