• Brand: UNIMIG
• Part Number: U11130
• Primary Input Voltage:
  240V Single-Phase
  415V Three-Phase
• Supply Plug: 32A
• Ieff (A):
  14.2 (Single-Phase)
  12.4 (Three-Phase)
• Imax (A):
  36.7A (Single-Phase)
  16.0A (Three-Phase)
  No Load Voltage (V): 70
  No Load Voltage with VRD Active (V): 9.5
• Protection Class: IP23S
• Insulation Class: H
• Minimum Generator (kVA):
  13 (Single-Phase)
  23 (Three-Phase)
• Dinse Connector: 35/50
• Standard: AS 60974.1
• Warranty: 5 Years
• Suitable Materials:
• MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
• MMA: Mild Steel, Stainless Steel, Cast Iron
• MIG Current Range:
  20-250A (Single-Phase)
  20-300 (Three-Phase)
• MIG Duty Cycle @ 40°C:
  15% @ 250A (Single-Phase)
  60% @ 125A (Single-Phase)
  100% @ 97A (Single-Phase)
  60% @ 300A (Three-Phase)
  100% @ 232A (Three-Phase)
• MIG Wire Sizes: 0.6-1.2mm
• MIG Wire Spool Sizes:
  5kg (D200)
  15kg (D300)
• MIG Welding Thickness:
  0.6-20mm (Single Pass)
  >20mm (Multi Pass)
• Drive Roller Size: 30/22
• MMA Current Range:
  20-200A (Single-Phase)
  20-300A (Three-Phase)
• MMA Duty Cycle @ 40°C:
  20% @ 200A (Single-Phase)
  60% @ 115A (Single-Phase)
  100% @ 89A (Single-Phase)
  60% @ 300A (Three-Phase)
  100% @ 232A (Three-Phase)
• MMA Electrode Range: 1.6-4.0mm
• MMA Welding Thickness Range:
  2-10mm (Single Pass)
  >10mm (Multi Pass)

Features:

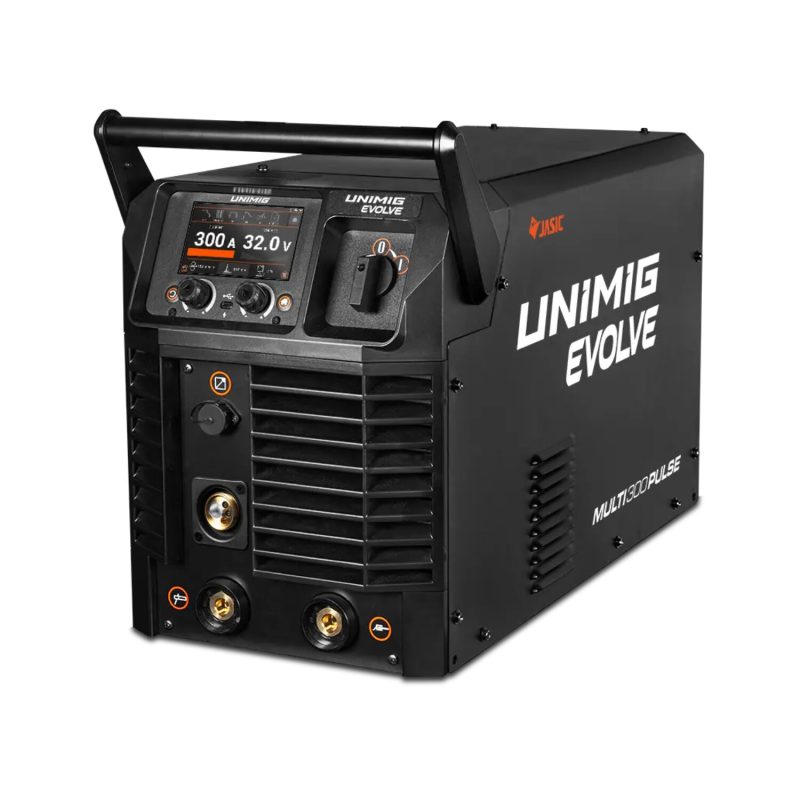

• Packed full of revolutionary technologies, futureproof your workshop with our all-new EVOLVE MULTI 300 PULSE.
• Complete with single and double pulse MIG programs.
• Get a full range of additional modular accessories, including AC/DC TIG and Separate Wire Feeder unit.
• No spatter. Less heat. Same penetration. Streamline your welds with the single and double pulse functions.
• A single pulse weld alternates between a peak and base current, which works to minimise the amount of heat input without compromising on any of the penetration. The addition of a base current and reduction in heat means it’s perfect for softer materials like aluminium.
• Pulse welding is also done by spray transfer, eliminating spatter and cutting your post-weld clean-up time.
• A double pulse weld alternates between a peak current and two base currents, reducing the heat input of the weld even further than single pulse, while still maintaining all of the benefits.
• Because of the faster freezing puddle, your double pulse welds come out looking just like a stack of dimes. You get the aesthetics of a TIG weld with all the speed of spray MIG.
• Getting set up for a weld has never been faster with over 100 synergic programs. Simply select your metal type, wire size, gas type and material thickness, and the machine does the rest. It’ll pick the optimal settings for your weld.
• Futureproof your purchase with the EVOLVE MULTI 300 PULSE, with the option to add additional modules as you need them. These optional modules include a Separate Wire Feeder (SWF) module, an AC/DC TIG module and a water cooler module for all your future needs.

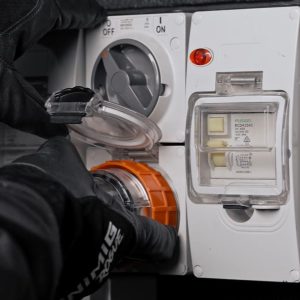

• Experience unmatched flexibility with dual voltage power sense. Connect the three-phase to singlephase plug adapter on and switch between 32A three-phase and 15A single-phase plugs as you need. When in single-phase, the machines output is limited to a maximum of 250A.
• Experience unmatched flexibility with dual voltage power sense. Connect the three-phase to singlephase plug adapter on and switch between 32A three-phase and 15A single-phase plugs as you need. When in single-phase, the machines output is limited to a maximum of 250A.
• End your welds as strong as they started. Crater Fill ramps your welding current and voltage down at the end of a weld, filling it in at a lower amperage, eliminating craters and pinholes.
• Get superior life out of every torch consumable. Designed for maximum performance, you’ll get 6x longer life with Arc Torchology consumables.
• The Arc Torchology contact tips lasted up to 6x longer, withstanding the maximum amperage for 30 hours vs the Binzel 501D’s 5 hours.
• The Arc Torchology gas nozzles lasted up to 3x longer, withstanding the maximum amperage for 75 hours vs the Binzel 501D’s 25 hours.
• The Arc Torchology tip adapters lasted up to 5x longer, withstanding the maximum amperage for 250 hours vs the Binzel 501D’s 50 hours.
• The Arc Torchology gas nozzles run 75% cooler in a 15-minute period, with a maximum temperature of 200°C vs the competitor’s 350°C.
• Spend less time cleaning your consumables and have them last longer with 90% less spatter adhesion.
  The Arc Torchology contact tips had 90% less spatter adhesion on the tip’s face, with only 9% spatter vs the Binzel 501D’s 100%.
• Achieve smooth and steady wire feeding, especially when using softer wires such as aluminium. With a ‘Pull’ motor built into the torch, the wire can be fed over a greater distance, granting you the freedom to move and manoeuvre with ease while MIG welding.
• Get the most out of your machine. The PFC maximises the electrical efficiency of the machine and automatically compensates for any voltage fluctuations, so you get more output power and the internal components last longer.
• Not every inverter is made equal. With UNIMIG’s ever-evolving, state-of-the-art IGBT Inverter technology, you get better performance, better efficiency, and better reliability.
• The most consistent and smoothest wire-feeding experience there is. With a four geared wire drive unit, there’s more power pushing the wire, improving the wire-feeding, especially with longer torches.
• Rated IP23S, so it’s protected from touch by fingers and objects greater than 12mm, and water spray less than 60° from vertical while still.
