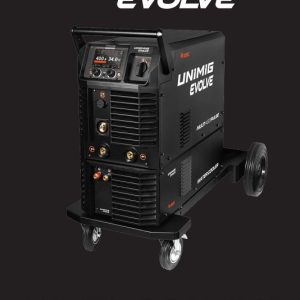

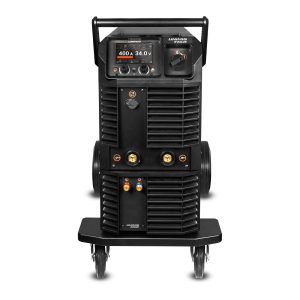

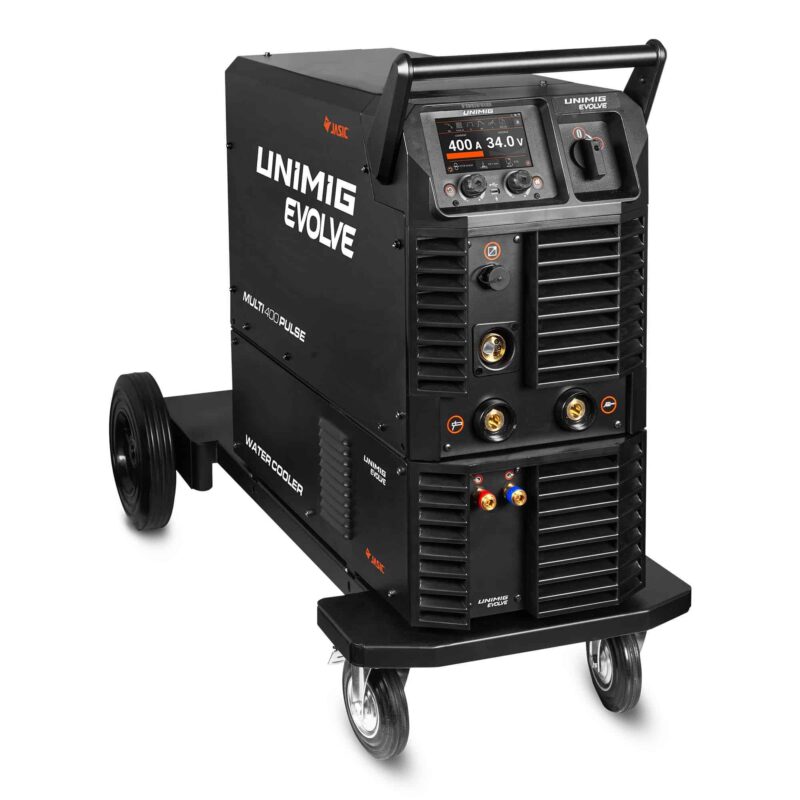

| Packed full of revolutionary technologies, futureproof your workshop with our all-new EVOLVE MULTI 400 PULSE. |
| Complete with single and double pulse MIG programs. Get a full range of additional modular accessories, including AC/DC TIG and Separate Wire Feeder unit. |
| Comes packaged with a water cooler and trolley. Futureproof your purchase with the EVOLVE MULTI 400, with the option to add additional modules as you need them. |
| These optional modules include a Separate Wire Feeder (SWF) module, an AC/DC TIG module and a Plasma Cutting module for all your future needs. |
| Experience unmatched flexibility with dual voltage power sense. Connect the three-phase to singlephase plug adapter on and switch between 32A three-phase and 15A single-phase plugs as you need. When in single-phase, the machines output is limited to a maximum of 250A. |
| A single pulse weld alternates between a peak and base current, which works to minimise the amount of heat input without compromising on any of the penetration. |
| The addition of a base current and reduction in heat means it’s perfect for softer materials like aluminium. Pulse welding is also done by spray transfer, eliminating spatter and cutting your post-weld clean-up time. |
| A double pulse weld alternates between a peak current and two base currents, reducing the heat input of the weld even further than single pulse, while still maintaining all of the benefits. |
| Because of the faster freezing puddle, your double pulse welds come out looking just like a stack of dimes. You get the aesthetics of a TIG weld with all the speed of spray MIG. |
| Navigation has never been easier. With the 5” LCD touchscreen, selecting your weld parameters or changing your settings mid-weld is effortless. |
| Prefer physical buttons? Use the traditional control knobs to make all of your adjustments. |
| Get the most out of your machine. The PFC maximises the electrical efficiency of the machine and automatically compensates for any voltage fluctuations, so you get more output power and the internal components last longer. |
| Rated IP23S, so it’s protected from touch by fingers and objects greater than 12mm, and water spray less than 60° from vertical while still. |
| Our digital MIG torch allows you to adjust your settings on the fly. Change the amps, current and voltage at the touch of a torch button. |
| Getting set up for a weld has never been faster with over 100 synergic programs. Simply select your metal type, wire size, gas type and material thickness, and the machine does the rest. It’ll pick the optimal settings for your weld. |
| The most consistent and smoothest wire-feeding experience there is. With a four geared wire drive unit, there’s more power pushing the wire, improving the wire-feeding, especially with longer torches. |
| Get the smoothest arc start possible. The Hot Start function gives a boost of current at the beginning of your weld, eliminating any issues with starting on cold metal, letting you weld on thicker materials and making welding aluminium even easier. |
| End your welds as strong as they started. Crater Fill ramps your welding current and voltage down at the end of a weld, filling it in at a lower amperage, eliminating craters and pinholes. |
| Get absolute precision on your settings. The adjustable arc length allows you to increase or decrease the preselected voltage while in synergic and pulse MIG modes. |
| Achieve smooth and steady wire feeding, especially when using softer wires such as aluminium. With a ‘Pull’ motor built into the torch, the wire can be fed over a greater distance, granting you the freedom to move and manoeuvre with ease while MIG welding |
