• Brand: Unimig
• Part Number: KUMJR250SWF
• Primary Input Voltage: 240v Single-Phase
• Supply Plug: No Plug Supplied (32 Amp Recommended)
• Rated Input Power (Kva): 12.2
• Ieff (A): 28.0
• Rated Output: 30a/15.5v – 250a/26.5v
• No Load Voltage: 56.5 V
• Protection Class: IP21S
• Insulation Class: F
• Power Factor: 0.72
• Minimum Generator: 13.0 Kva
• Dinse Connector: 35/50
• Suitable Material: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Aluminium, Copper
• Mig Specifications:
• Mig Welding Current Range: 30-250a
• Mig Duty Cycle @ 40°C: 35% @ 250a
• Mig Wire Size Range: 0.6-1.0mm
• Mig Wire Spool Size: 5kg / 15kg
• Mig Welding Thickness Range: 1-12mm
• Drive Roller Size: 30/22 (X2)
• Tig Specifications:
• Tig Function Type: Dc Lift Arc
• Tig Welding Current Range: 10-225a
• Tig Duty Cycle @ 40°C: 35% @ 225a
• Tig Welding Thickness Range: 1-10mm
• Stick Specifications:
• Stick Welding Current Range: 10-250a
• Stick Duty Cycle @ 40°C: 35% @ 250a
• Stick Electrode Range: 2.5-4.0mm
• Stick Welding Thickness Range: 2-12mm
• Dimensions: 595x280x440mm
• Weight: 40.6kg
• SWF Dimensions: 630x235x420mm
• SWF Weight: 14kg
• SWF Interlocking Cable Length: 10m
• Wire Drive: Seperate 4 Geared
• VRD: Yes
• Spool Gun Connection: Yes
• Push / Pull Gun Connection: Yes
• Burnback Adjustment: Yes
• Wire Inch: Yes
• Inductance Control: Yes
• Thermal Overload Protection: Over Temperature Warning
• Standard: AS/NZ60974-1
• Warranty: 3 Years

Features:

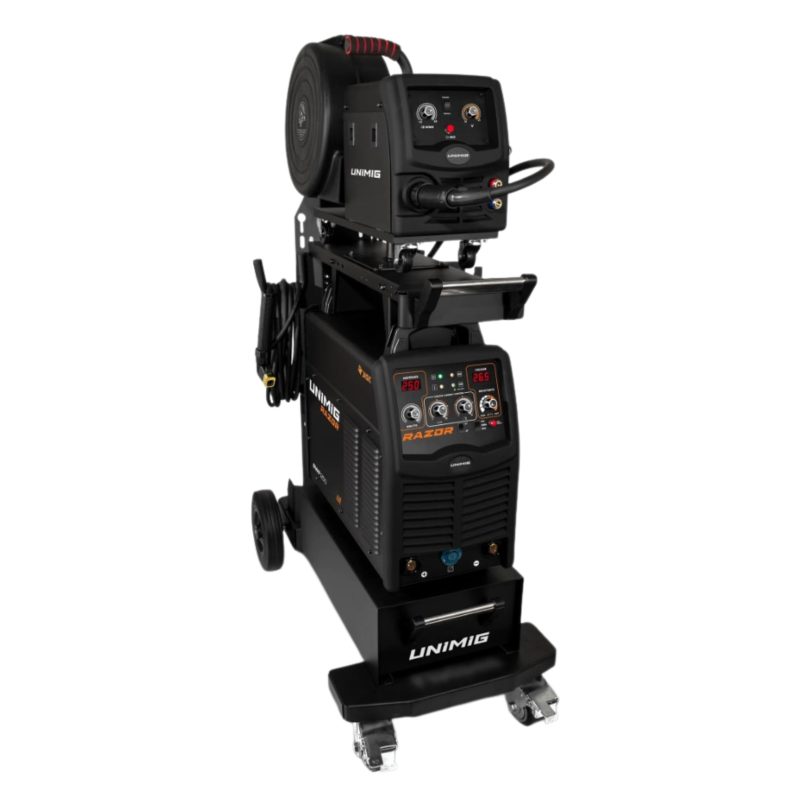

• The RAZOR™ 250 SWF is a powerful workshop machine with MIG, TIG and STICK welding functions.
  This machine features the added flexibility of a Separate Wire Feeder unit, allowing up to 10m of extra manoeuvrability in the workshop.
• Built with solid construction, this machine is designed to withstand the toughest conditions.
  The RAZOR™ 250 SWF is also Spool Gun and Push-Pull Gun ready, providing MIG welding capabilities across every spool size.
  The RAZOR™ SWF series is designed for superior performance and manoeuvrability, offering the highest quality of welds from UNIMIG’s range.
• A separate wire feeder unit lets you remove the wire feeder from the power source up to a distance of 10m.
• This is perfect for workshops when moving a complete machine isn’t an option.
• This three in one machine, lets you perform MIG, TIG and STICK welding all on one machine.
• There is also support for both gas shielded MIG and gasless MIG wire. There is no need to swap between machines, saving you time and setup.

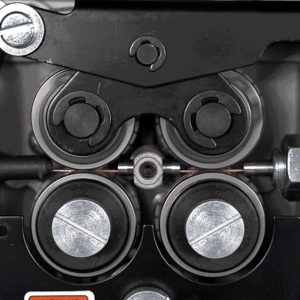

• This machine features a four geared roller drive unit, providing the most consistent and smoothest wire feed. This also assists with using longer MIG Torches.
• This machine is Spool Gun ready, so you have the option of attaching a Spool Gun to run softer core wires such as Aluminium MIG wire.
• The advantage of the Spool Gun is that you do not need to change the setup of your existing torch or drive roller.
• The spool gun lets you quickly switch over to get the job done with no downtime.
• Push-Pull Guns provide the smoothest wire speed, especially when MIG welding Aluminium.
• The ‘Pull’ motor in the torch allows the wire to be fed over a much longer distance, giving you more flexibility to move and manoeuvre whilst MIG welding.
• Offering nothing but the best, this machine has been designed to offer the highest quality welds available from UNIMIG.
• With superior welding technology, no corners have been cut to make this machine the most powerful in its class.
