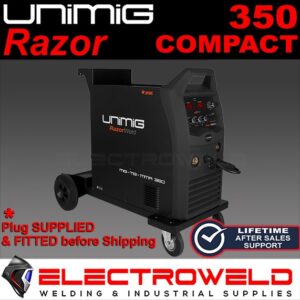

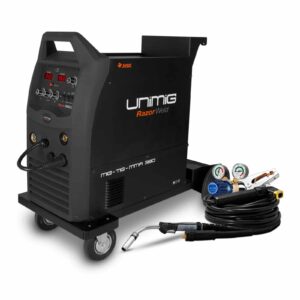

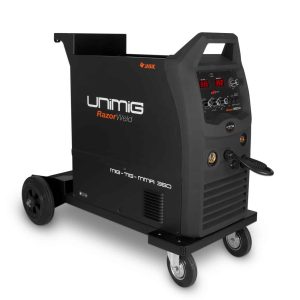

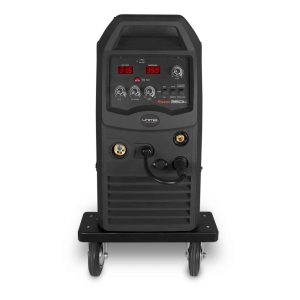

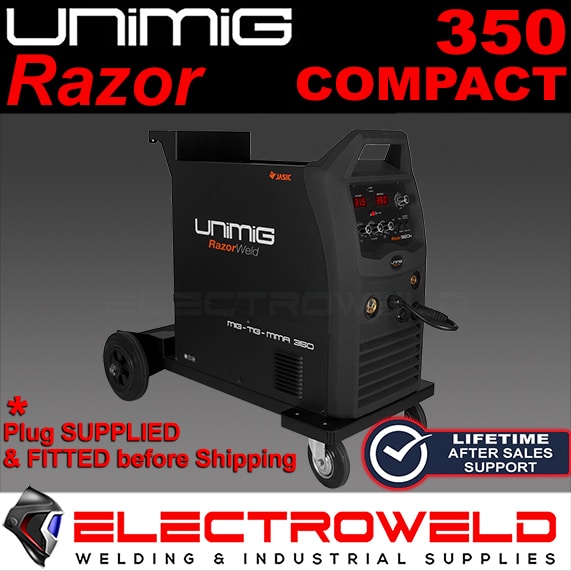

UNIMIG 350 MIG / TIG / MMA COMPACT

The UNIMIG 350K is an inverter-based multifunction MIG welding machine with added MMA and TIG functions. The MIG function allows you to weld with both Gas Shielded and Gasless wire applications. Easy stepless adjustment of voltage and wire feed make for easy setting of welding parameters giving excellent, professional welding results.

Wire inch gives easy feeding of the wire during set up without gas wastage and the Burn Back adjustment leaves the wire out ready for the next weld. An additional feature is the Spoolgun ready function that allows the simple connection of the PLSP240 Spoolgun for the use of thin or softer wires that don’t have the column strength to feed through standard MIG torches, such as an aluminium wire. Added MMA welding capability delivers easy and high-quality welding using electrodes, including cast Iron, stainless and low hydrogen.

Connection of the 26V TIG torch provides quality DC TIG with Lift Arc start for welding of steel, stainless steel and copper. The machine is industrial rated and of solid construction, large industrial wheels allow easy and smooth manoeuvrability. Ideal for general engineers, maintenance workshops, rural workshops and tafe colleges. Designed and built to our specifications. Certified to – AS/NZ60974-1

THE ULTIMATE COMPACT

The UNIMIG 350K is the ideal machine for medium to heavy industrial work. The machine is three-phase 415V and also portable and perfect for workshop use. The MIG function provides superb arc characteristics when using either Gas Shielded or Gasless Wires. The machine features an adjustable Burnback control and easy to use panel layout to get your job done faster.

The machine is also a very capable MMA (Stick) welder capable of running most MMA Electrodes up to 4.0mm. An added feature of Hot Start helps when striking an Arc to minimise the Electrode sticking to the workpiece.

With the machine being Spool Gun ready a UNIMIG Spool Gun is available if you want to run Aluminium wire without the changeover in the torch, liner and drive roller. The Spool Gun is an ideal way to use softer wires and not have to purchase larger spools of wire for small jobs.

The UNIMIG 350K is also a DC TIG welder with a Lift Arc function. DC TIG will allow welding of materials such as Mild and Stainless Steel as well as Bronze, Copper and Chrome Moly’s.

*Always refer to the recommended polarity setup as stated on the electrode packaging.

Features

• Latest IGBT inverter technology
• MIG/MAG with Gas and Gasless wire function
• MMA (Stick weld ready)
• DC TIG welding with Lift Arc Start
• Digital Amp – Volt Meters
• Industrial application
• Solid metal case construction
• Internal 4 roll geared wire feeder
• 5Kg to 15Kg Spools
• VRD (Voltage Reduction Device)
• Euro style MIG torch connection
• IP21S rating for environmental/safety protection
• Tolerant to the variable power supply
• Stepless voltage and wire feed control
• Excellent MIG welding with CO2 gas & mixed gas
• Variable Inductance control
• Excellent arc stability
• Spool Gun Connection
• 3 Years Warranty
