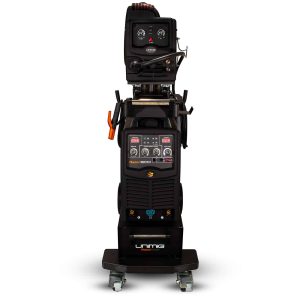

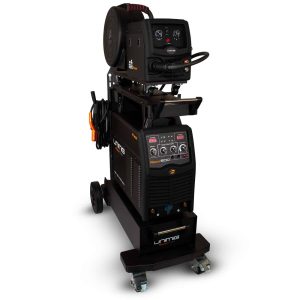

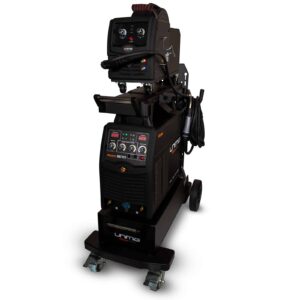

UNIMIG RAZORWELD 500 SWF MIG / TIG / MMA

The MIG500SWF is an inverter-based MIG welding machine with added MMA and TIG functions. This is an industrial machine equipped with a separate 4 roll gear driven wire feeder and 10m interconnecting cables. The MIG function allows you to weld with Solid wires, Fluxcored Gas and Gasless wires. Adjustment of Voltage & Wire Feed at the feeder makes for easy setting of welding parameters and gives the convenience of remote adjustment from the power source. Crater current setting delivers perfect finishing of the weld, the electronic Inductance offers fine adjustment of the arc characteristic and burn back adjustment leaves the wire out ready for the next weld. Wire Inch and Gas Check provides set up of wire feed and gas setting without wastage of wire or gas. Added MMA welding capability delivers easy and high-quality welding using electrodes, including cast Iron, stainless and low hydrogen. Connection of the 26V TIG torch provides quality lift arc DC TIG welding of steel, stainless steel and copper.  Ideal for heavy and structural welding applications, general engineers, maintenance workshops, and rural workshops.

Designed and built to our specifications. Certified to – AS/NZ60974-1

MULTI-PROCESS WELDING

This three-in-one machine, lets you perform MIG, TIG and STICK welding all on one machine. There is also support for both gas-shielded MIG and gasless MIG wire. There is no need to swap between machines, saving you time and setup.

FOUR GEARED WIRE DRIVE

This machine features a four-geared roller drive unit, providing the most consistent and smoothest wire feed. This also assists with using longer MIG Torches.

PUSH-PULL READY

Push-Pull Guns provide the smoothest wire speed, especially when MIG welding Aluminium. The ‘Pull’ motor in the torch allows the wire to be fed over a much longer distance, giving you more flexibility to move and manoeuvre whilst MIG welding.

Features:

• Latest IGBT inverter technology
• MIG/MAG with Gas and Gasless wire function
• VRD (Voltage Reduction Device)
• MMA
• DC TIG welding with lift arc start
• Stepless Voltage & Wire Speed control at wire feeder
• Variable Inductance
• Burn Back Control
• 2T/4T trigger function
• Adjustable Crater Current function
• Gas Check
• Wire Inch
• Digital Volt / Amp meters
• Geared 4 roll wire feeder
• Euro style MIG torch connection
• 10m interconnecting cables
• Heavy duty trolley with tool draw
• Push Pull Ready

Package Contains:

• 1 x Razor MIG 500 SWF Power Source
• 1 x SWF Wire Feeder
• 1 x TWC5 15FTE MIG Torch
• 1 x 10 metre Arc Welding lead set including twist lock electrode holder & 500 Amp earth clamp
• 1 x 10-metre Interconnecting cables
• 1 x MIG Trolley
• 1 x UNIMIG Twin Gauge Argon Regulator
• 1 x 2 metre Gas Hose with connections
• 1 x Instruction Manual
