• Brand: Unimig
• Part Number: U11023
• Barcode: 9333521056388
• Primary Input Voltage: 415V Three-Phase
• Supply Plug: Unplugged (20A Recommended)
• Ieff (A): 13.0
• Imax (A): 19.0
• Air Flow Draw (L/min): 120-150
• Air Flow Pressure:
  58-73 psi
  4-5 bar
  0.4-0.5 MPa
• Open Circuit Voltage (OCV): 325
• Protection Class: IP23S
• Insulation Class: H
• Minimum Generator (kVA): 18.0
• Dinse Connector: 35/50
• Standard: AS 60974.1
• Warranty: 5 Years
• Weight (kg): 22.00
• Dimensions: 626 x 230 x 416mm
• Plasma Cut Current Range: 20-80A
• Plasma Cut Duty Cycle @ 40°C:
  40% @ 80A
  60% @ 66A
  100% @ 51A
• Cutting Thicknesses:
• Mild Steel Cut Thickness: 25mm
• Mild Steel Severance Thickness: 35mm
• Stainless Steel Cut Thickness: 22mm
• Stainless Steel Severance Thickness: 30mm
• Aluminium Cut Thickness: 22mm
• Aluminium Severance Thickness: 30mm

Features:

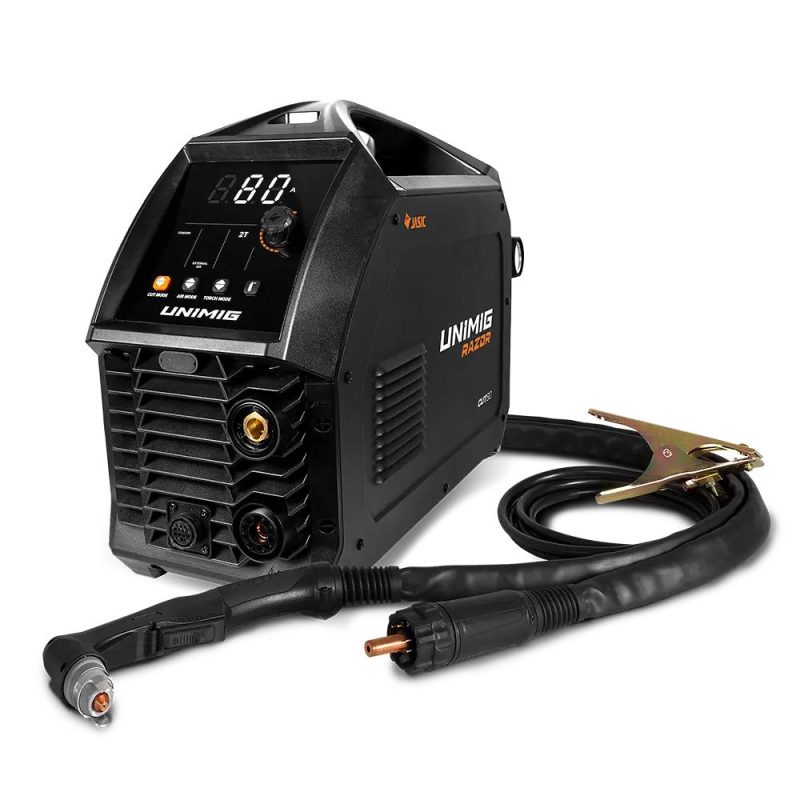

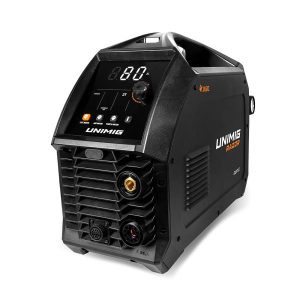

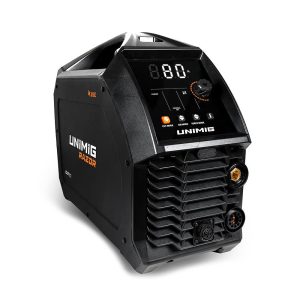

• Get all the power you need with this professional-grade plasma cutter, perfect for the worksite or workshop.
• 30mm clean cuts and 35mm cutting capacity. The CNC connection means you can use this machine for every kind of plasma application.
• Cut anything with the perforated cut mode. Get a 25mm clean cut and a severance cut of 35mm on mild steel.

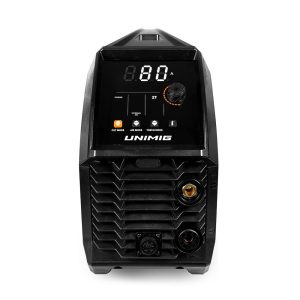

• Cut through a solid metal plate on any material. This next-generation interface panel is bright and easy to read in any environment.
• Not every inverter is made equal. With UNIMIG’s ever-evolving, state-of-the-art IGBT Inverter technology, you get better performance, better efficiency, and better reliability.
• Not just a handheld plasma cutter, the CNC connection lets you plug in a CNC torch and run it on a CNC table, so you can choose how you use it.
• Start your arc on any surface: painted, greasy, or rusted, or don’t start on the surface at all. A pilot arc start will ignite the arc even from a short distance away, giving you better control and longer-lasting consumables.
• Smart Fan diminishes noise, saves power, helps reduce energy costs, and minimises the number of contaminants being pulled through the machine.
• Rated IP23S, so it’s protected from touch by fingers and objects greater than 12mm, and water spray less than 60° from vertical while still.
• Our new RAZOR CUT 80 Air Compressor makes light-duty cutting and DIY projects effortless. Designed with a sleek, compact build, it’s perfect for workshops and garages where space is limited or portability is essential.
• Check that your plasma cutter is running at peak performance. The air test ensures that your compressor is connected and that the air pressure is dialled in to produce the best cuts.
• Take it anywhere. Connect the machine to a generator and use it wherever, whenever you need it. We recommend 18kVA for this machine.
