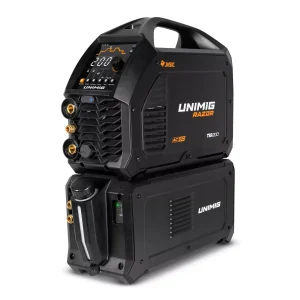

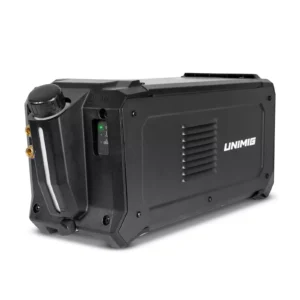

The RAZOR TIG 200 AC/DC Water Cooler is the perfect accessory to maximise your TIG welding performance, especially at high amperages. When combined with the T3W Water-Cooled TIG Torch, which uses our Bi-Flow™ Technology – high capacity cooling chambers that remove excessive heat at the source – you get greater performance from the TIG torch. Pour coolant into the inlet until it reaches the ‘FULL’ marker on the coolant viewing window. The maximum coolant capacity of this water cooler is 3.5L. Do not run water cooler if the coolant level is below ‘EMPTY’.
$1,388.00
| WHAT YOU GET: |
|---|
| 1 x Unimig RAZOR TIG 200 AC/DC Water Cooler, U12004 |
| FEATURES: |
|---|
| The perfect accessory to maximise your TIG welding performance, especially at high amperages. |
| When combined with the T3W Water-Cooled TIG Torch, which uses our Bi-Flow™ Technology – high capacity cooling chambers that remove excessive heat at the source – you get greater performance from the TIG torch. |
| Using The Water Cooler: |
| Unscrew the screw cap for coolant container. |
| Pour coolant into the inlet until it reaches the ‘FULL’ marker on the coolant viewing window. The maximum coolant capacity of this water cooler is 3.5L. Do not run water cooler if the coolant level is below ‘EMPTY’. |
| Fasten the screw cap for coolant container. |
| Connect the red coolant return cable into the red coolant connection. Connect the blue coolant flow cable into the blue coolant connection. |
| Connect the power plug into the water cooler power outlet on the back of the RAZOR TIG 200 AC/DC. |
| Once the machine is powered on and set up for welding, push the water cooler button on the RAZOR TIG 200 AC/DC to turn the water cooler unit ON. |
