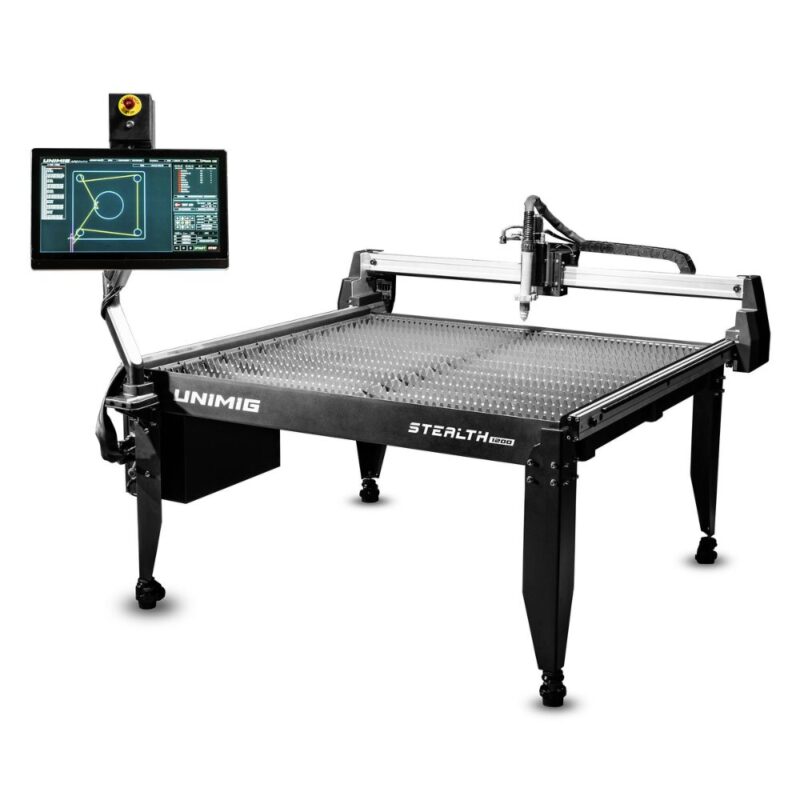

UNIMIG Stealth 1200 CNC Plasma Cutting Table 1.2m Water Bed Touchscreen, U11097

The Stealth 1200 CNC Table meets all your cutting needs on a compact 1.2×1.2m table. Automatic Torch Height Control continuously maintains the optimal height for the best quality across the whole cut. The touchscreen computer comes with our in-house, custom-designed UNIMIG Arc Path CNC Control software. A true 1.2×1.2m half-sheet cut size. The gantry will travel 1.23 by 1.22 metres on the Stealth 1200, so you can guarantee you’ll get the full size of the table to cut across Built-In Water Bed With Slat Slots. The built-in water bed on the Stealth CNC table works to absorb fumes and sparks, giving you a cleaner workspace. With laser welded joints, the water bed is completely leak-free. It comes with two ball valve controlled drainage points with standard hose fittings for quick and easy draining.

$10,299.00

free shipping banner 3



Brand: UNIMIG
Part Number: U11097
Primary Input Voltage: 240V Single Phase
Supply Plug: 10A
Table Dimensions: 170x180x115cm
Cut dimensions: 1.23m x 1.22m
Table Weight: 200kg
Max Table Load: 135kg
Water Bed Capacity: 170L
Table Input Voltage: 240v 10a
Axis Type: 3 Axis (X/Y/Z)
Height Control: Automatic & Manual
Axis Limiter: Physical X/Y/Z Proximity Sensor Switches
Fume & Spark Management: Built-In Water Bed With Integrated Slat Slots
Maximum Jog Speed: 8,000 mm/m
CNC Controller: Purpose-Built Multi-Tool Controller
Control Interface: Windows 10 Pc With 21” Touch Screen
Software: Unimig Arc Path CNC Control Software + CAM/Nesting Software Included
Warranty: 2 Years

Features:

  • The Stealth 1200 CNC Table meets all your cutting needs on a compact 1.2×1.2m table.
    Automatic Torch Height Control continuously maintains the optimal height for the best quality across the whole cut.
  • The touchscreen computer comes with our in-house, custom-designed UNIMIG Arc Path CNC Control software.
  • A true 1.2×1.2m half-sheet cut size.
  • The gantry will travel 1.23 by 1.22 metres on the Stealth 1200, so you can guarantee you’ll get the full size of the table to cut across.
  • Built-In Water Bed With Slat Slots.
  • The built-in water bed on the Stealth CNC table works to absorb fumes and sparks, giving you a cleaner workspace.
  • With laser welded joints, the water bed is completely leak-free. It comes with two ball valve controlled drainage points with standard hose fittings for quick and easy draining.
  • Additionally, the tables come with laser-cut mild steel slats, and the slat slots mean you can easily replace slats that become warped or damaged.

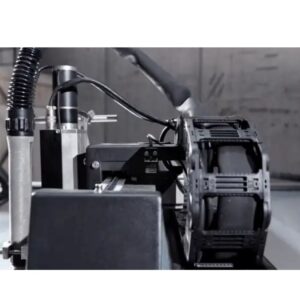

  • The Automatic Torch Height Control continuously monitors and adjusts the torch height in real time to maintain the optimal height while cutting over wavy or warped material.
  • By maintaining the optimal height, you get a consistent cutting quality, minimal dross, increased consumable life, and faster cutting speeds.
  • Automatic Collision Detection & Limiter Switches On All Axes.
  • With limiter switches on all axes and an automatic collision detection system, the Stealth table uses sensors, software algorithms, and real-time data processing to detect and prevent potential collisions and stop it from exceeding its predefined range of motion.
  • The 21-inch touchscreen computer comes mounted on a fully adjustable arm and pre-installed with our in-house, custom-designed UNIMIG Arc Path CNC Control software.
  • Arc Path accepts G-Code Design files, or alternatively, you can plug in a USB or a shared network folder and load your own files. We’ve also included CAM nesting software powered by FLCAM that accepts DXF files.
  • Let the Stealth CNC table handle the heavy lifting so you can increase your productivity. The Stealth 1200 CNC allows you to produce more parts and projects efficiently.
  • Optimise your cuts and nest parts on full sheets to minimise loading time and reduce material waste.
  • Your Stealth table includes exclusive access to our expert technical support team. Whether you need quick troubleshooting to get back up and running or assistance with your specific program, UNIMIG is here to help.



UNIMIG Stealth 1200 CNC Table, U11097, includes:
1 x CNC Table – Legs & Gantry Installed
1 x Z Axis + Torch Mount – Installed
1 x Control Box – Prewired & Installed
1 x PC – Preconfigured & Unmounted
1 x PC ARM – Unmounted
1 x Height Controller – Installed
1 x Drag Chains – Assembled & Installed
1 x Caster Feet – Unmounted
1 x Material Slats – Unmounted
Lift Hooks – Unmounted
WHAT’S NEEDED
Plasma Source – CNC Capable
Plasma Torch – Machine Torch Recommended
Air Compressor – Output Based on Plasma Source
Air Dryer
Water Table Additive
