• Brand: UNIMIG
• Part Number: U11206
• Primary Input Voltage: 240V Single-Phase
• Supply Plug: 15A
• Dimensions (LxWxH): 220 x 385 x 145cm
• Weight (kg): 750
• Maximum Cutting Dimensions (m): 1.54 x 3.04
• Maximum Table Load (kg): 1420
• Water Bed Capacity (L): 650
• Axis Type: 3 Axis (X/Y/Z)
• Height Control: Automatic & Manual
• Axis Limiter: Physical X/Y/Z Proximity Sensor Switches
• Fume & Spark Management: Separated Water Bed
• Maximum Jog Speed (mm/m): 9000
• CNC Controller: Purpose-Built Multi-Tool Controller

Features:

• UNIMIG Arc Path CNC Control Software: The 21-inch touchscreen computer comes mounted on a fully adjustable arm and pre-installed with our in-house, custom-designed UNIMIG Arc Path CNC Control software. Arc Path accepts G-Code Design files, or alternatively, you can plug in a USB or a shared network folder and load your own files. We’ve also included CAM nesting software powered by FLCAM that accepts DXF files, and a post-processor script is available to allow seamless CAM output from Autodesk Fusion.

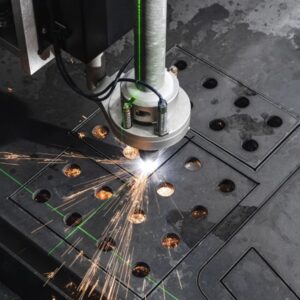

• Automatic Torch Height Control: The Automatic Torch Height Control continuously monitors and adjusts the torch height in real time to maintain the optimal height while cutting. By maintaining the optimal torch height, you get a consistent cutting quality, minimal dross, increased consumable life, and faster cutter speeds.
• True Cut Size: A true 3 by 1.5 metre full commercial sheet cut size. The gantry will travel 3.04 by 1.54 metres, so you can guarantee you’ll get the full size of the table to cut across. Its heavy-duty construction means it can handle full sheet loads of mild steel up to 40mm thick.
• Water Bed With Slat Slots: The table’s water bed absorbs the smoke and dust produced during the cutting process, which gives you a cleaner workspace and reduces the need for extra ventilation or filtration systems. It also helps to cool the material being cut and minimises the amount the plate warps. The slat slots mean you can easily replace slats that become warped or damaged over the table’s lifetime.

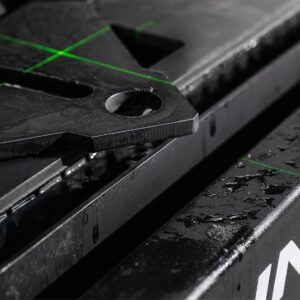

• Adjustable Sighting Laser: Each STEALTH CNC table is equipped with an adjustable offset sighting laser, ensuring precise alignment and eliminating the guesswork for pierce locations and plate alignment. No need for expensive add-on accessories, the STEALTH CNC table comes fully equipped with all necessary features right from the start, providing you with a clear, constant visual of where the cut will start every time.
• Adjustable Collision Detection Torch Holder: The collision detection torch holder comes with spring‐loaded tensioners that give way on impact to protect your torch and dual proximity sensors that immediately halt operations to prevent further damage. The collision sensitivity can be fine-tuned with adjustable tension settings for a customised response to suit your needs. Plus, the spring-loaded design resets your torch position automatically, so you don’t need to recenter your torch each time there’s a collision.
• Industrial Servo Motors & Belt Transmission: The industrial servo motors deliver exceptional precision, responsiveness and reliability. Working in conjunction with a feedback system, the motor’s position, speed, and torque can be adjusted based on real-time data. Paired with the belt-driven transmission system to drive the gantry, this high-performance motor ensures smooth, accurate motion control while maintaining durability under heavy loads.

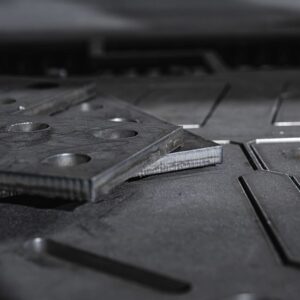

• Maximise Your Production: Let the STEALTH CNC table handle the heavy lifting so you can increase your productivity. The STEALTH 3000 CNC allows you to produce more parts and projects efficiently. Optimise your cuts and nest parts on full commercial sheets to minimise loading time and reduce material waste.
• Independent CNC Frame: The independent frame protects the motor and rails from warping or any damage that heavy workloads can cause. Plus, it allows for easy repair or replacement of the waterbed without needing to recalibrate the table.
• Helical Rack & Pinion Drive: Comprised of hardened tool grade steel, the helical rack and pinion design offers smoother, quieter motion and minimises backlash, ensuring precise and consistent performance.

What You Get:

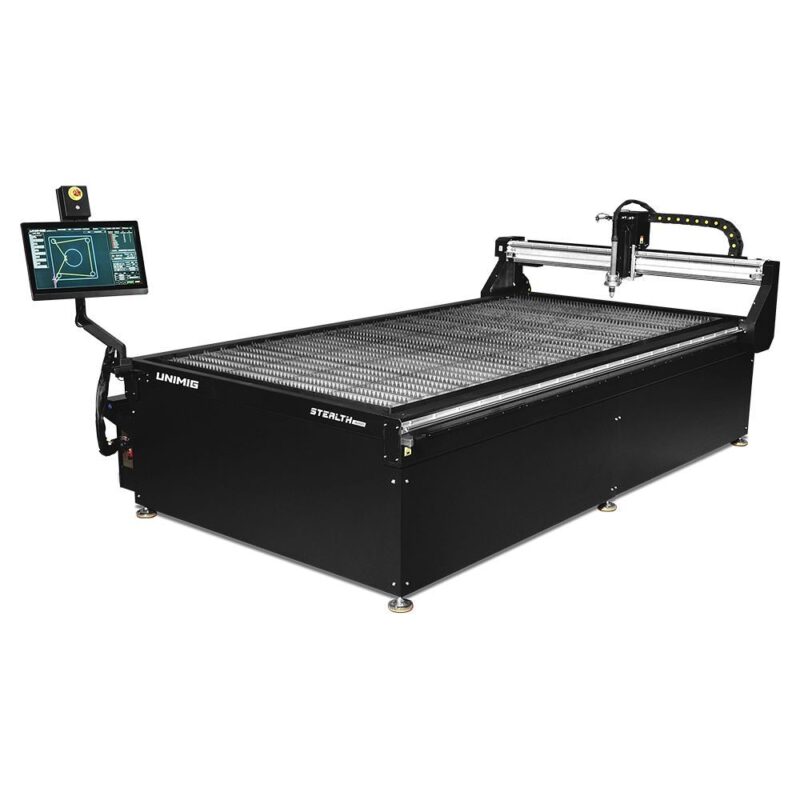

Unimig Stealth 3000 CNC Plasma Table Includes:

1 x CNC Table
1 x Z Axis & Torch Mount
1 x Control Box
1 x Windows Touchscreen PC
1 x PC Arm Mount
1 x Automatic Height Controller
1 x Drag Chains
1 x Water Bed
1 x Material Slats
1 x Lift Hooks
