• Brand: Unimig
• Part Number: U11209 (4m) / U11210 (8m)
• Cooling Method: Closed-loop liquid circulation via bi-flow chamber system
• Torch Head Type: Flexible head with rear Surelok™ mechanical contact termination
• Rated Output – DC Welding:
  4m: 100% @ 450A
  8m: 60% @ 400A
• Rated Output – AC Welding:
  4m: 100% @ 315A
  8m: 60% @ 280A
• Electrode Compatibility: Tungsten size 1.6 mm – 4.8 mm
• Power Cable Type: Braided power line with quick-fit water/gas couplings
• DINSE Connector: 35/50 Twist-Lock with multi-channel coolant and signal pass-through
• Torch Lengths Available: 4 metres / 8 metres (factory-terminated)
• Weight (Torch Only): Approx. 1.4 kg (without cable bundle)
• Standards Compliance: EN 60974-7: TIG Welding Torch Safety & Construction
• Warranty: 12 Months Limited Manufacturer Warranty
• Cooling Circuit Requirements:
  Minimum Water Flow Rate: 1.5 L/min
  Inlet Pressure Range: 3.0 – 5.0 Bar
  Maximum Inlet Temperature: 50°C
  Minimum Cooling Power (Chiller): 900 Watts

Features:

• Liquid-Cooled for High-Amp Durability: The T4W is built to deliver continuous high-amperage TIG performance with 100% duty cycles up to 450A DC. Water-cooling through bi-flow channels provides optimal temperature control under heavy load.
• Flex-Head Torch Body with Surelok Design: The articulated flex-head allows precise weld access in difficult angles while maintaining strength and electrical integrity through the Surelok rear connection system.

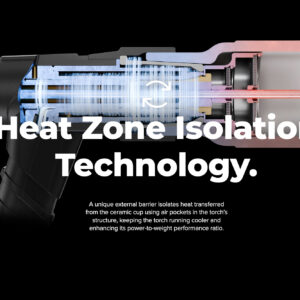

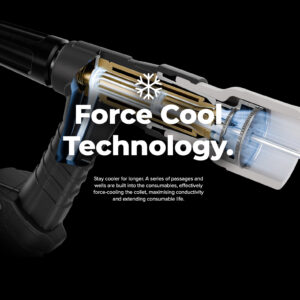

• Heat Zone Isolation & Force-Cooling: This torch integrates advanced cooling at key thermal points—including collet and cup areas—to prevent heat saturation and extend the life of the torch body and consumables.
• Extended Consumable Lifespan: Consumables such as ceramics, gas lenses, back caps, and collets last 5× to 20× longer compared to standard torches, reducing replacement frequency and downtime.

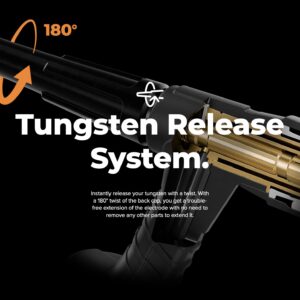

• Tungsten Quick Release System: Swap or reposition tungsten with ease using the built-in ratchet-style clamping system – no tools required and no disassembly needed.
• Digital Trigger Switch with Modular Lead Kit: Comes pre-fitted with a control switch and is compatible with interchangeable potentiometer modules for use with foot pedals or digital control panels.
• Compatible with Advanced Consumables: Supports a wide range of consumables, including standard, gas lens, quartz cups, and high-flow collets – fully customisable for various TIG processes.
• Precision-Built for Professional TIG Systems: Designed for compatibility with high-end TIG welders, including the UNIMIG ENVY ACDC series, this torch is a premium choice for aluminium, stainless, and exotic material welding.

What You Get:

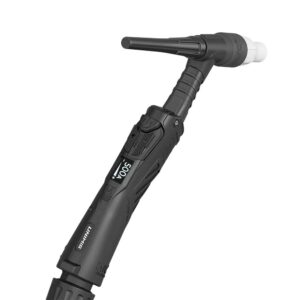

1 × UNIMIG T4W Water-Cooled TIG Torch
Choose Size:
4m / 8m
