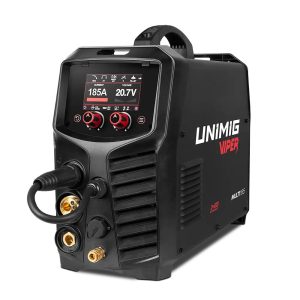

• Brand: UNIMIG
• Barcode: 9333521061146
• SKU: U11260 (Replaces KUMJRVM185)
• Primary Input Voltage: 240V Single Phase 50/60Hz
• Supply Plug: 10A
• Ieff (A): 10.0
• Imax (A): 31.0
• Rated Output: 20-185A
• No Load Voltage (V): 67.0
• Protection Class: IP21S
• Insulation Class: H
• Minimum Generator (kVA): 10
• Dinse Connector: 35/50
• Standard: AS 60974.1
• Welds: MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze | MMA: Mild Steel, Stainless Steel, Cast Iron | TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze, Titanium
• Warranty (Years): 3
• MIG Specifications
• MIG Welding Current Range: 30-185A
• MIG Duty Cycle @ 40°C: 10% @ 185A, 60% @ 77A, 100% @ 60A
• MIG Wire Size Range: 0.6-1.0mm
• MIG Wire Spool Size: 1kg (100mm) / 5kg (200mm)
• MIG Welding Thickness Range: 1-10mm
• Drive Roller Size: 30/22
• TIG Specifications
• TIG Function Type: DC High-Frequency TIG
• TIG Welding Current Range: 20-185A
• TIG Duty Cycle @ 40°C: 10% @ 185A, 60% @ 77A, 100% @ 60A
• TIG Welding Thickness Range: 1-6mm
• MMA Specifications
• STICK Welding Current Range: 20-180A
• STICK Duty Cycle @ 40°C: 10% @ 180A, 60% @ 75A, 100% @ 60A
• STICK Electrode Range: 2.5-4.0mm
• STICK Welding Thickness Range: 2-10mm
• Size & Weight
• Dimensions (mm): 523x214x388mm
• Weight (kg): 13.5kg

Features:

• Single pulse MIG programs & high-frequency DC TIG
• MIG Smart-Set weld modes for complete synergic setups
• 10 amp plug, so you can use it with any domestic outlet
• 3-in-1 multi-process machine so you can MIG, TIG & STICK
• Spool gun ready for aluminium welding
