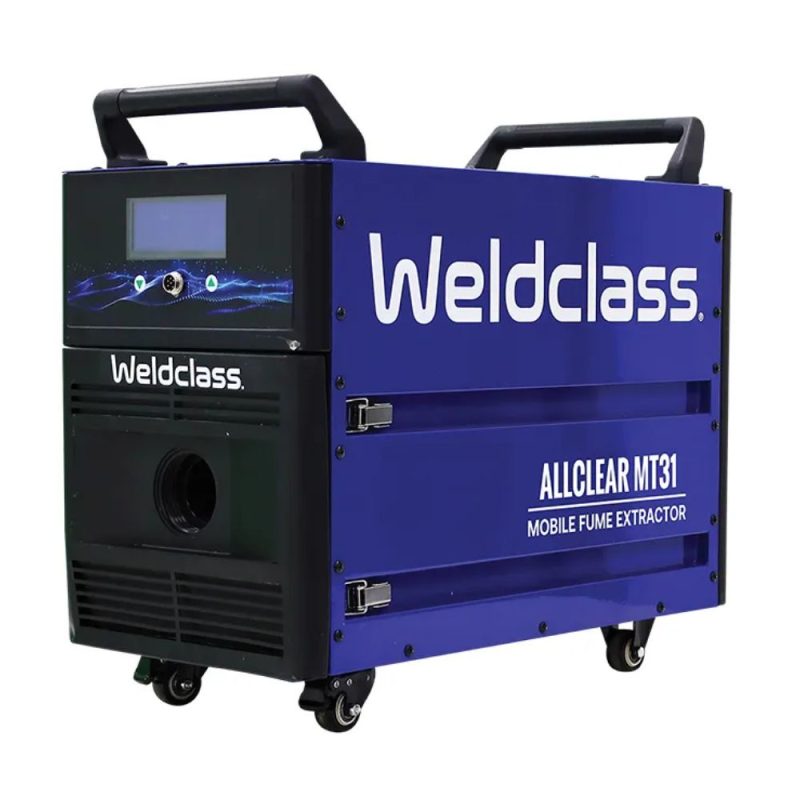

• Brand: WELDCLASS
• Part Number: WC-MT31
• Dimensions (mm): 600 (H) x 280(W) x 475(D)
• Power supply: Single phase ~230V 10A
• Filter E12: 99.9% 0.3µm
• Filter Size: 6m2
• Suction Pressure: 21,000 PA
• Maximum Air Flow: 200m3/h
• Filter type: E12 99.9% 0.3µm PTFE 99.9% 0.3µm, cylindrical cartridge
• Filter cleaning: Remove-to-clean filter, with dust collection tray
  Auto Start: Yes
• Motor size: 1.2kw
• Noise Level: 70db
• Weight: 24kg
• Max suction hose length: 5m

Features:

• Auto On-Off, syncs with MIG torch trigger via current sensor
• Auto on/off is plug & play when using Weldclass FT36E MIG torch, other brand fume torches require earth clip (included)
• Cleanable filter for extended service life & reduced operating cost
• Filters must be removed for cleaning, using appropriate PPE
• Spark deflector shields filter from coarse/hot particles, and reduces fire risk
• Carbon filter removes odours from filtered air
• Dust collection tray allows safe removal of dust ejected from filter cleaning
• PFTE-coated filter for ease of cleaning
• Variable speed (suction power) control
• Filter fullness indicator
• Fume collection that follows your weld
• Operates on ~230V 10A single phase power
• Designed for light-to-medium industrial applications (for high volume use, consider ALLCLEAR MT84 unit)
• Compact, portable, lightweight
• APPLICATIONS
  Gas MIG welding
  Gasless and Flux-Core welding
  NOT suitable for extraction of fumes that contain; aluminium dust, oil mist, gases, or water vapour
