Brand: WELDCLASS
Part Number: WC-MT84K36E4
Power supply: Single phase ~230V 15A
Dimensions (mm): H1070 x W470 x L485
Length: 485mm excluding inlet tube, length 600mm including inlet tube
Weight: 34kg
Filter type: M Class PTFE 99.9% 0.3μm, conical cartridge
Filter surface area: 4m² with conical anti-clog technology
Max Suction Pressure: 25,000 PA
Maximum Air Flow: 380m³ / hour
Filter type: E12 99.9% 0.3μm PTFE 99.9% 0.3μm, cylindrical cartridge
Filter cleaning: in-situ cleaning via jet-clean funtion, remove/clean filter and dust bin for periodic maitenance
Motor size: 2 x 1.3kw = total 2.6kw
Noise Level: 72dbA
Max suction hose length: 20m

Features:

• Made in Europe
• Dual motors for powerful, best-in-class suction
• High extraction performance: max suction pressure 25,000pa, max air flow 380m³/hour
• Auto or Manual On/Off controls: Auto syncs with MIG torch trigger via current sensor*
• Spark arrestor/filter shields filter from coarse/hot particles, and reduces fire risk**
• Cleanable filter for extended service life & reduced operating cost

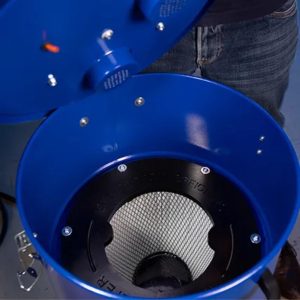

• Unique Anti-Clog filter technology: Conical filter and upward airflow prevents debris buildup, boosting airflow and filter life
• Large dust collection bin, allows safe removal of dust ejected from filter cleaning
• PFTE-coated filter for ease of cleaning
• Full filter warning

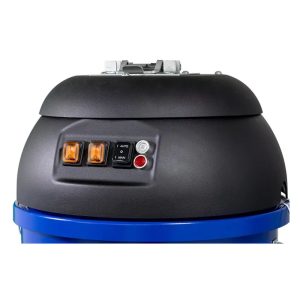

• Individual on/off control of each motor (1 motor for standard suction power, 2 motors for maximum suctionIntegrated fume extraction, ready to plug and play
• Torch trigger syncs with extractor for auto on/off function
• For auto on/off function, pass earth lead through current-sensing clip located on top of MT84 unit
• Removable, fast changeover pistol grip
• Uses common BZL 36 consumable parts
• 320A capacity
• Applications:
• Gas MIG welding
• Gasless and Flux-Core welding
• NOT suitable for extraction of fumes that contain; aluminium dust, oil mist, gases, or water vapour
