‘- Italian made – LCD Display
– Trigger Modes
– Pulse-On-Pulse
– Easy-Mode
– Root MIG Mode
– Pulse Wave Adjustments
– Wave OS Software
– Push-Pull Ready
$4,933.95
Lorem ipsum dolor sit amet, consectetur adipiscing elit.
Lorem ipsum dolor sit amet, consectetur adipiscing elit.
Lorem ipsum dolor sit amet, consectetur adipiscing elit.
Lorem ipsum dolor sit amet, consectetur adipiscing elit.
| WHAT YOU GET: |
|---|

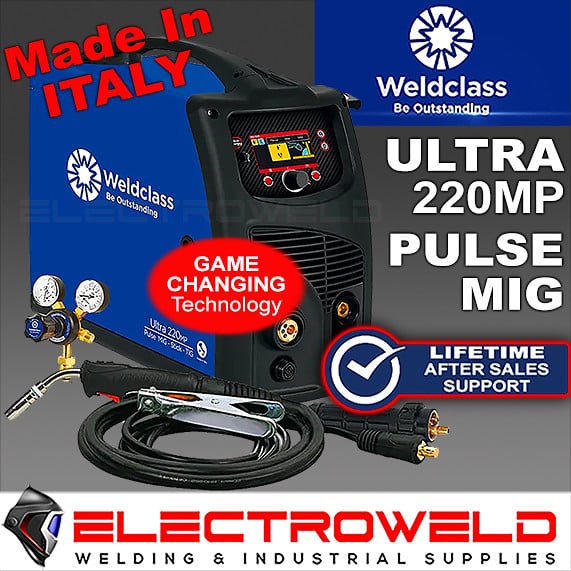

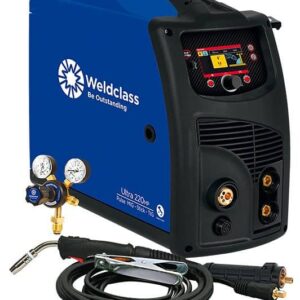

| 1 x WELDCLASS Ultra 220MP Dual Pulse Welder |
| 1 x MIG Torch BZL 25, 3m |
| 1 x Gas Regulator |
| 1 x Earth Lead 4m |
| 1 x Driver Roller for 1.0/1.2mm Aluminium wires |
| 1 x Driver Roller for 0.8/0.9mm Steel/solid wires |
| FEATURES: |
|---|
| Made in Italy to Weldclass specifications, in one of Europe’s largest & most experienced welding machine manufacturing plants. |
| Very easy to operate with a large Colour LCD Display and intuitive, easy-to-follow controls. |
| Swiss-made intelligent wire drive system with Tacheometric Control: Machine software monitors wire feed speed against weld parameters, at intervals of more than 100 times per second, and automatically applies “micro-adjustments” for exceptionally smooth and reliable wire feeding. |
| Remote amp +/- controls on MIG torch handpiece. |
| Push-Pull Ready: Software pre-configured & ready for use with optional Push-Pull MIG Torch. |
| Job Save to capture specific parameters/settings with custom naming and easy recall for the next time you need to repeat the same job/weld. |
| USB interface allows fast & easy software upgrades throughout the life of the machine, plus importing & exporting of saved settings between multiple 220MP machines. |
| Wave OS (operating system) software enables the recording, download (via USB) and full analysis of weld data – useful for: critical and high-compliance applications and training purposes. |
|
FUNCTIONS:
– PoP (Pulse-on-Pulse / Double Pulse) mode – AB Pulse (Single Pulse) mode – Easy-Mode (available in a single pulse and non-pulse modes), ideal for beginner pulse welders: simplifies screen/controls & prevents unintentional adjustment of the wrong parameter – Pulse wave adjustments: Start Current amps/time, Start-Slope time, Main Current, Secondary Current & Frequency (double pulse), End Slope time, End Current amps/time – Root MIG mode: Used with mild steel wire only. Enables gap-filling & first-pass (root) welding of pieces that are spaced apart (poor fit-up, gaps, cracks, etc) that traditionally would only be achievable by TIG welding. Weld pool is typically colder than the arc for very low heat & minimal distortion.
– Trigger modes: 2T, 4T & unique 4T Bi-Level which allows the operator to “manually double-pulse” (manually switch between primary and secondary current levels by quickly pulling then releasing the trigger) – Other MIG Adjustments include: Arc Length, Inductance, Soft Start, Burnback, Pre-Gas time, Post-Gas time, Spot Weld time – Stick/MMA Adjustments include: Hot-Start %, Arc-Force % |
|
APPLICATION & CAPABILITY INFO:
– Single or Double Pulse MIG welding 20-220A with Aluminium (0.8-1.2mm wires / 0.8-5.0/6.0mm material*), Stainless-Steel (0.8mm wire / 0.8-5.0mm material), & Bronze/Brazing (0.8-0.9mm wires / 0.8-
5.0mm material)
– Conventional Non-Pulse MIG welding 20-220A with solid mild steel (0.6-1.2mm wires / 0.5-10mm material), stainless-steel (0.8-1.0mm wires), aluminium (0.8-1.2mm wires / 3-8mm material) & bronze/brazing
(0.8-0.9mm wires)
– Pulse MIG welding with optional Push-Pull MIG Torch and 0.8-1.2mm wires – Stick/MMA welding 20-160A with most types of common electrodes (2.0-4.0mm), including steel, stainless steel, hard facing & more – TIG welding 20-160A (DC Lift-Arc) of steel, stainless, copper & chrome molly up to 4mm max thickness (NOT suitable for TIG welding of aluminium – this requires AC/DC TIG capability, such as the
Weldforce 202T)
|
