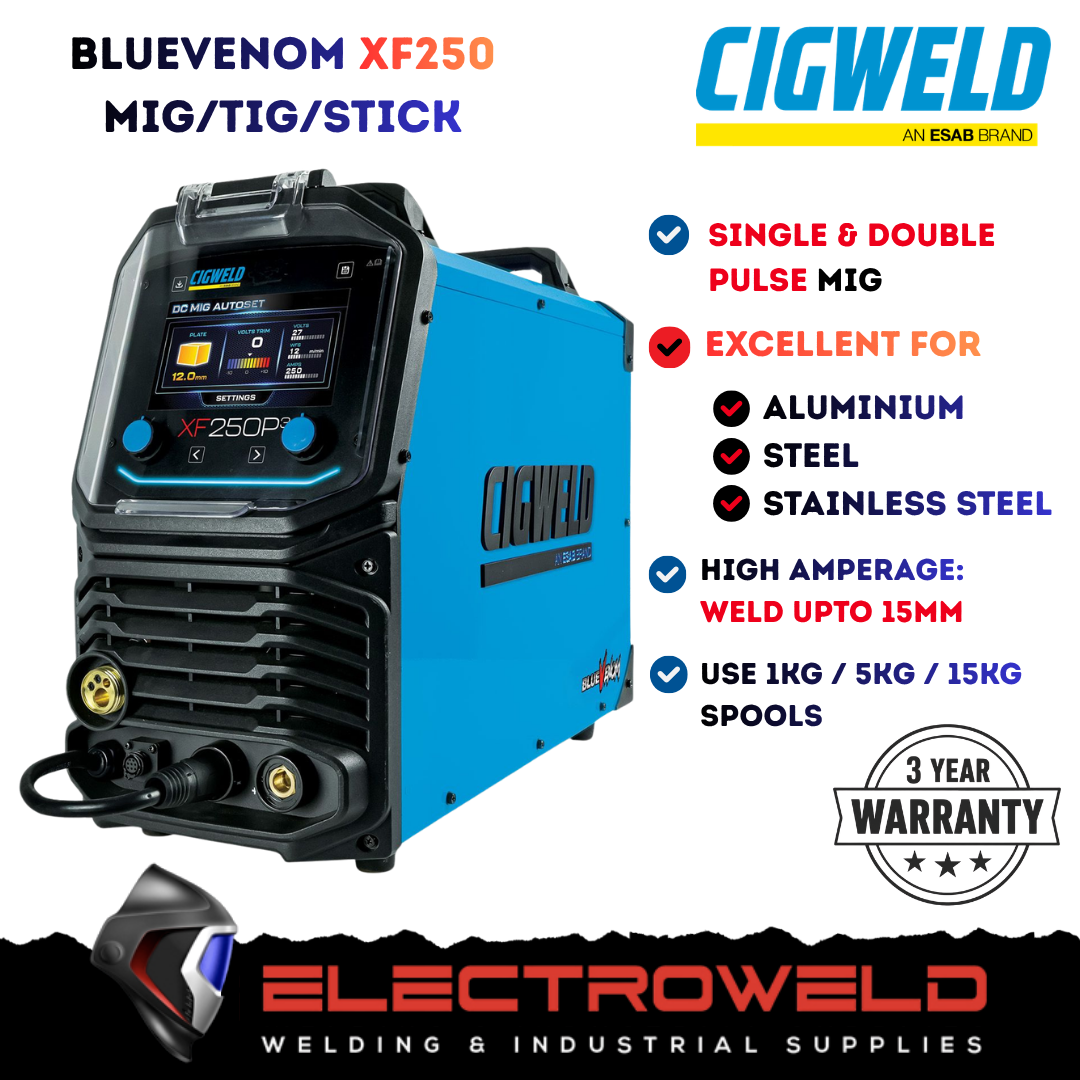

The CIGWELD BlueVenom XF250P3 is a high-performance 250A multi-process welding inverter for serious enthusiasts and seasoned professionals. Equipped with single and double pulse MIG, stick pulse and TIG pulse, it offers precision and versatility across steel, stainless and aluminium fabrication.
AUTOSET guidance, Opti-Start technology and a 7 inch full colour LCD mean it's ready to perform straight out of the box, while the 4-roll cogged all-driven wire drive gives smooth, effortless feeding. It runs from a standard single phase 15A outlet and comes as a complete package ready to weld.
Key Features
- 250A multi-process: MIG, TIG and stick in one machine
- Advanced pulse: single and double pulse MIG, stick pulse and TIG pulse
- Total arc control: adjustable Opti-Start volts, amps and time plus crater fill
- 7 inch full colour LCD: with AUTOSET guidance
- 60 memory slots: save and recall job settings
- 4-roll cogged wire drive: smooth, reliable wire feeding
- VRD on stick mode and 15A single phase plug
- 3-year warranty
What's Included
- BlueVenom XF250P3 Power Source
- 3m NEXARC DGX36 MIG Gun with 4-Button Control
- 200A Twist Lock Electrode Holder with 3m Lead
- 2m Quick Connect Gas Hose
- 300A Earth Clamp with 3m Lead
- BlueJet Regulator/Flowmeter
- Feedrolls: 0.8/0.9mm V-Groove (fitted), 0.8/0.9mm Knurled, 1.0/1.2mm U-Groove
- Mild Steel Liner (fitted), Nylon Liner, Inlet/Outlet Guides
Specifications
- Brand: CIGWELD BlueVenom
- Power Supply: Single phase 230V plus or minus 10%, 15A plug
- Amperage Range: MIG 30 to 250A, TIG 10 to 250A, Stick 30 to 205A
- MIG Duty Cycle @ 40C: 250A @ 18%, 26.5V
- TIG Duty Cycle @ 40C: 250A @ 25%, 20.0V
- Stick Duty Cycle @ 40C: 205A @ 25%, 28.2V
- Minimum Generator: 10.5kVA
- VRD: Yes, stick mode (under 35V)
- Protection Class: IP23S
- Dimensions: 620 x 260 x 495mm
- Weight: 25.5kg
- Standard: AS 60974.1:2020
- Warranty: 3 Years
- Part Number: W1400250
