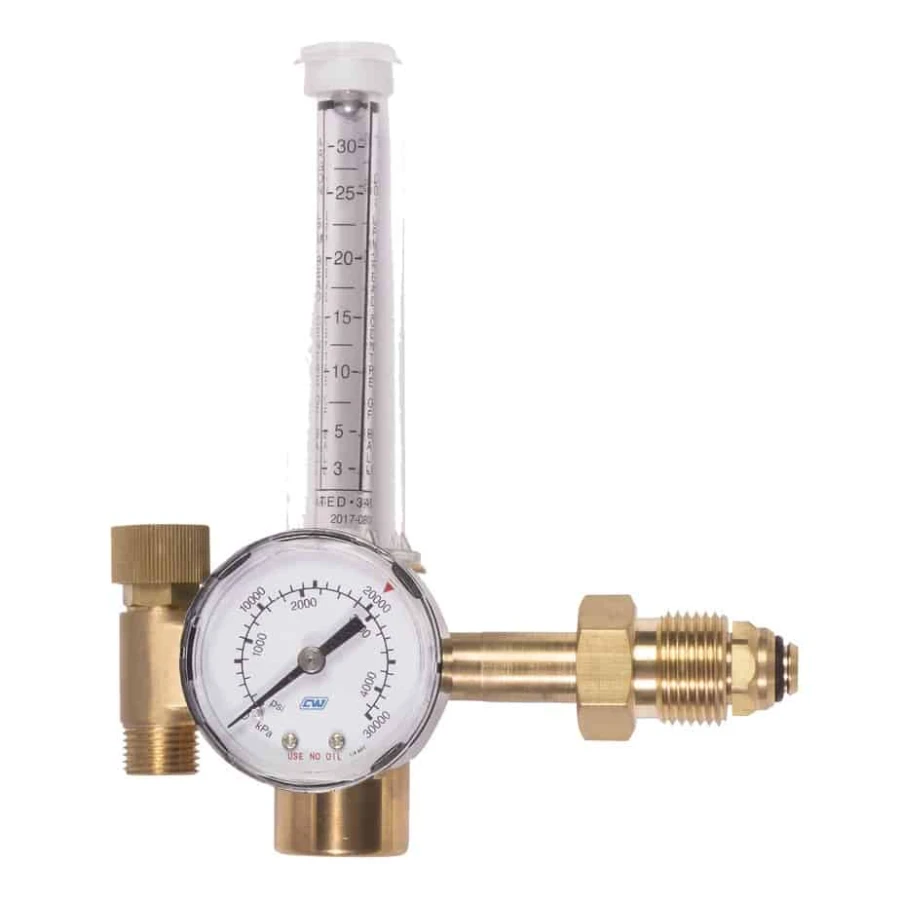

Cigweld CutSkill Argon Regulator Flowmeter 30 LPM (Side Inlet) 201031
The CutSkill Side Inlet Regulator Flowmeter provides accurate indication of the flow rate of shielding gases for MIG and TIG welding processes.
The Regulator/Flowmeters have been designed for TIG processes and MIG, Short Arc and Spray Arc applications - calibrated for O to 30 lpm. The metering ball is stainless steel. They are constructed with a machined brass body and cap, are back pressure compensated and have a self-reseating relief valve – not designed to protect down stream equipment. Features: • Maximum 30 LPM Flow Rate • Maximum Inlet Pressure 20,000kPa • Robust brass body and fittings • Failsafe against over pressure • Calibrated flow rates at 345 kPa inlet pressure and 0 to 30 lpm (Vertical / Side Inlet) • Inlet connection 5/8” BSP - 18 Type 10 • Outlet connection 5/8” - 18 UNF - RH P/N: 201031
