Cigweld EASYWELD MIG 160 - Stick, MIG Gas & Gasless w/ Plate

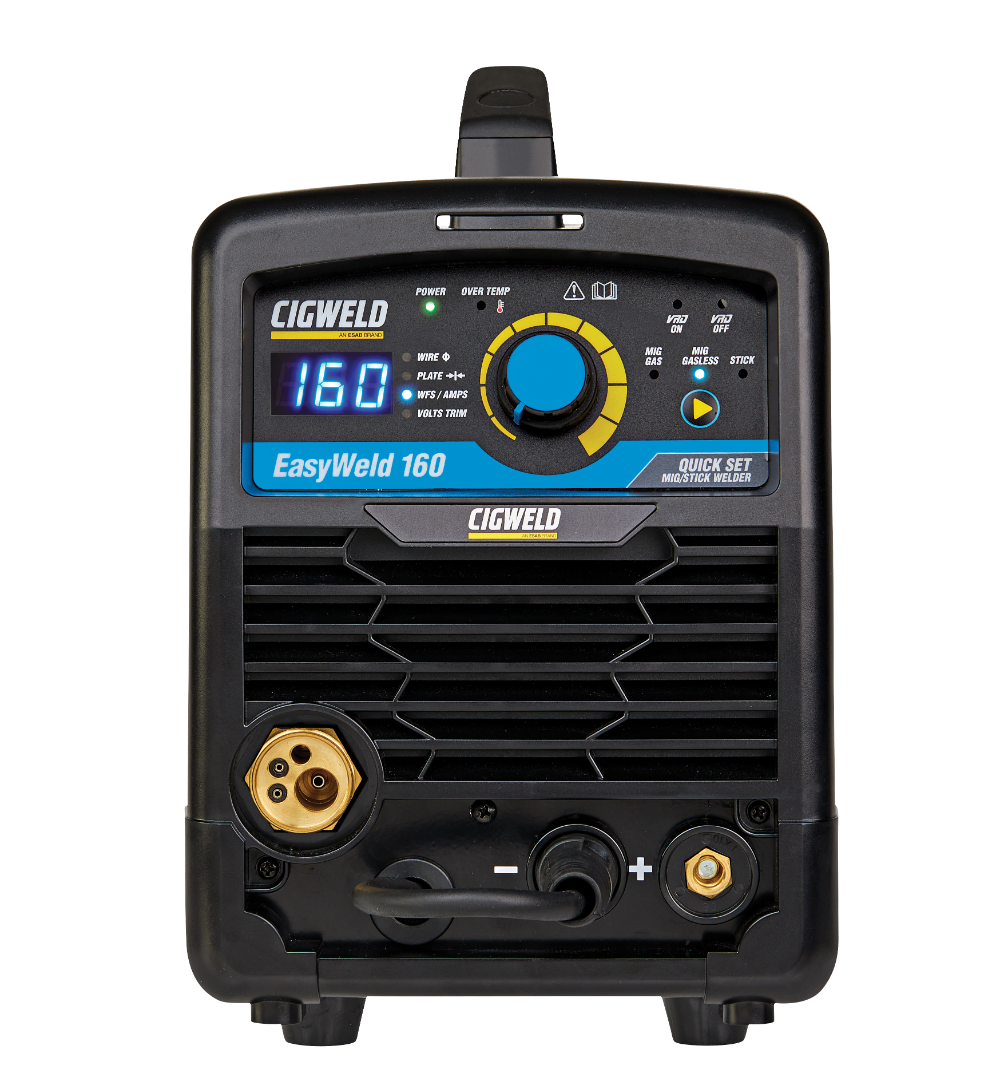

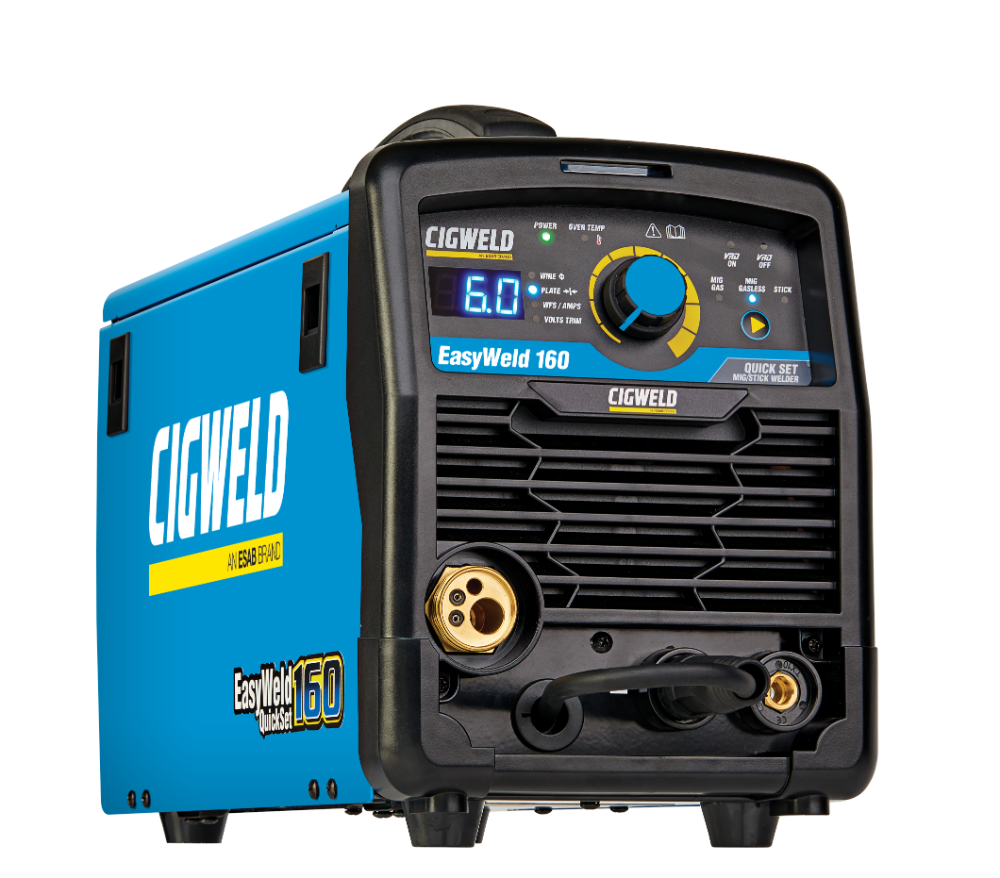

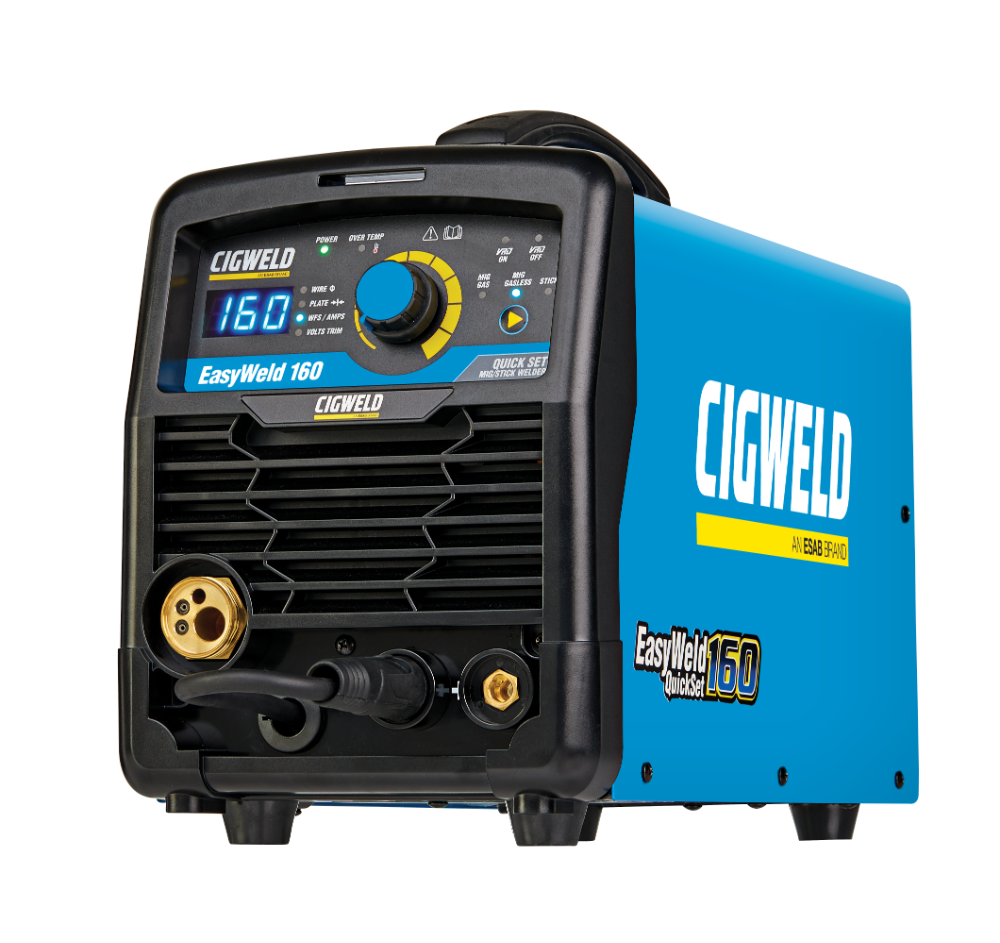

CIGWELD EasyWeld 160 MIG & Stick Welder

The CIGWELD EasyWeld 160 is a compact, easy-to-use multi-process inverter welder designed for home workshops, maintenance, light fabrication, repairs, farms and DIY welding applications. Delivering up to 160 amps of MIG welding power and 140 amps in Stick mode, the EasyWeld 160 combines professional welding technology with simple, intuitive operation.

Designed to run from a standard 240V 10A household power supply, the EasyWeld 160 is an excellent choice when you need a capable MIG welder without requiring a dedicated high-current electrical circuit.

QuickSet Technology – Easy Welding Setup

One of the standout features of the EasyWeld 160 is CIGWELD's QuickSet system. Instead of having to manually calculate the correct welding parameters, simply select the welding process, choose your wire size and dial in the material thickness. The machine then provides a suitable starting point for your welding settings.

This makes the EasyWeld 160 particularly suitable for welders who want straightforward operation without sacrificing control.

MIG, Gasless MIG & Stick Welding

The EasyWeld 160 provides multiple welding options from one compact machine:

• MIG welding with shielding gas using solid wire

• Gasless MIG welding using flux-cored wire

• Stick / MMA welding up to 140A

• Manual control for experienced welders who want to fine-tune their settings

The machine supports common MIG wire sizes including 0.6mm and 0.8mm solid wire, along with 0.8mm and 0.9mm gasless flux-cored wire.

Designed for 10A Household Power

The CIGWELD EasyWeld 160 has been specifically configured to deliver strong welding performance from a standard 240V 10A power supply. This makes it a practical option for garages, home workshops, mobile maintenance and general repair work where higher-current electrical circuits may not be available.

The EasyWeld 160 delivers:

• 160A maximum MIG output

• 140A maximum Stick output

• 160A MIG at 15% duty cycle

• 80A MIG at 60% duty cycle

• 62A MIG at 100% duty cycle

• 10A effective input current

• 240V single-phase operation

Suitable for a Wide Range of Welding Applications

With both MIG and Stick capabilities, the EasyWeld 160 is suitable for a wide range of general welding jobs. It can be used on materials including mild steel, stainless steel, aluminium and bronze, depending on the appropriate welding process, wire and consumables.

The recommended MIG welding range extends from approximately 0.6mm to 6mm using QuickSet, with manual mode providing additional flexibility for more experienced users.

Key Features

• 160A MIG welding output

• 140A Stick welding output

• MIG, Gasless MIG & Stick welding

• QuickSet plate thickness presets

• Easy electronic parameter adjustment

• Manual welding mode for greater control

• Suitable for standard 240V 10A household power

• Built-in Voltage Reduction Device (VRD) in Stick mode

• Bright blue LED digital display

• Creep start for smoother weld starts

• Compact and portable inverter design

• Suitable for home, workshop, farm, maintenance and light fabrication applications

• Supports 0.6mm, 0.8mm and 0.9mm MIG wire configurations

Compact, Portable & Easy to Use

At approximately 10.2kg, the EasyWeld 160 provides a good balance between portability and welding capability. Its compact design makes it easy to move around the workshop or take to different jobsites, while the supplied shoulder strap makes transportation even easier.

Specifications

SpecificationCIGWELD EasyWeld 160Welding ProcessesMIG, Gasless MIG, StickMIG Current Range30–160AStick Current Range10–140AMIG Duty Cycle160A @ 15% / 80A @ 60% / 62A @ 100%Stick Duty Cycle140A @ 15% / 70A @ 60% / 54A @ 100%Power Supply240V Single PhasePlug10AInput Frequency50/60HzPower Source Weight10.2kgDimensions440 × 206 × 308mmProtection ClassIP21SPart NumberW1201160

Specifications are based on CIGWELD's published documentation.

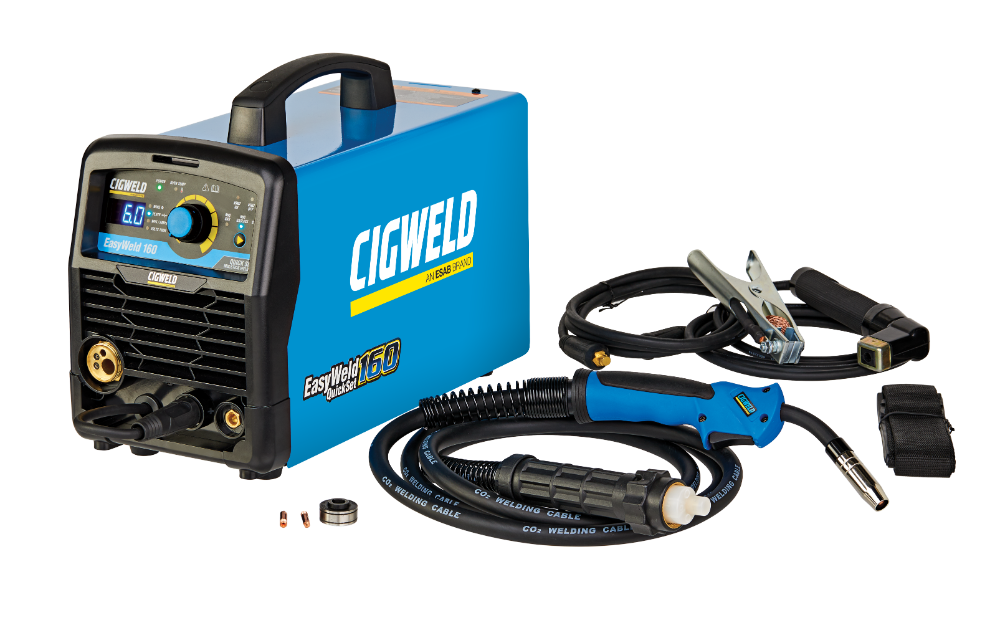

What's Included

• 1 × CIGWELD EasyWeld 160 Inverter Welder

• 1 × 2.5m Electrode Holder Lead

• 1 × 2.5m Work Clamp Lead

• 1 × 3m MIG Torch with Euro Connection

• 0.8/0.9mm Flux-Cored Feed Rolls

• 0.6/0.8mm V-Groove Feed Rolls

• Spare 0.6mm & 0.9mm Contact Tips

• Shoulder Strap

• Operating Manual

CIGWELD EasyWeld 160 – Simple, Capable & Ready to Weld

Whether you're carrying out repairs around the farm, fabricating in the workshop, maintaining machinery or tackling DIY welding projects, the CIGWELD EasyWeld 160 provides an easy-to-use MIG and Stick welding solution with the convenience of standard 10A household power.
