Cigweld TransMIG 4RX Wire Feeder - Works with TransMIG 355i &

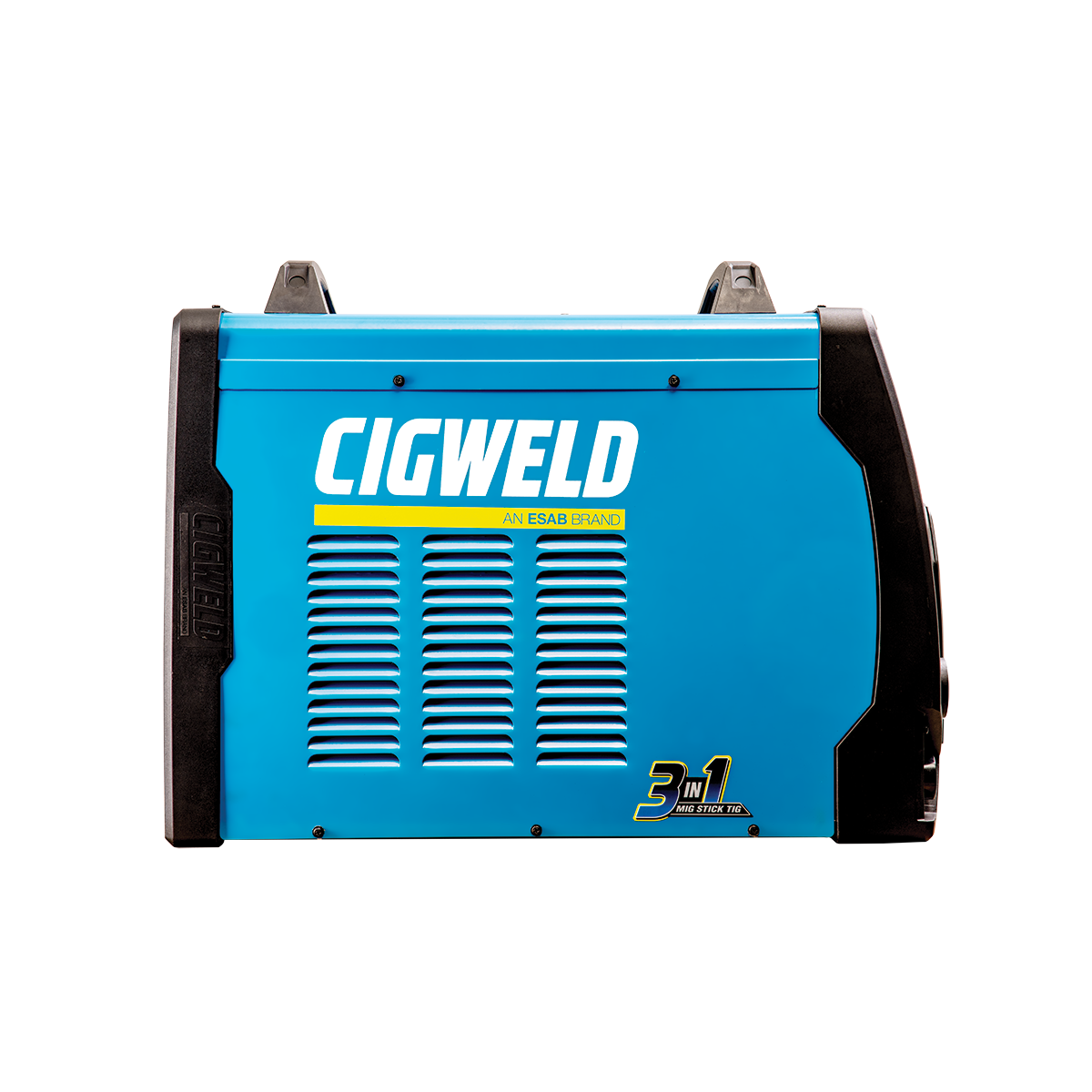

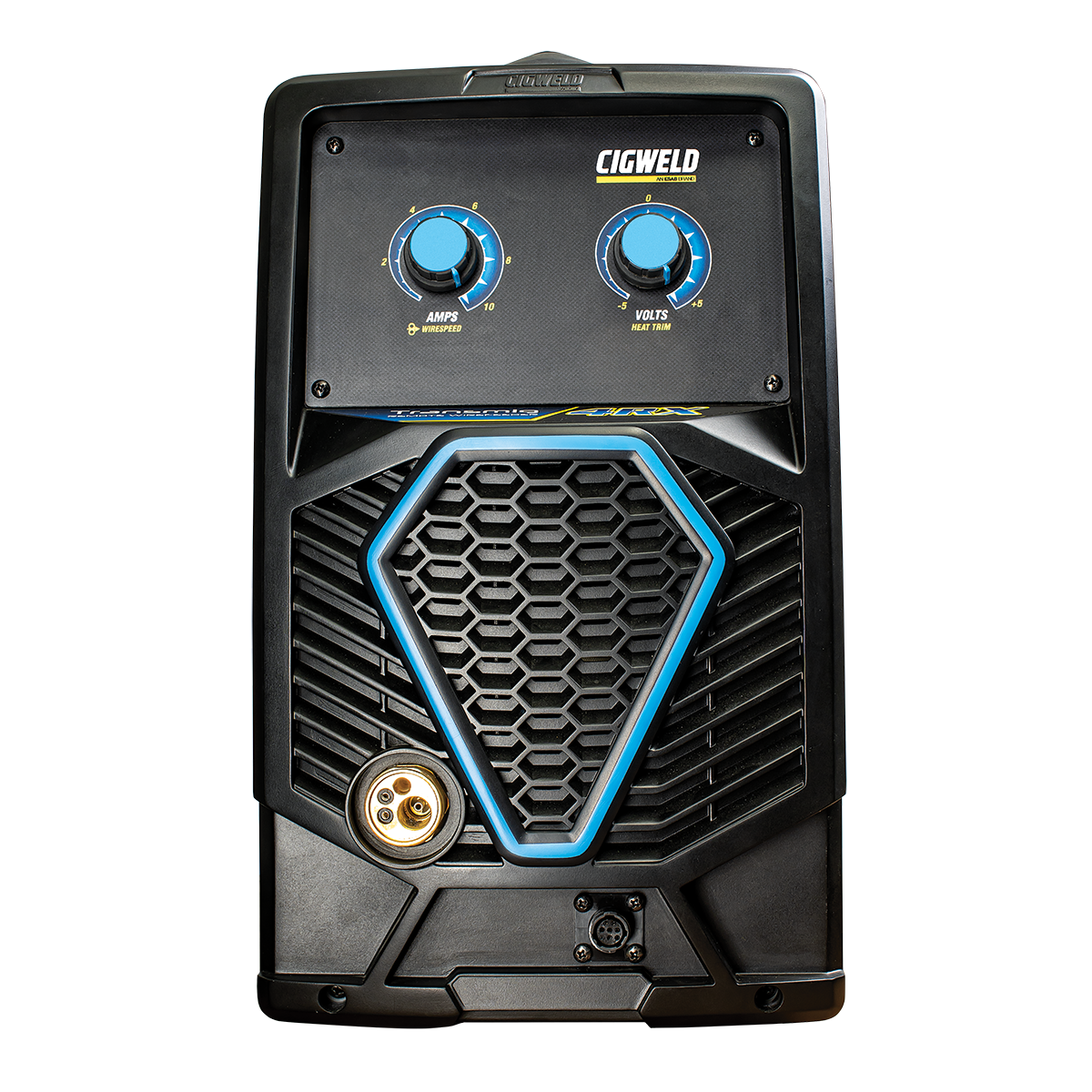

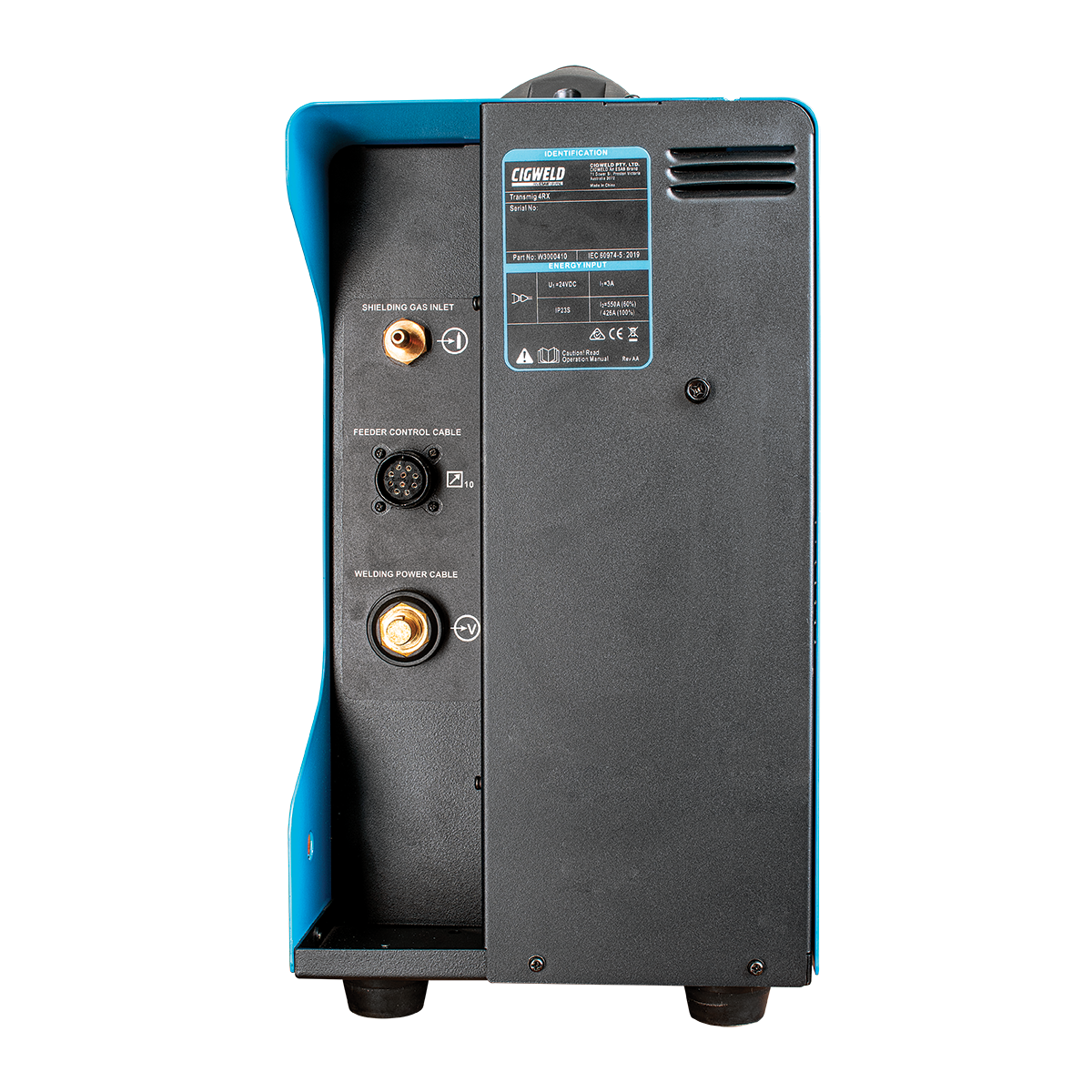

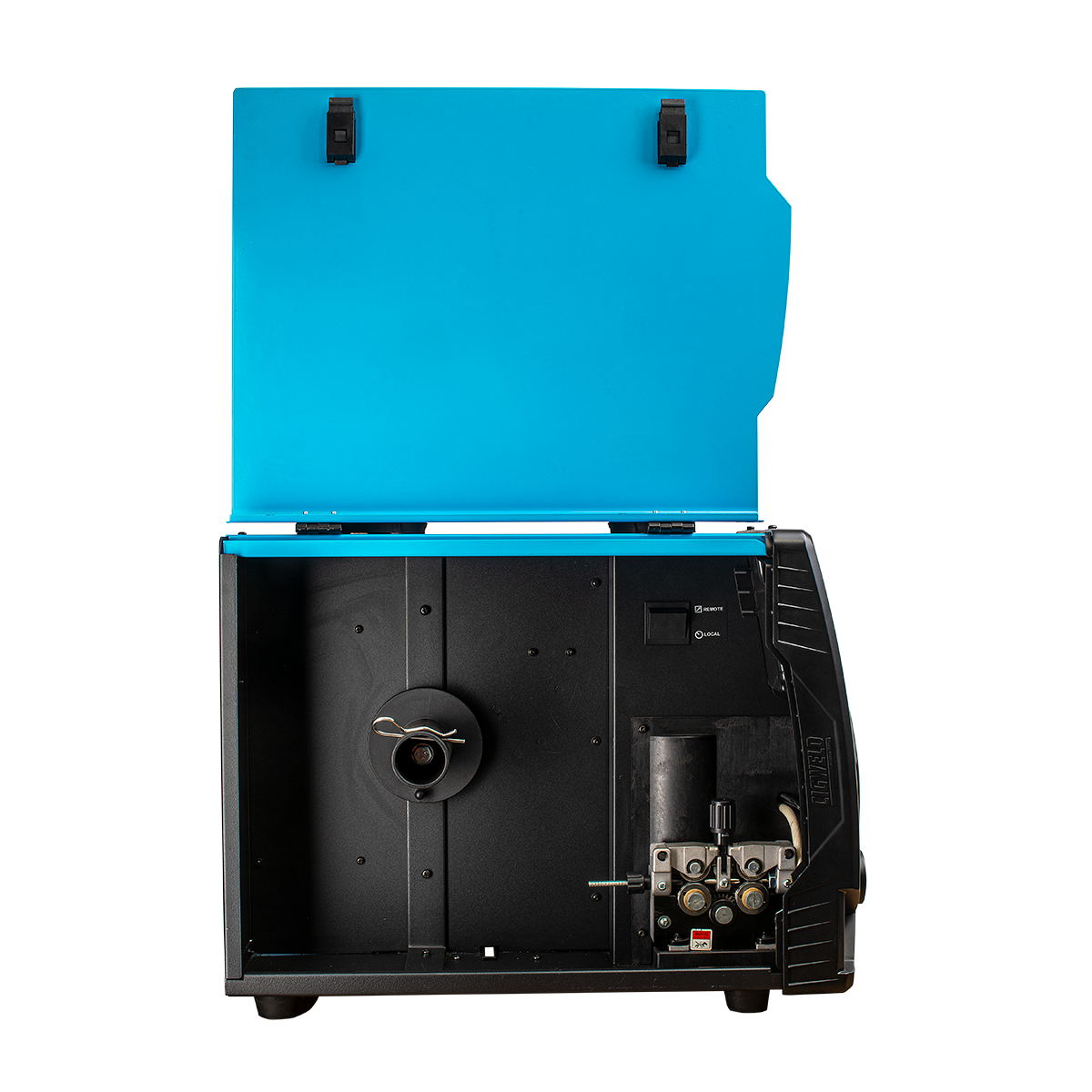

The Transmig 4RX Wirefeeder is designed for use with the Transmig 355i Multi Process Welder – a robust 4 Roll Feeder that can operate with 200mm and 300mm spools. Fitted with a single tension arm the drive system is simple to operate for easy changing of wire and feedrolls.The Transmig 355i is supplied with a Tweco Fusion 400 AMPair-cooled MIG Torch that can be used with the 4RX Wire Feeder. The Fusion MIG Torch is designed with an ergonomic handle that feels light in the hand to reduce operator fatigue. Transmig 355i Remote Plant Part Number: W1003510 CONTENTS: Transmig 355i Inverter Power Source Feedroll 0.9/1.2mm V Groove (Fitted) Transmig 4RX Wirefeeder 8m Interconnection Lead Tweco Fusion 400 Mig Torch 3.6m Comet Professional Argon Regulator / Flowmeter Work Clamp with 4m Lead Heavy Duty Trolley with inbuilt cylinder carrier Shielding Gas Hose Assembly Operation Manual

OPTIONAL ACCESSORIES

• •Tweco Fusion 400
• •MIG Torch, 3.6m, Euro OTWF412X3545 Tweco No. 4
• •MIG Torch, 3.6m, Euro OTWX412/3545 Tweco No. 4
• •MIG Torch, 4.5m, Euro OTWX415/3545 2m Interconnection Lead, 10 Pin, suits 4RX wirefeeder W4016003 8m Interconnection Lead, 10 Pin, suits 4RX wirefeeder W4016002 15m Interconnection Lead, 10 Pin, suits 4RX wirefeeder W4016004 Tweco SGT 250 Spool Gun W4011250 CIGWELD TBi Push-Pull Gun, 8m 185P958180 CIGWELD TBi Push-Pull Gun, 12m 185P9581C0 CIGWELD TBi Push-Pull Gun Neck, 40 degree 185P001002 CIGWELD TBi Synchroniser Box 590P958000 Twistlock Electrode Holder Lead, 400A, 5m 646779
• •TIG Torch 17V with 4m lead (200A@20%) W4013801
• •TIG Torch 17V with 4m lead and remote control (200A@20%) W4013800
• •TIG Torch 26V with 4m lead (240A@20%) W4014601 Transmig 355i Trolley with inbuilt cylinder carrier W4015005 Feed Roll 0.6/0.8mm V groove (hard) 7977729 Feed Roll 0.9/1.2mm V groove (hard) (fitted) 7977703 Feed Roll 1.2/1.6mm V groove (hard) (fitted) 7977346 Feed Roll 0.8/0.9mm U groove (soft) 7977733 Feed Roll 1.0/1.2mm U groove (soft) 7977730 Feed Roll 1.2/1.6mm U groove (soft) 7977348 Feed Roll 0.8/0.9mm V groove knurled (flux cored) 7977734 Feed Roll 1.2/1.6mm V groove knurled (flux cored) 7977347 Shielding Gas Hose Assembly W7004913
• •MIG Pliers

CWPLIER PRODUCT TESTING

As part of our product development, CIGWELD rigorously test all the internal components of the welding machine and its external accessories. We make sure that the machines are not just fit for purpose, but will handle tougher than expected working conditions. Additionally, we also conduct weld tests on various common metals, using the expertise of our local technical team ensuring that the settings you use on our machines are tuned to local conditions.
