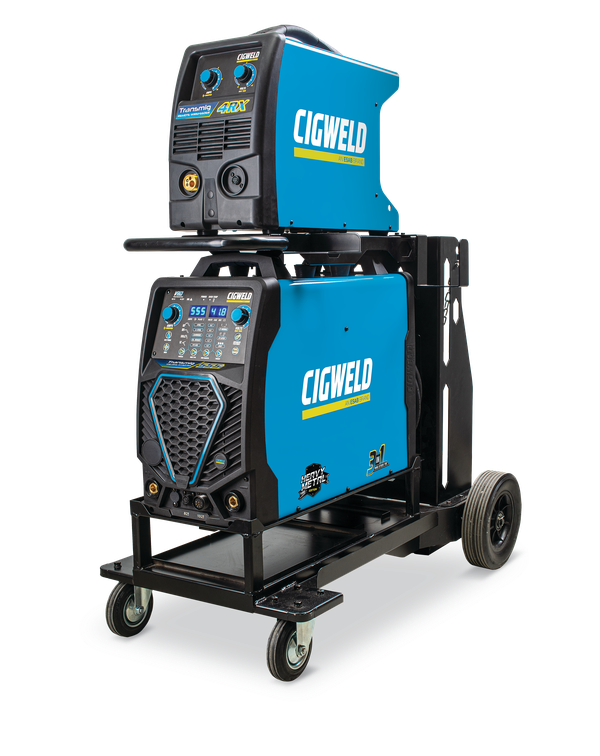

Cigweld TransMIG 555i Remote Plant - 3Ph, 400/415V W1400555

Meet the new

CIGWELD TRANSMIG

555i Multi Process Heavy Duty Welding package! Boasting a powerful 555 amp inverter block, this 3-phase beast packs serious arc punch for heavy metal applications! Loaded with advanced features across MIG, STICK, TIG and GOUGING processes, the TRANSMIG 555i has a rated duty cycle of 555A @ 40% and 500A @ 60%. Oh, and did we mention it’s incredibly energy efficient? The 555i complies with the European Union ECO-Power regulations, so not only do you get more output amperage for your buck, but you pay less to run this 555i machine compared to a lot of other older machines. Power-Up and Pay-LessTM CIGWELD’s AUTO-SET advanced feature helps you get the best out of your welding performance. With pre-programmed synergic lines, by simply selecting the material type, consumable diameter and plate thickness will give you the right parameters to get your welds done right! The Transmig 555i has been designed to be durable and rugged to suit the most demanding of environments across heavy fabrication, mining, oil and gas, civil construction, ship building and defence, structural steel set-ups and repair and maintenance. FEATURES: 415VAC, 3

PHASE CURRENT RANGE FOR THIS POWER SOURCE IS

30 TO 555A (MIG) OF DC

WELDING OUTPUT

3 IN 1 MULTI-PROCESS: A true multi-process machine offering outstanding welding results across MIG, Stick, TIG and Arc Gouging. ARC GOUGING: The TransMIG 555i is suitable for carbon arc gouging. AUTO SET Process: Auto Set parameters for MIG. Determined by material type, thickness & consumable diameter. MIG (GMAW/FCAW) 555A@40% 0.8-1.6mm for Solid Wire 0.8-1.6mm for Gasless Wire 0.9-1.6mm for Aluminium Wire 0.8-1.6mm for Stainless Steel Wire 0.8-1.2mm for Silicon Bronze Wire STICK (MMA) 555A@40%: Power source suitable from 2.0mm up to 5mm electrode size. TIG (GTAW) 555A@40%: Lift TIG function provides smooth starting and running characteristics across varying applications.

VOLTAGE REDUCTION DEVICE

(VRD): Standards compliant STICK mode only. 3 YEAR Limited Warranty *Refer to operating manual for further details.

PACKAGE CONTENTS

TRANSMIG 555i

INVERTER POWER SOURCE TRANSMIG

4RX WIRE FEEDER (FEED ROLLS 0.9/1.2MM V

GROOVE FITTED

)

INTERCONNECTION LEAD KIT

, 8m MIG GUN

TWECO FUSION

400, 3.6m REGULATOR / FLOWMETER –

COMET PROFESSIONAL ARGON REGULATOR

/

FLOWMETER WORK CLAMP

, 4m

LEAD TRANSMIG

355i/555i TROLLEY –

WITH INBUILT CYLINDER CARRIER OPERATING MANUAL ORDERING INFORMATION

TRANSMIG 555i, P/N:W1400555 TRANSMIG 4RX The Transmig 4RX Wirefeeder is designed for use with the Transmig 555i Multi Process Welder – fitted with a Euro MIG Gun Connection it is a robust 4 Roll Feeder that can operate with 200mm and 300mm spools. The single tension arm drive system is simple to operate for easy changing of wire and feedrolls.

PRODUCT TESTING

As part of our product development, CIGWELD rigorously test all the internal components of the welding machine and its external accessories. We make sure that the machines are not just fit for purpose, but will handle tougher than expected working conditions. Additionally, we also conduct weld tests on various common metals, using the expertise of our local technical team ensuring that the settings you use on our machines are tuned to local conditions.
