Cigweld WeldSkill MicroArc 140 DC Inverter for Stick/MMA and LIFT-TIG welding - 240V 10A W1008162
The CIGWELD MicroArc 140 is proof that great things come in small packages. Weighing just 3kg and measuring only 100mm wide x 185mm high x 252mm deep , this ultra-compact inverter delivers impressive performance for its size. Whether you’re in the workshop or out on-site, the MicroArc 140 is built for true portability — simply throw it over your shoulder and go. With an adjustable welding current from 10–140A , and fine control of Hot Start and Arc Force , this machine easily handles both light and heavy jobs. Run 2.5mm electrodes on light-gauge steel or 3.2mm rods on thicker metals with ease. Add a Lift TIG torch and argon gas , and it delivers smooth, stable TIG welds at 140A @ 20% duty cycle . Powered by a standard 10A plug , this compact powerhouse is your go-to portable welder for home, field, or workshop use. P/N: W1008162

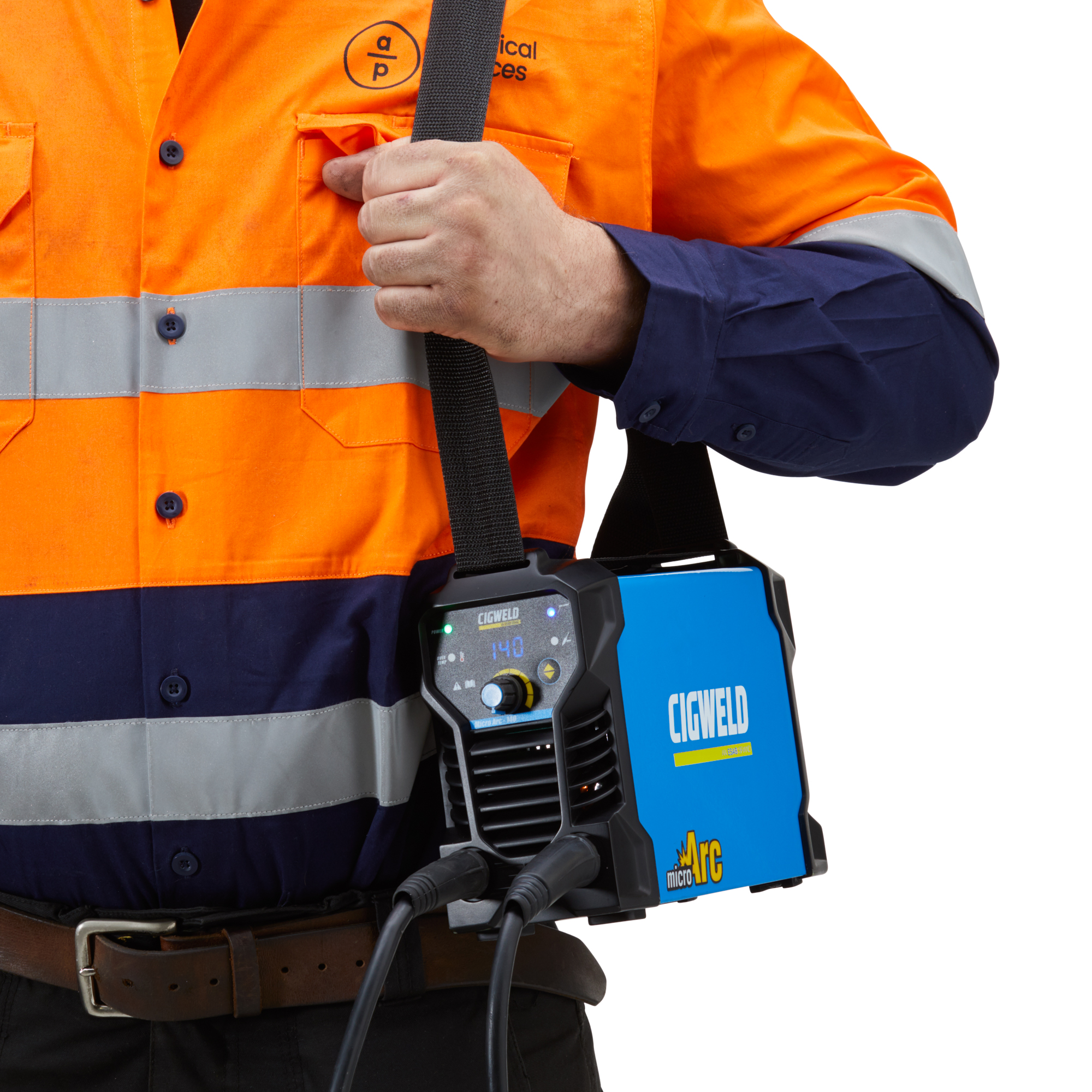

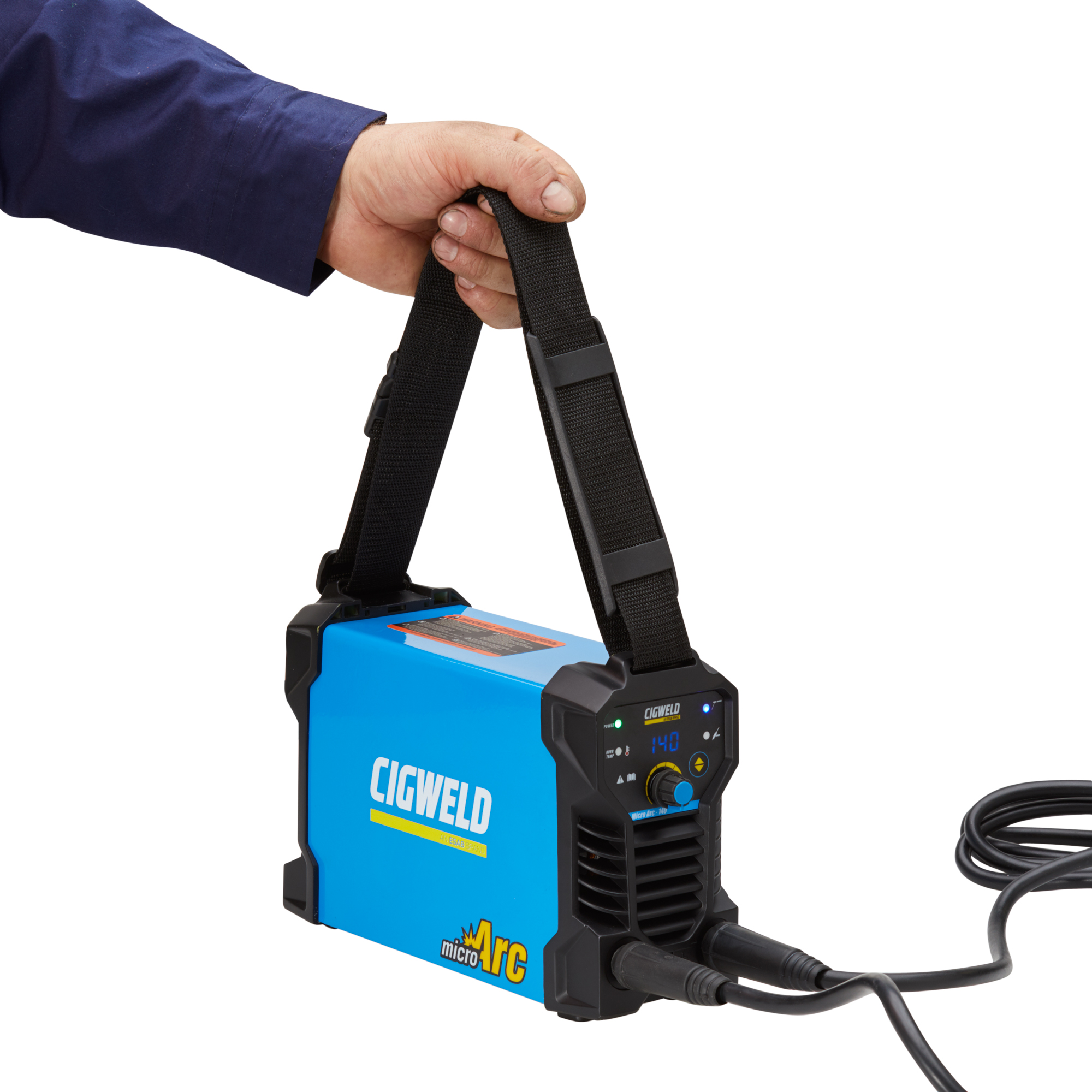

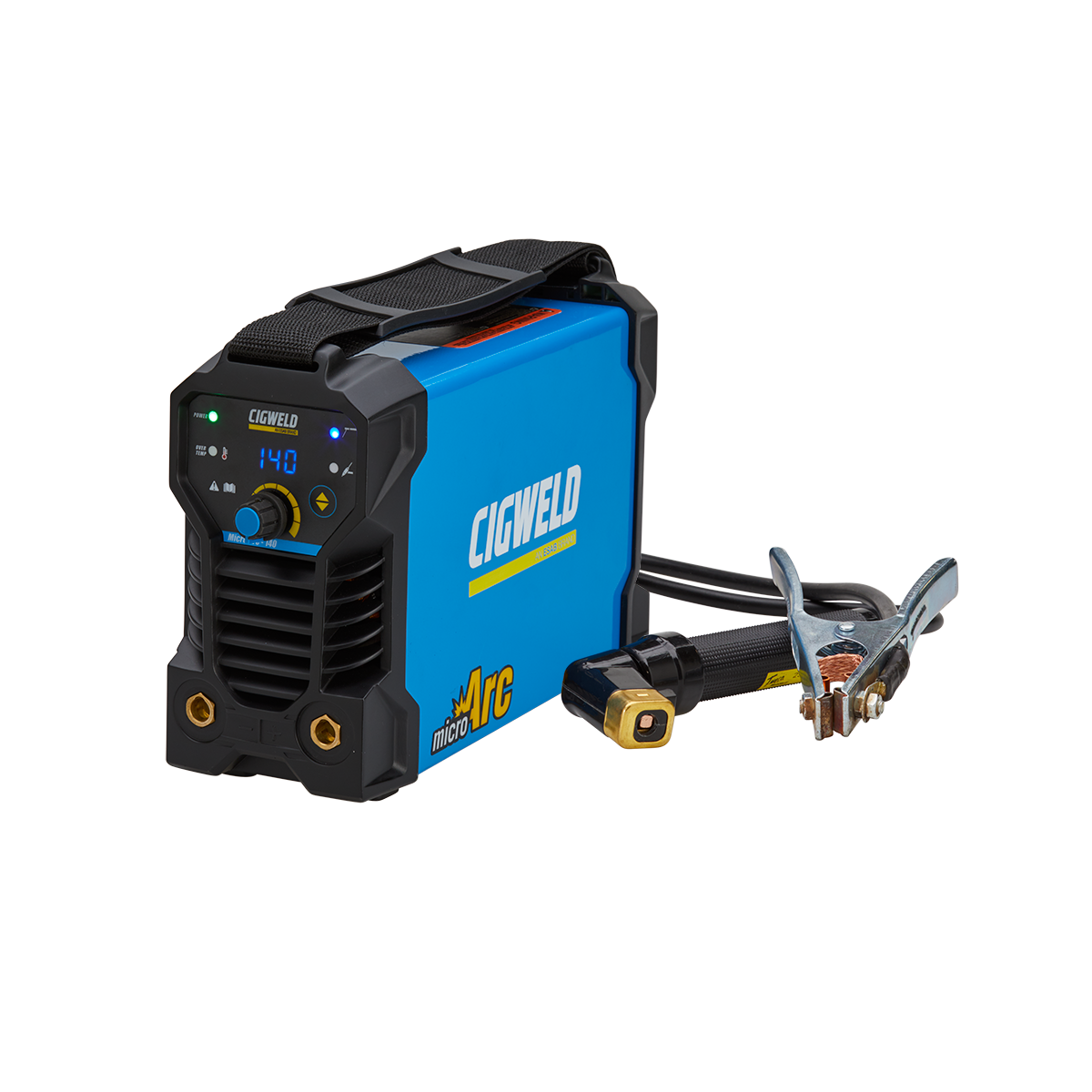

The MicroArc 140 as the name suggests is an extremely neat and compact welding inverter. Weighing in at a slight 3kg in the hand and sized at only 100mm Wide and 185mm High on your bench, this little gem is conveniently thrown over the shoulder and taken wherever you need to go. With adjustable welding current from 10 to 140 amps, and adjustable Hot Start and Arc Force, you have the flexibility to run standard general-purpose 2.5mm electrodes for light gauge work (less than 3.0mm plate) and 3.2mm electrodes for heavier metals. The MicroArc 140 also has a lift TIG function that offers stable TIG welding characteristics at 140A@20% when used with a suitable TIG torch and argon shielding gas. With a 10Amp plug and 3m twist lock electrode holder and work lead, its hard to go past the MicroArc140 as your lightweight portable welder of choice around the workshop or out on the job site What Differentiates The Microarc 140 From The Pack? SMALL SIZE & PORTABILITY – A micro 3Kg inverter in a compact 100W x 185H x 252D case with carry strap. DIGITAL BLUE LED AMP METER – Bright Blue LED’s allow for accurate setting and improved visibility of the welding amperage even outdoors & in bright light conditions. ADJUSTABLE HOT START – Improves the arc start characteristics of stick electrodes ADJUSTABLE ARC FORCE – Assists when stick welding in a tight corner or joint fit-up. TWISTLOCK ELECTRODE HOLDER – Allows quick electrode change overs and locks rods securely in place for welding. FEATURES: Input Supply - 240 Volt, 50/60Hz, 10 Amp Supply lead Fitted to Power Source. Current Range - Current Range for this Power Source is 10 to 140A Power Source provides DC welding output. STICK (MMAW): 140A @ 15% - Power Source is suitable for 2.0mm, 2.5mm, and 3.2mm electrode sizes. Suitable for all electrode types except AWS E6010 Cellulose. DC Lift TIG: 140A @ 20% - This unit features a Lift TIG function that provides smooth starting and running characteristics across a broad range of applications. A nti-Stick - Helps to prevent the stick electrode from sticking to the work piece. Adjustable Hot Start - Improves the arc start characteristics of stick electrodes. Adjustable Arc Force - Assists when stick welding in a tight corner or joint fit-up. MICRO Size & Portability - A micro 3kg inverter in a compact 100W x 185H x 252L case with carry strap. Generator - Recommended generator required: 6.0kW (7.5kVA @ 0.8 PF). T wistlock Electrode Holder - Allows the electrode to be locked securely in place. Electrode Holder & Lead - 3m Long Electrode Holder & Work Leads Over Temperature Protection - Cut out protection has been fitted to the power source. Compliance - Fully compliant to AS 60974.1-2020 enclosure rated to IP21S. Warranty - 1 Year Warranty* on Power source *Refer to Operation Manual for full details. CONTENTS: WeldSkill MicroArc 140 Power Source 3m Twistlock Electrode Holder Lead 3m Work Lead Shoulder Strap PRODUCT TESTING As part of our product development, CIGWELD rigorously test all the internal components of the welding machine and its external accessories. We make sure that the machines are not just fit for purpose, but will handle tougher than expected working conditions. Additionally, we also conduct weld tests on various common metals, using the expertise of our local technical team ensuring that the settings you use on our machines are tuned to local conditions.
