UNIMIG Razor Cut 45 Plasma Cutter U14006K

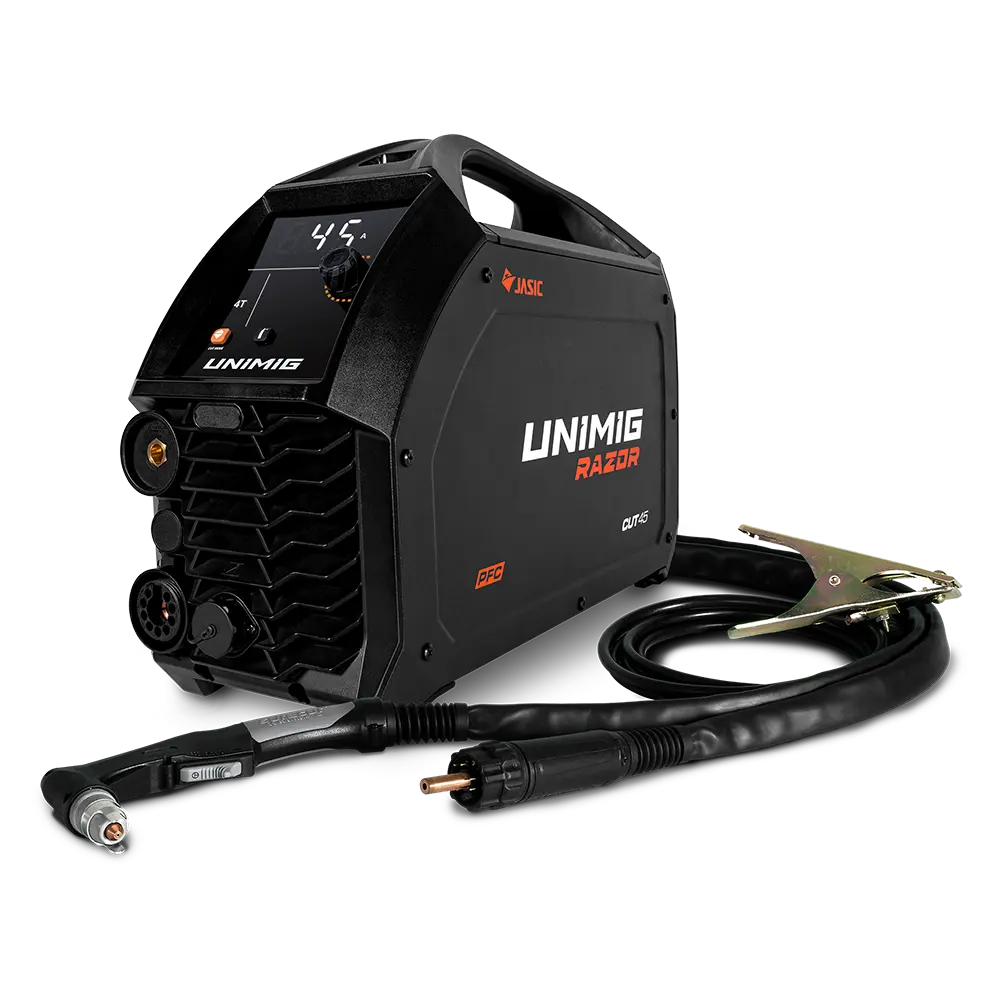

UNIMIG Razor Cut 45 Plasma Cutter U14006K — image 1
Get a professional-grade plasma cutter in a portable body with all the power you need. 16mm clean cuts and 25mm cutting capacity The CNC connection means you can use this machine for every kind of plasma application Cut anything with the perforated cut mode A 5-year warranty to reflect our confidence in this machine
SKU:U14006K
AU$1,526.95
In Stock

Pay in 4 interest-free payments of $381.74

No fees · Available at checkout

OPTIONS

UNIMIG Viper Cut 30 Mk II Plasma Cutter U14005K

UNIMIG Viper Cut 30 Mk II Plasma Cutter U14005K

AU$689.00

+
UNIMIG Razor Cut 80 Plasma Cutter U11023

UNIMIG Razor Cut 80 Plasma Cutter U11023

AU$2,154.95

+
UNIMIG Razor Cut 80 Air Compressor U11165

UNIMIG Razor Cut 80 Air Compressor U11165

AU$499.95

+
UNIMIG Razor Cut 45 Air Compressor U14007

UNIMIG Razor Cut 45 Air Compressor U14007

AU$389.00

+

  • 16mm Clean Cut Capacity
    Delivers clean cuts up to 16mm on mild steel with a maximum severance capacity of up to 25mm, making it suitable for fabrication, repair and industrial cutting applications.

  • CNC Connectivity
    Built-in CNC interface allows the machine to connect directly to CNC plasma tables for automated, repeatable and precision cutting applications.

  • Perforated Cut Mode
    Specialised perforated cutting mode improves cutting performance on expanded mesh, perforated metal and interrupted surfaces by maintaining arc consistency.

  • Gouging Mode
    Capable of plasma gouging for weld removal, defect clean up and surface preparation applications.

  • Pilot Arc Start
    Pilot arc ignition allows cutting without direct tip contact to the workpiece, enabling easy cutting through painted, rusty or scaled materials while extending consumable life.

  • HD Backlit Control Panel
    High-definition backlit display presents cutting parameters in a clean, easy-to-read layout with simple controls for fast and intuitive setup adjustments.

  • Advanced IGBT Inverter Technology
    Modern IGBT inverter platform delivers higher efficiency, faster response to cutting demand changes, improved arc stability and reliable performance.

  • Active Airflow System
    Dedicated airflow channel helps cool the machine while limiting dust exposure to internal electronics, improving reliability and extending component life.

  • Smart Fan Technology
    Cooling fan operates only when required, reducing noise, lowering power consumption and minimising dust intake into the machine.

  • Optional Air Compressor Module
    Optional air compressor module provides a fully self-contained air supply for light-duty cutting applications, improving portability and convenience.

  • Power Factor Correction (PFC)
    PFC technology improves electrical efficiency, stabilises output under fluctuating supply conditions and maximises usable input power.

  • 2T/4T Trigger Modes
    Selectable trigger modes improve torch control and comfort, particularly during long continuous cuts.

  • 15A Plug
    Powered by a 240V single-phase 15A supply, allowing use in workshops and industrial job sites without requiring three-phase power.

  • Portable Lightweight Design
    Compact 10kg body makes the machine easy to transport between workshops, fabrication jobs and mobile site work.

  • Industrial Duty Performance
    Designed for workshop, fabrication, automotive, maintenance and light industrial applications requiring reliable plasma cutting performance.

  • Wide Material Compatibility
    Cuts electrically conductive materials including mild steel, stainless steel, aluminium, copper, brass and cast iron.

  • High-Quality SC80 Plasma Torch
    Supplied with a professional-grade 6m SC80 plasma torch featuring stable arc performance, reliable starts and long consumable life.

  • IP23S Protection Rating
    IP23S-rated housing provides increased protection against environmental conditions commonly encountered in workshops and industrial sites.

  • Thermal Overload Protection
    Integrated over-temperature protection system helps prevent machine damage during heavy-duty operation.

  • 5-Year Warranty
    Backed by a 5-year manufacturer warranty, reflecting UNIMIG’s confidence in the machine’s durability and reliability.

  • Community Reputation for CNC & Workshop Use
    Australian welding and CNC users on Reddit commonly reference the Razor Cut 45 platform as a popular option for home CNC plasma tables and workshop fabrication due to its CNC compatibility and 15A operation.
