The UNIMIG Stealth 1200 CNC Plasma Table U11097 is a genuine UNIMIG product for professional welding and fabrication. UNIMIG is Australia's leading welding brand, trusted by tradespeople and fabricators for reliable performance and strong Australian support.
Automatic Torch Height Control continuously maintains the optimal height for the best quality across the whole cut
The touchscreen computer comes with our in-house, custom-designed UNIMIG Arc Path CNC Control software
In the box:
CNC Table
Z Axis
Control Box
Touchscreen PC
PC Arm
Automatic Height Controller
Drag Chains
Caster Feet
Material Slats
Lift Hooks
Arc Path CNC Control Software
The 21 inch touchscreen computer comes mounted on a fully adjustable arm and runs our in house Arc Path software. Arc Path accepts G Code files directly or you can load designs from USB or a shared network folder. It also includes CAM nesting powered by FLCAM for DXF files, with a Fusion post processor available for a seamless workflow.

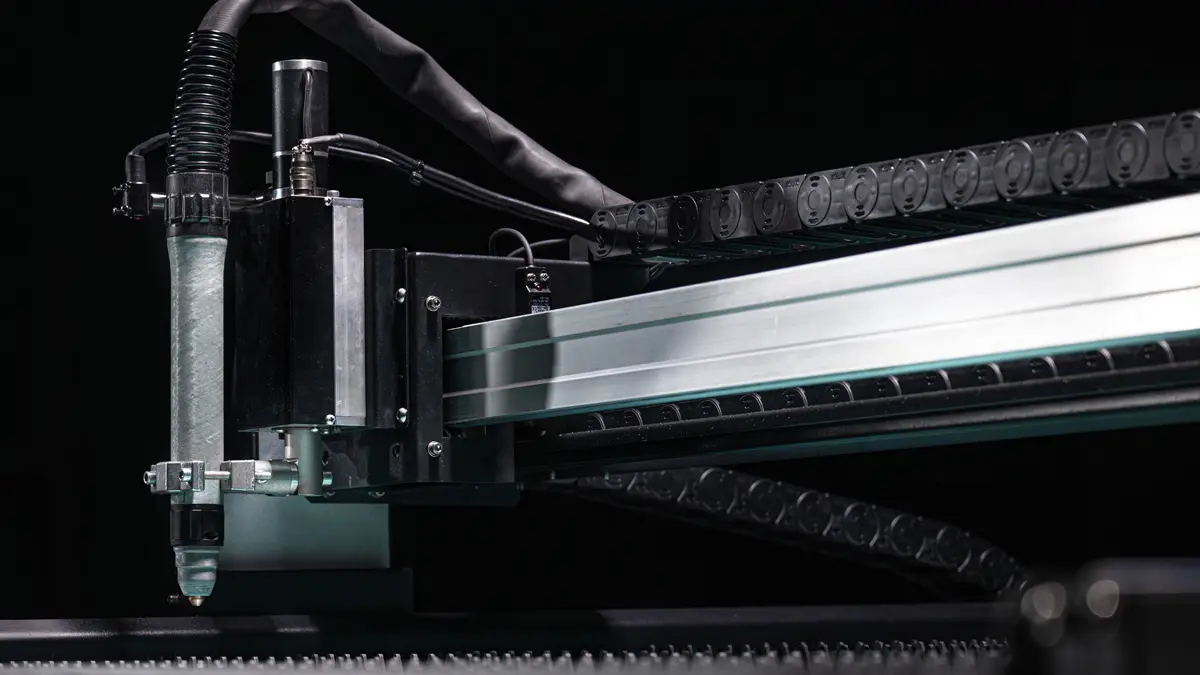

Automatic Torch Height Control

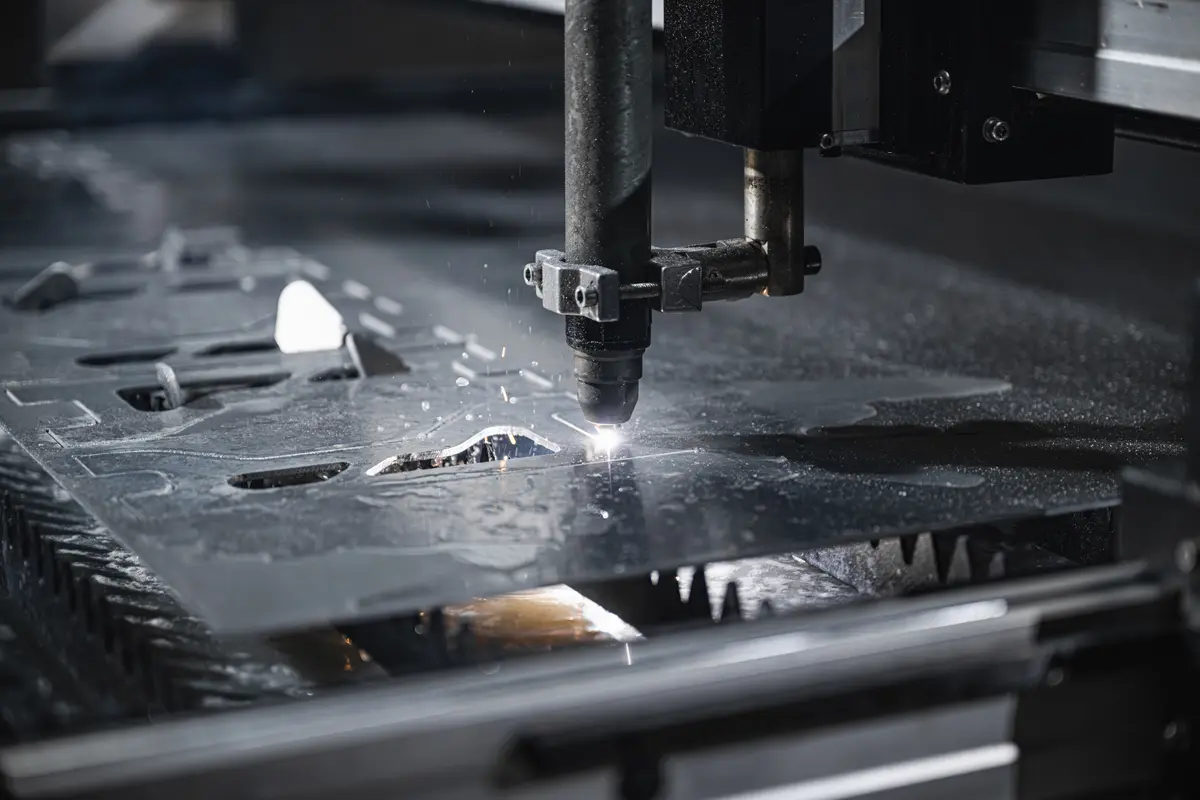

The system monitors the arc in real time and adjusts the torch height as you cut. By keeping the torch at the ideal distance, you get consistent cut quality, reduced dross, longer consumable life and faster cutting speeds.
Half Sheet Coverage
The STEALTH 1200 delivers a genuine 1.2 x 1.2 metre cutting area, with 1.23 x 1.22 metres of gantry travel. You can cut right to the edges of a half sheet with full coverage and no lost working space.
Integrated Water Bed and Slat System
A fully sealed, laser welded water bed absorbs sparks and suppresses fumes during cutting. Two valve controlled drainage points make water removal efficient. Laser cut mild steel slats fit into precision cut slots, allowing individual slats to be replaced without dismantling the table.
Adjustable Sighting Laser
An adjustable offset sighting laser gives you a clear, constant visual of your pierce point and plate alignment. Set your cut position with confidence and remove the guesswork from every job.
Automatic Collision Detection and Limiter Switches
A combination of sensors, active monitoring software and limit switches prevents the table from moving beyond its defined motion range. When a collision risk is detected, the system stops the machine immediately to protect critical components.
Maximise Your Production
The STEALTH 1200 CNC delivers efficient part production in a compact footprint. Nest your parts cleanly, reduce material waste and complete more projects without the space requirements of a larger table.
The rack and pinion systems on the X & Y axes provide consistent and precise linear movement. Made from hardened steel, theyʼre resistant to wear and deformity, prolonging their lifespan and minimising the need for maintenance. The rack's teeth are straight cut, which distributes the load uniformly across the tooth face and contributes to their precision and reliability. Plus, their inverted position helps protect them from dust, chips, and other contaminants, preventing downtime.
Easily move the table using the swivel caster wheels and achieve easy and precise table level across most surfaces with the adjustable levelling feature on the wheels.
