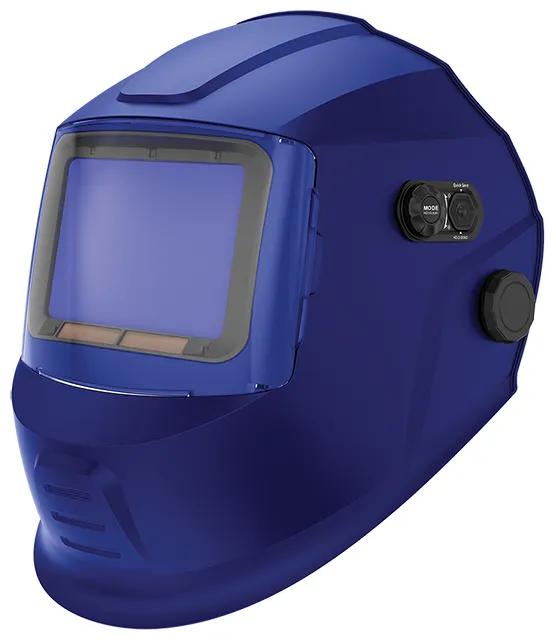

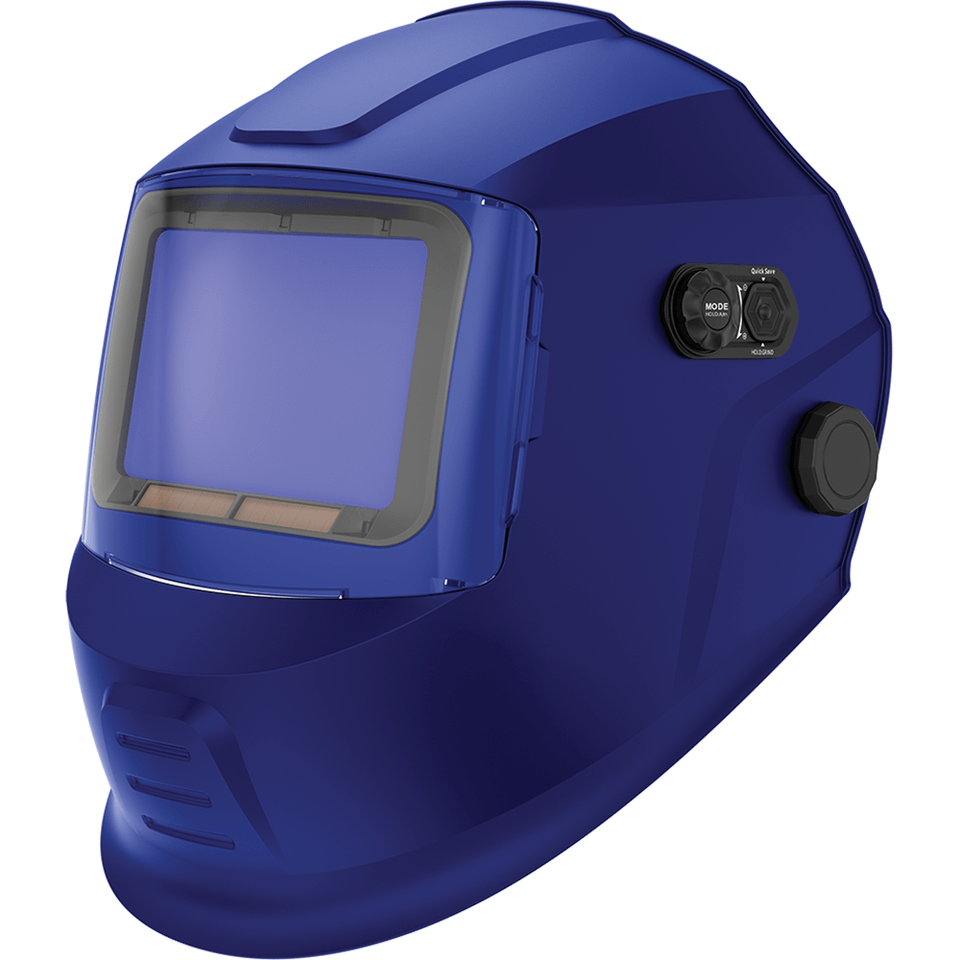

Weldclass PROMAX 680 Auto-Darkening Welding Helmet, Digital, Matte Blue

Weldclass PROMAX 680 Auto-Darkening Welding Helmet, Digital, Matte Blue

The Weldclass PROMAX 680 is one of the new generation 600 series digital auto-darkening welding helmets built for welders who take pride in their work. It offers an enormous 95cm2 landscape view with ultra-crisp V1 (1/1/1/1) optics, illuminated self-dimming LCD controls, external and internal controls, auto shade, auto delay and auto sensitivity, gradient mode, shade lock and tack mode. The PROMAX 680 averages 9.64 out of 10 from Weldclass customer reviews. Wrap-around headgear with a moulded rear pressure pad keeps it comfortable on long shifts, and the solar-assisted electronics with a replaceable battery give reliable switching day after day. This listing is the Matte Blue finish (part WC-05344).

Key Features

• Enormous 95cm2 landscape viewing area (116 x 82mm)
• Ultra-crisp V1 (1/1/1/1) rated optics with enhanced colour recognition
• Illuminated self-dimming LCD controls
• External and internal controls for shade and all modes
• Auto shade, auto sensitivity and auto delay, or manual
• Memory saves up to 9 favourite settings
• Gradient mode, shade lock and tack mode
• Wrap-around headgear with moulded rear pressure pad
• Light weight 620g, up to 10% lighter than other digital wide-view helmets
• Replaceable battery plus solar assist, full-laminate lens
• Magnification lens holder

Specifications

• Viewing area: 95cm2 (116 x 82mm landscape)
• Optical class: V1 (1/1/1/1)
• Welding shade: Variable 9-14
• Cut mode: Shade 4-8
• Grind mode: Shade 3
• Shade lock: Shade 4-13
• Tack mode: Returns to shade 5
• Delay: Auto or manual 0.1-1.0s
• Sensitivity: Auto or manual 0-9
• Memory: 9 settings
• TIG rating: Down to 5 amps
• Weight: 620g
• Standards: AS/NZS 1337.1 (impact), AS/NZS 1338.1 (lens)
• Colour / design: Matte Blue
• Part number: WC-05344

What's in the Box

• PROMAX 680 welding helmet (Matte Blue)
• Auto-darkening lens fitted
• Headgear
• Inner and outer cover lenses fitted

Applications

• MIG and flux-cored welding
• Stick (MMA) welding
• TIG welding down to 5 amps
• Plasma cutting and air arc gouging
• Grinding (grind mode)
• Oxy cutting, brazing and heating (cut mode / shade lock)

Warranty

The auto-darkening lens is backed by the Weldclass conditional 7 year warranty offer when the helmet is registered online with Weldclass within 30 days of purchase. Headgear and shell parts carry a 3 month warranty, and spatter damage to the lens caused by not replacing cover lenses is not covered.
