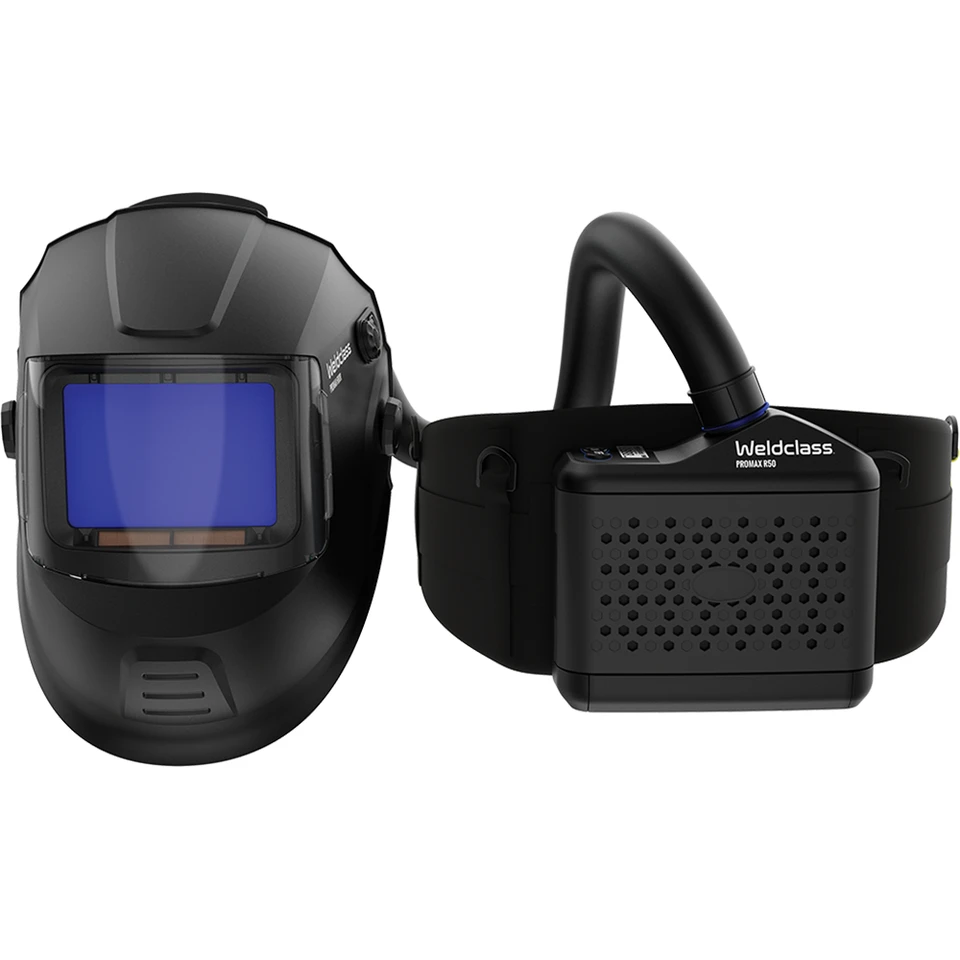

Weldclass PROMAX 680R PAPR Welding Helmet with R50 Powered Air Respirator
The PROMAX 680R combines a next-generation Weldclass auto-darkening welding helmet with the PROMAX R50 battery powered air purifying respirator (PAPR). Filtered air is fed into the helmet, keeping you cool and protected from welding fume particles, while the huge 95cm2 landscape lens with V1 rated optics gives a crisp, true-colour view of the weld pool. External controls let you adjust shade and every mode without removing or lifting the helmet, and the helmet weighs just 860g. It is a complete fume protection system for welders who spend long shifts on MIG, flux-cored, stick or TIG work and need respiratory protection without the hassle of a separate mask.
Key Features
- Integrated PROMAX R50 PAPR respirator supplies purified air to the helmet
- 3-stage filtration: main TH3 (P3) particle filter, carbon prefilter for nuisance odours and a spark filter
- Audio, visual and vibration alerts for filter replacement or airway restriction
- Li-ion battery runs 10 hours or more at 170 L/min (6 hours or more at 230 L/min)
- Enormous 95cm2 landscape viewing area (116 x 82mm) with V1 (1/1/1/1) optics and enhanced colour recognition
- Illuminated self-dimming LCD controls with memory, cut mode, gradient mode and shade lock
- Auto or manual shade, sensitivity and delay adjustment
- Removable shoulder harness, use with waist belt only if preferred
- External controls for shade adjustment and all modes, plus grind mode button
Specifications
- Welding shade: Variable 9-14
- Cut mode: Shade 4-8
- Grind mode: Shade 3
- Shade lock: Shade 4-13 for oxy cutting and similar processes
- Delay: Auto or manual 0.1-1.0s
- Sensitivity: Auto or manual 0-9
- TIG rating: Down to 5 amps
- Respirator filter class: TH3 (P3), 99.8% or better particle purity
- Airflow: 170 / 200 / 230 L/min
- Battery run time: 10+ hours at 170 L/min, 6+ hours at 230 L/min
- Weight: Helmet 860g, helmet with respirator 1.79kg
- Standards: Helmet AS/NZS 1337.1, lens AS/NZS 1338.1, respirator AS/NZS 1716
- Part number: WC-06700
What's in the Box
- PROMAX 680R PAPR welding helmet
- PROMAX R50 PAPR blower unit with battery
- Battery charger
- Waist and shoulder belt / harness
- Hose with FR cover
- Clear lens starter pack
- Air flow meter / tester
- Heavy-duty carry bag
Applications
- MIG, flux-cored, stick and TIG welding
- Grinding, plasma cutting and air arc gouging
- Oxy cutting, brazing and heating
- Confined or poorly ventilated workshops and production welding cells
Warranty
The auto-darkening lens is backed by the Weldclass conditional 7 year warranty offer when registered online within 30 days of purchase. The R50 blower unit carries a 2 year warranty and the battery and charger 1 year.
