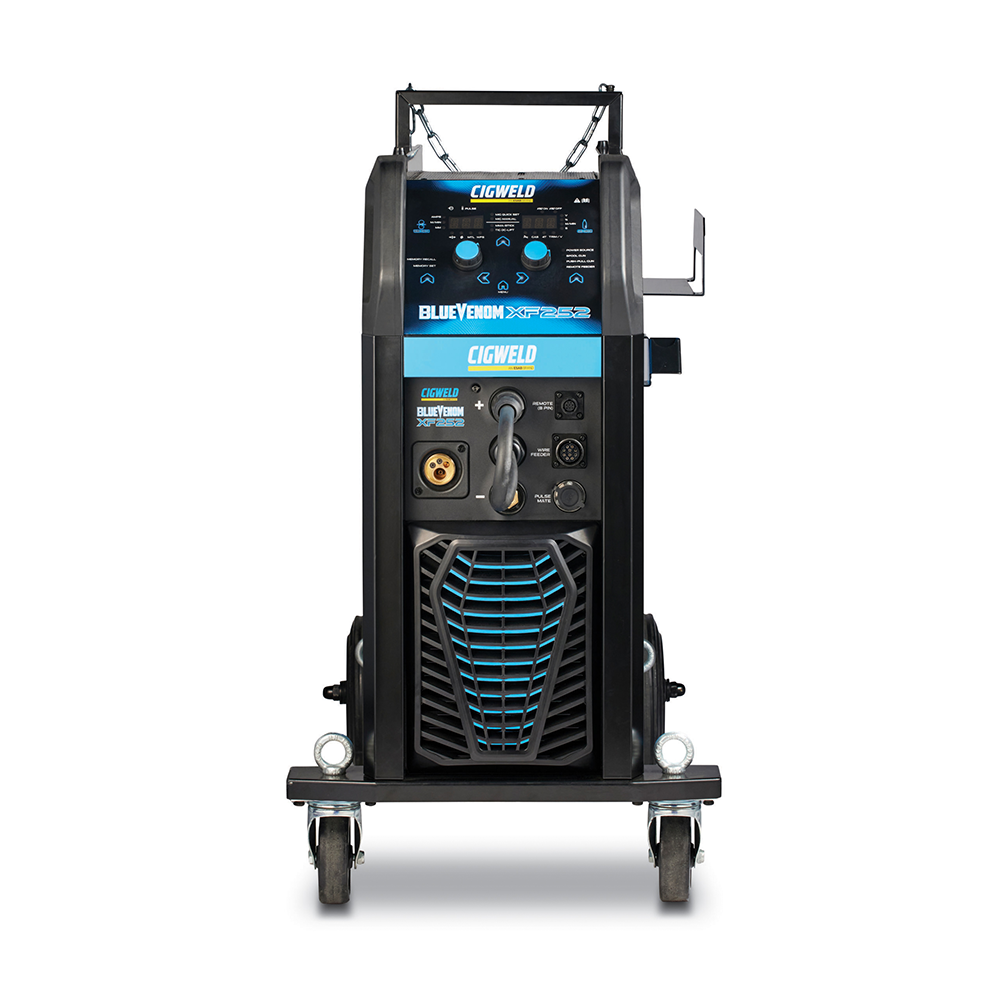

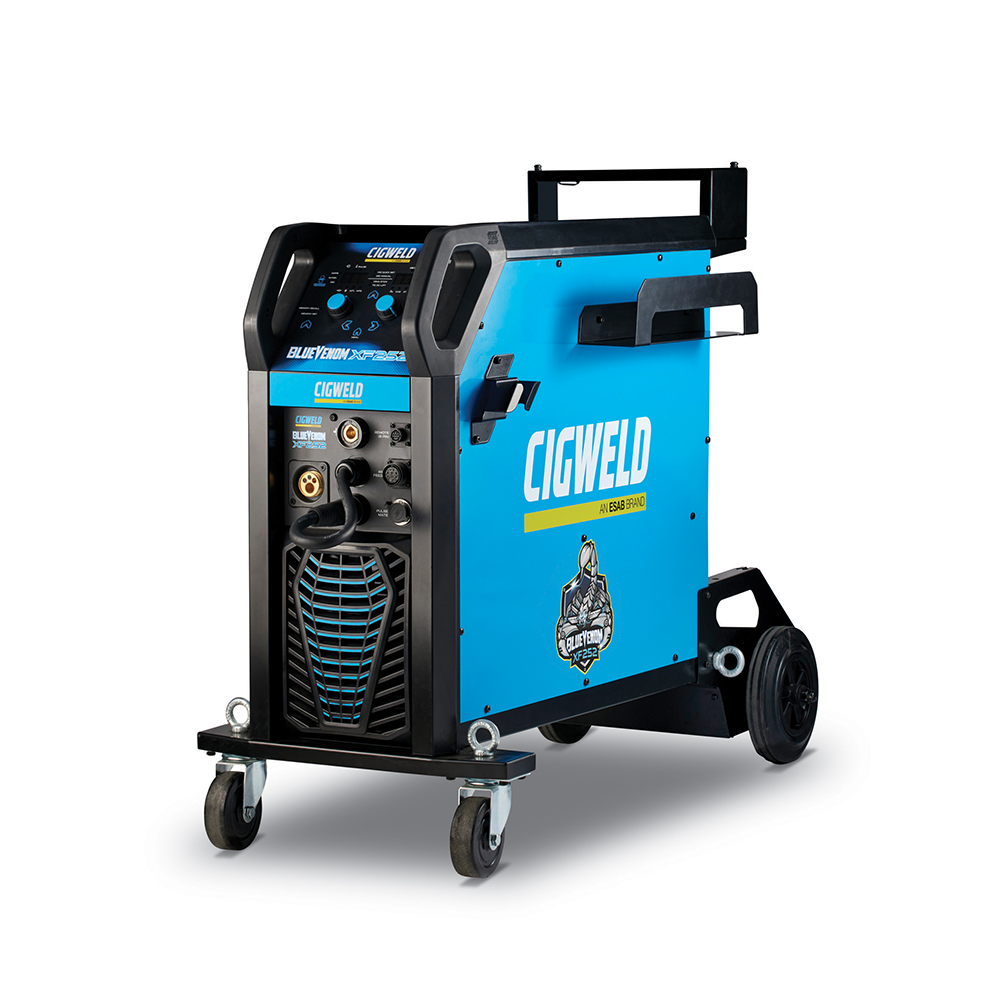

Cigweld BlueVenom XF252 - Multiprocess Welding Inverter -

The XF252 can deliver awesome arc characteristics in the most popular processes of, MIG – QuickSet & Manual modes, Gas & Gasless operation, Single & Double Pulse MIG with the optional PulseMate, STICK (MMA with VRD for extra safety) and TIG DC-Lift welding modes. Additionally, this machine has the following features

• •• 4x Roll Wire Drive system • 300mm Diameter Spool Capability and includes 200mm spool adapter •

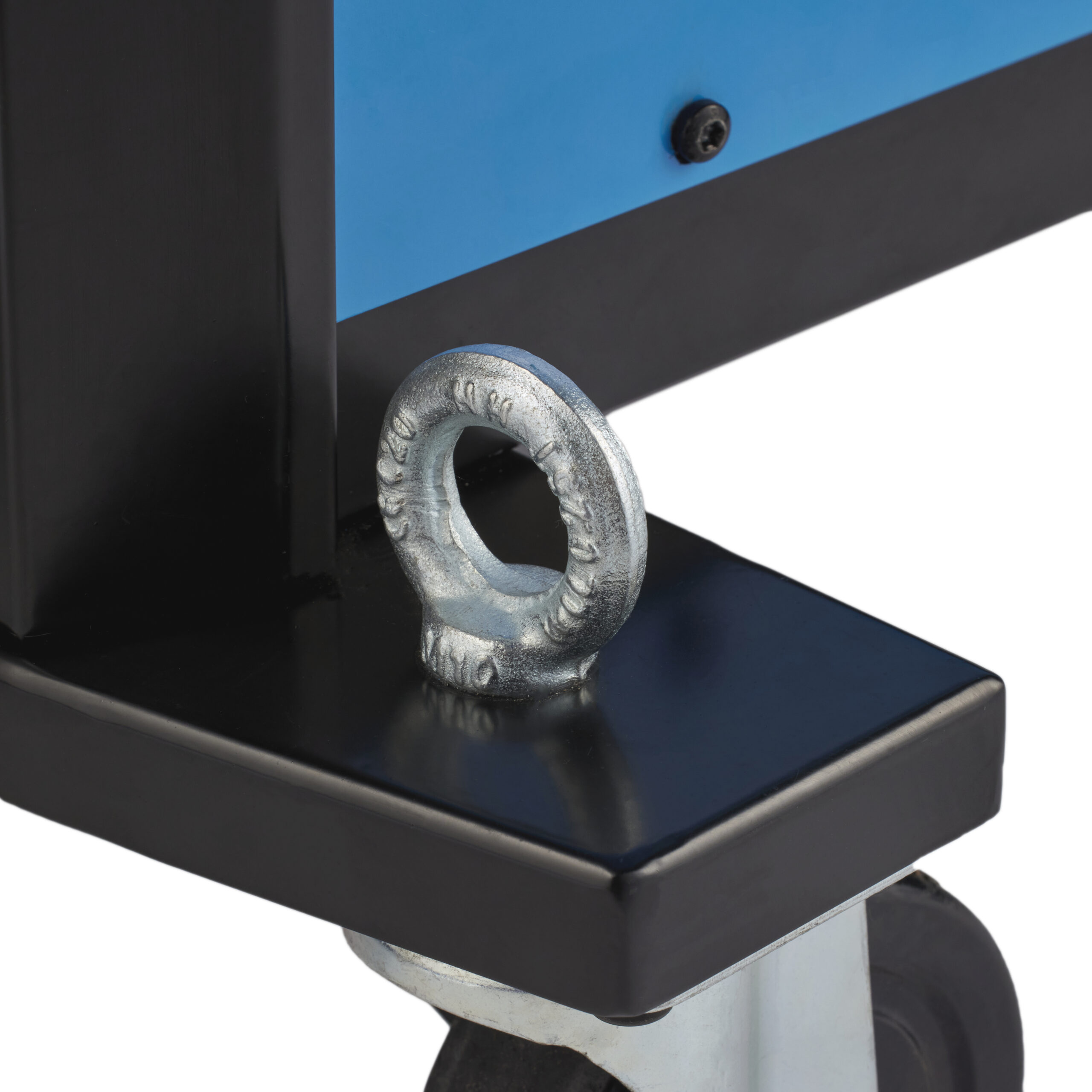

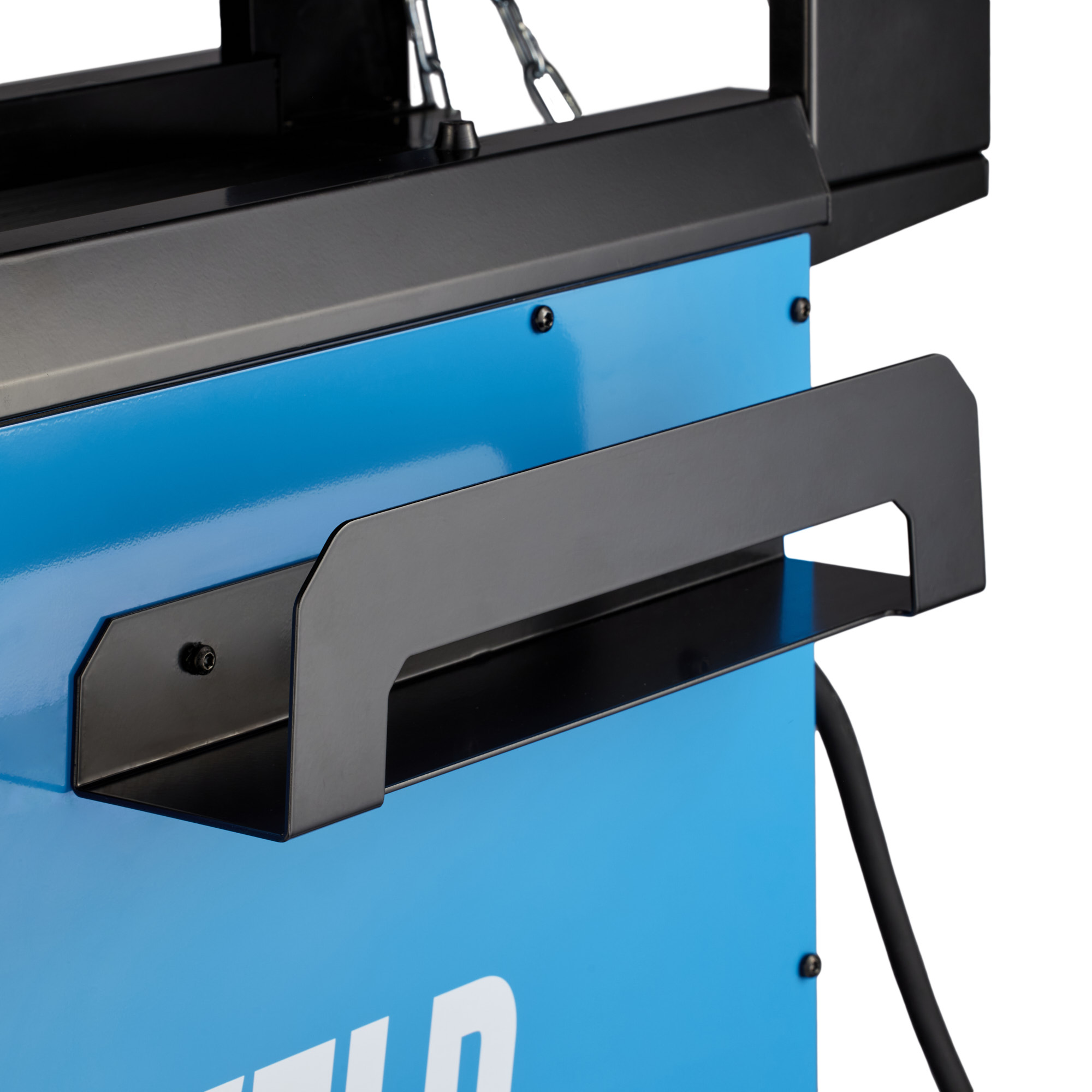

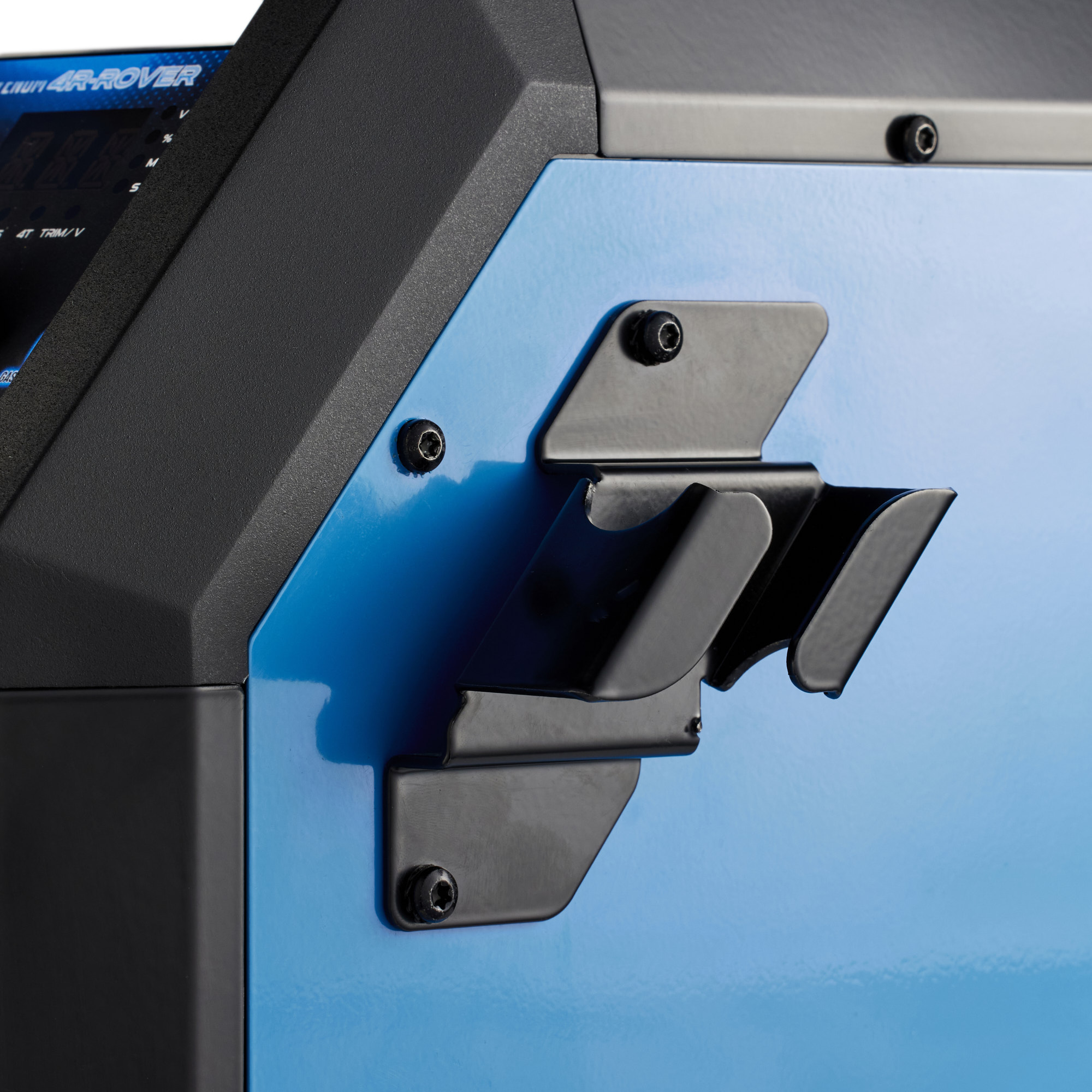

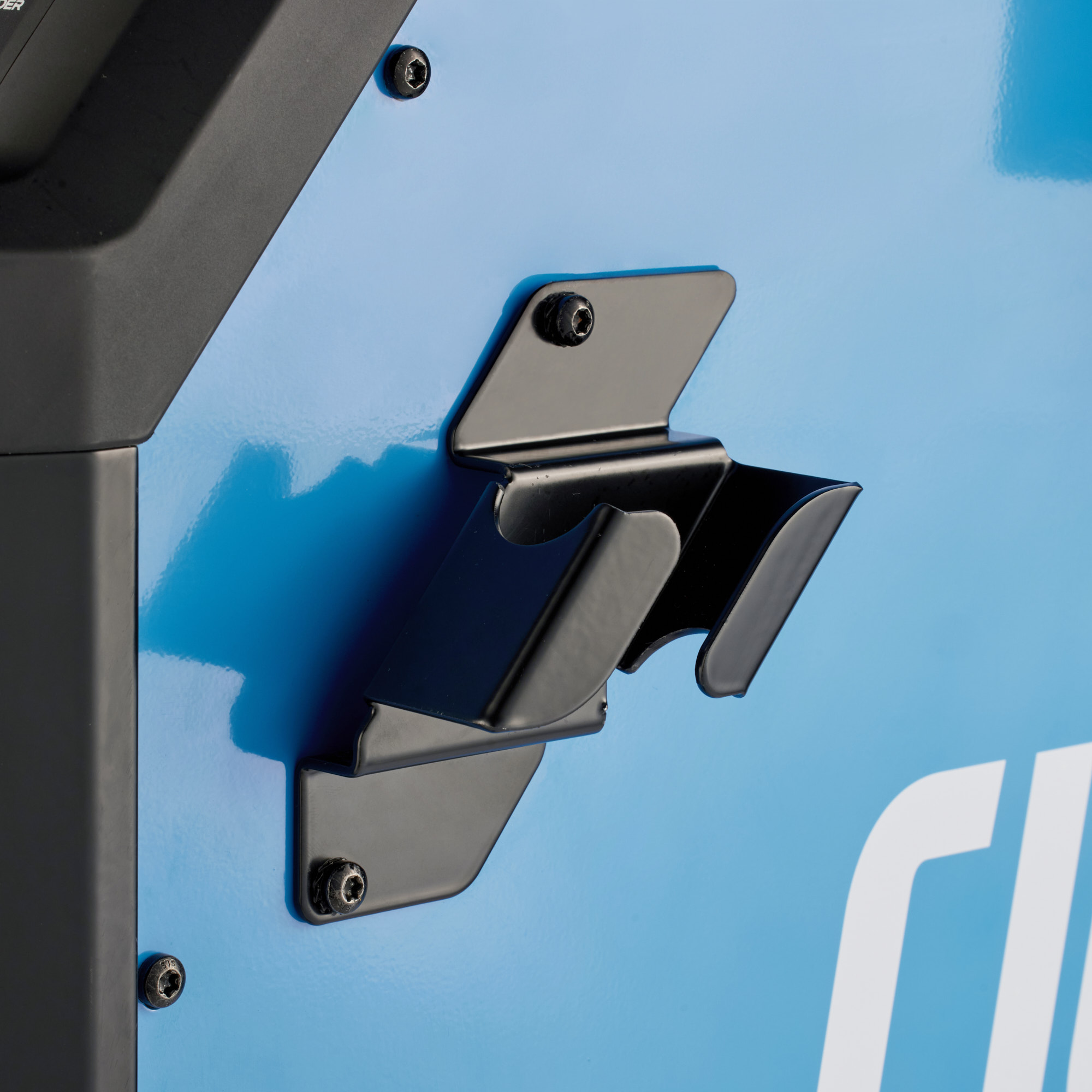

• •MIG Gun holder and cable management bracket • Engineered Gas Cylinder holder for up to ‘G’ Size cylinders • 4-Point Lifting Lugs for safer and convenient maneuverability • Locking brackets for 4R-Rover to avoid wire feeder sliding •
• •MIG Adjustable Wire Burnback •
• •MIG Crater Fill function in 2T & 4T •
• •MIG Side door wire installation, side loader •

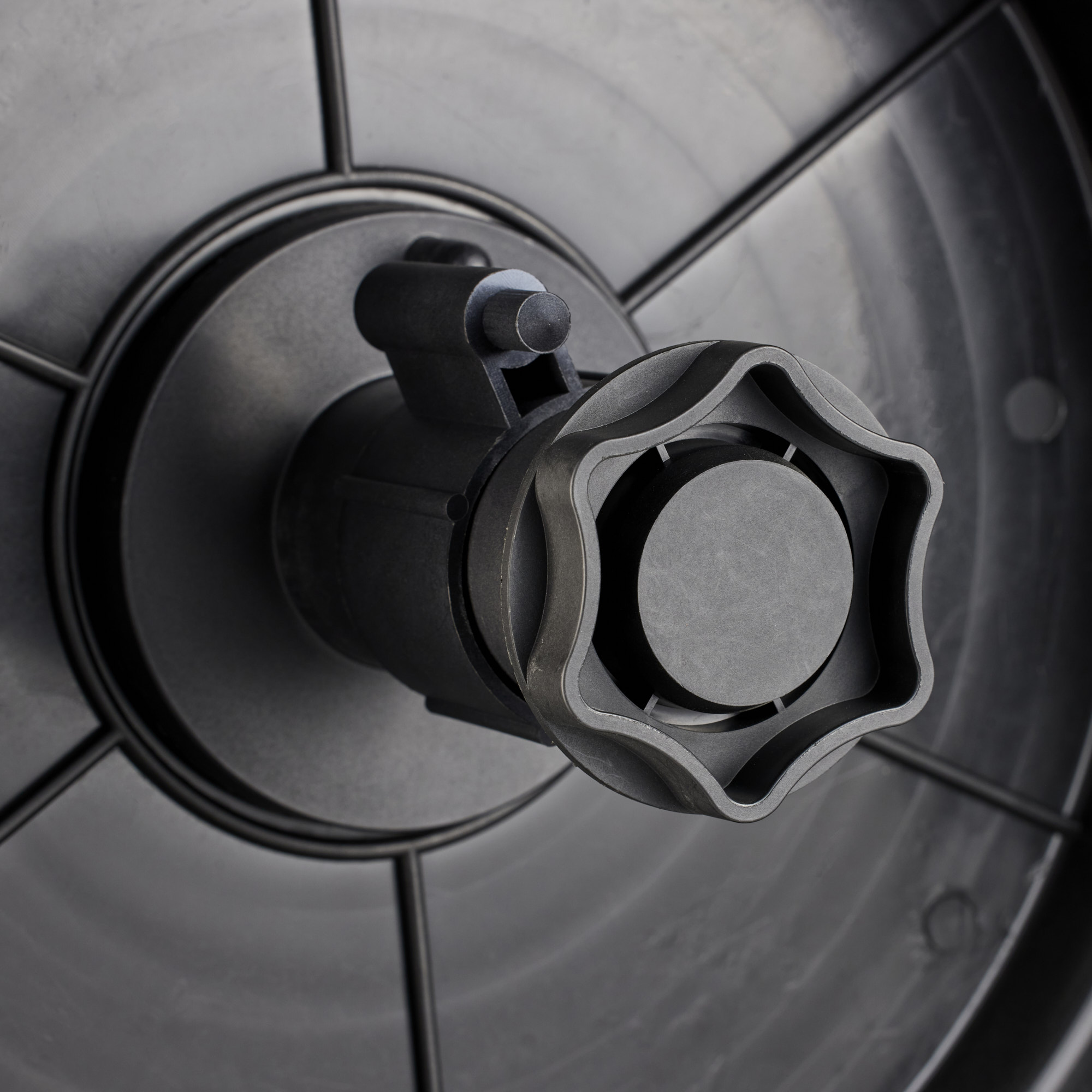

• •MIG Anti de-spooling safety feature •
• •MIG PulseMate , Spool Gun & Push-Pull Gun Compatible •
• •STICK with Voltage Reduction Device (VRD) built-in for Safe Welding •
• •STICK Hot Start •
• •STICK Arc Force •
• •TIG Foot Control Compatible •
• •TIG Dial Remote Torch Compatible

DESIGNED, DEVELOPED & TESTED IN AUSTRALIA

! The new BlueVenom XF252 is a 3-in-1 multiprocess welding inverter that has been specifically engineered to be narrower in size for easy access in tight and constrained areas but also as a modular arc station!

EASY TO SET FOR PROFESSIONAL RESULTS

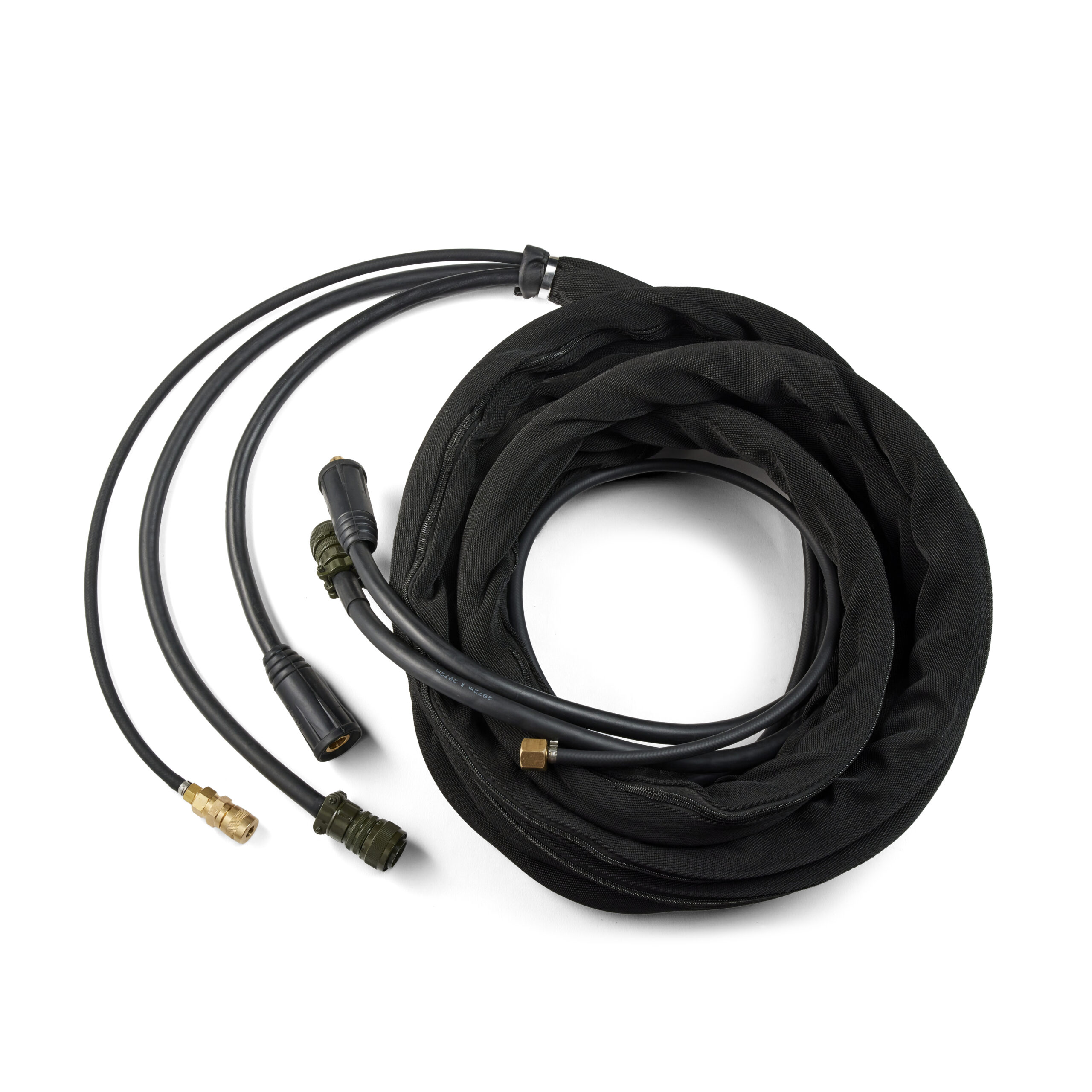

Here’s the kicker – want Pulse? Of course you do! Turn your XF252 arc station into a single and double pulse work horse! Simply plug in the hand-held PulseMate pendant (sold separately) equipped with 8m of lead into the XF252 machine or 4R-Rover and start getting TIG like looking welds through our simple yet intuitive SimplePulse MIG system! ALL-NEW 4R-ROVER™ To take it a step further, the XF252 can connect to the All-New 4R-Rover remote wirefeed system (sold separately) – a plug n’ play, 4 Roll wire drive unit that you can setup where you need it. Need it on a gantry or boom? No problem, with the 8m interconnection cable and in-built hanging mount, you can! PLUS, its designed specifically with a low mount handle making this little gem as compact a 300mm wire spool system can be! *

SOLD SEPARATELY ALL NEW PULSEMATE

™ Here’s the kicker – want Pulse? Of course you do! Turn your XF252 arc station into a single and double pulse work horse! Simply plug in the hand-held PulseMate pendant (sold separately) equipped with 8m of lead into the XF252 machine or 4R-Rover and start getting TIG like looking welds through our simple yet intuitive Simple Pulse MIG system! *

SOLD SEPARATELY XF

252

PACKAGE CONTENTS

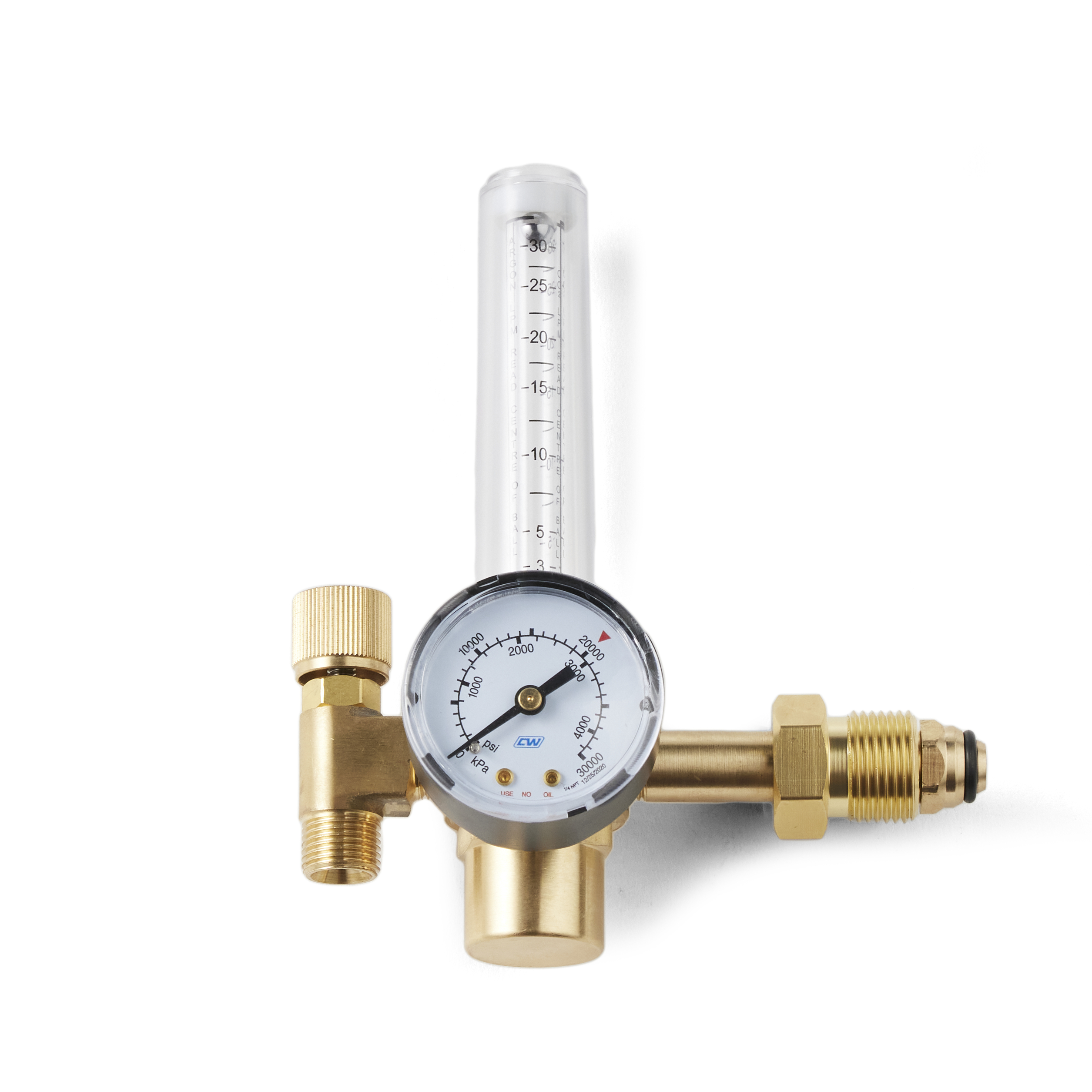

• •BlueVenom XF252 Power Source • MIG Gun BZ36 “Style”, 4m, Euro • Work Clamp 300A with 4m Lead • Twistlock Electrode Holder 400A with 4m Lead • Feed Rolls: 0.9/1.2mm V Groove (fitted), 1.0/1.2mm U Groove, 0.9/1.2mm Gasless Knurled • Gas Regulator/Flowmeter • Quick Connect Gas Hose 3m • Operating Manual

WARRANTY PERIOD

3-Year conditional warranty. See terms and conditions at cigweld.com.au or in the Operating Manual, included with the machine

ORDERING DETAILS

Get the Full Package (sold separately): BlueVenom 4R-ROVER Wirefeeder – P/N: W3200401 BlueVenom PulseMate – P/N: W4200PM1 BZL36 Push-Pull Gun, 8m – P/N: W52BP36E8 BZL24 Spool Gun, 6m – P/N: W52BS24E6 P/N: W1400252

PRODUCT TESTING

As part of our product development, CIGWELD rigorously test all the internal components of the welding machine and its external accessories. We make sure that the machines are not just fit for purpose, but will handle tougher than expected working conditions. Additionally, we also conduct weld tests on various common metals, using the expertise of our local technical team ensuring that the settings you use on our machines are tuned to local conditions.
