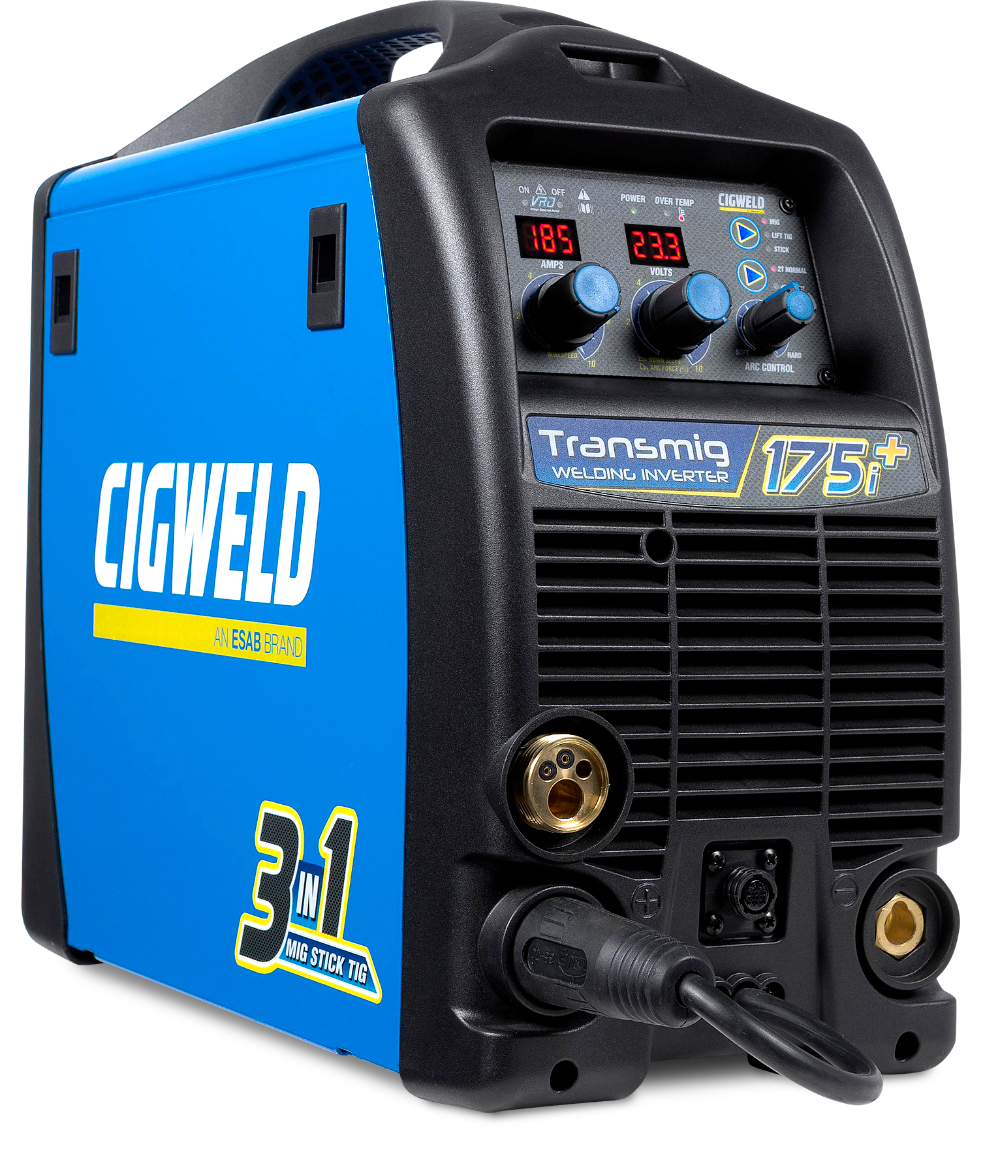

Cigweld TransMIG 175i+ - Multiprocess Welding Inverter - 240V

The

CIGWELD TRANSMIG

• •175i+ is a self-contained single phase multiprocess welding inverter that is capable of performing GMAW/FCAW (
• •MIG), MMAW (Stick) and GTAW (Lift
• •TIG) welding processes. The unit is equipped with an integrated wire feed unit, voltage reduction device (VRD applicable in Stick mode only), digital voltage and amperage meters, and a host of other features in order to fully satisfy the broad operating needs of the modern welding professional. 185A (
• •MIG Mode) 3-in-1
• •MIG / Stick / Lift
• •TIG Inverter Welder Digital Amperage and Voltage Meters Highly portable with carrying handle, carry strap and under 15kg Full multi-process capabilities;
• •MIG, Stick and Lift
• •TIG Integrated Wire Feed Unit ‰ Spools up to 5kg or 200mm Standards compliant VRD Fully compliant to AS 60974.1-2006. Enclosure Rated to IP23S – Designed for Indoor & Outdoor use. Arc Control (Inductance) for adjusting the intensity of the arc Adjustable Burnback Control for controlling
• •MIG wire stick out Euro
• •MIG Torch Connection Accepts Mechafin style 2R feed rolls Robust 50mmå_ Dinse twist lock connections 3 Year Limited Warranty

PACKAGE INCLUDES

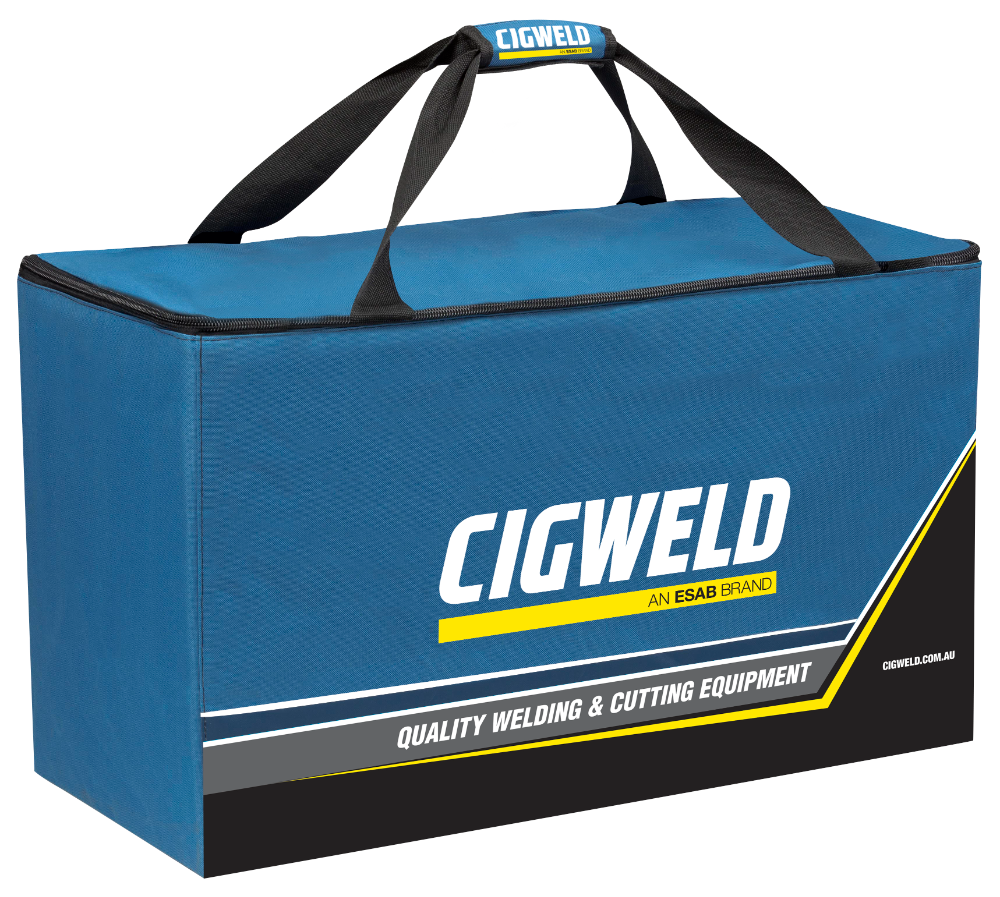

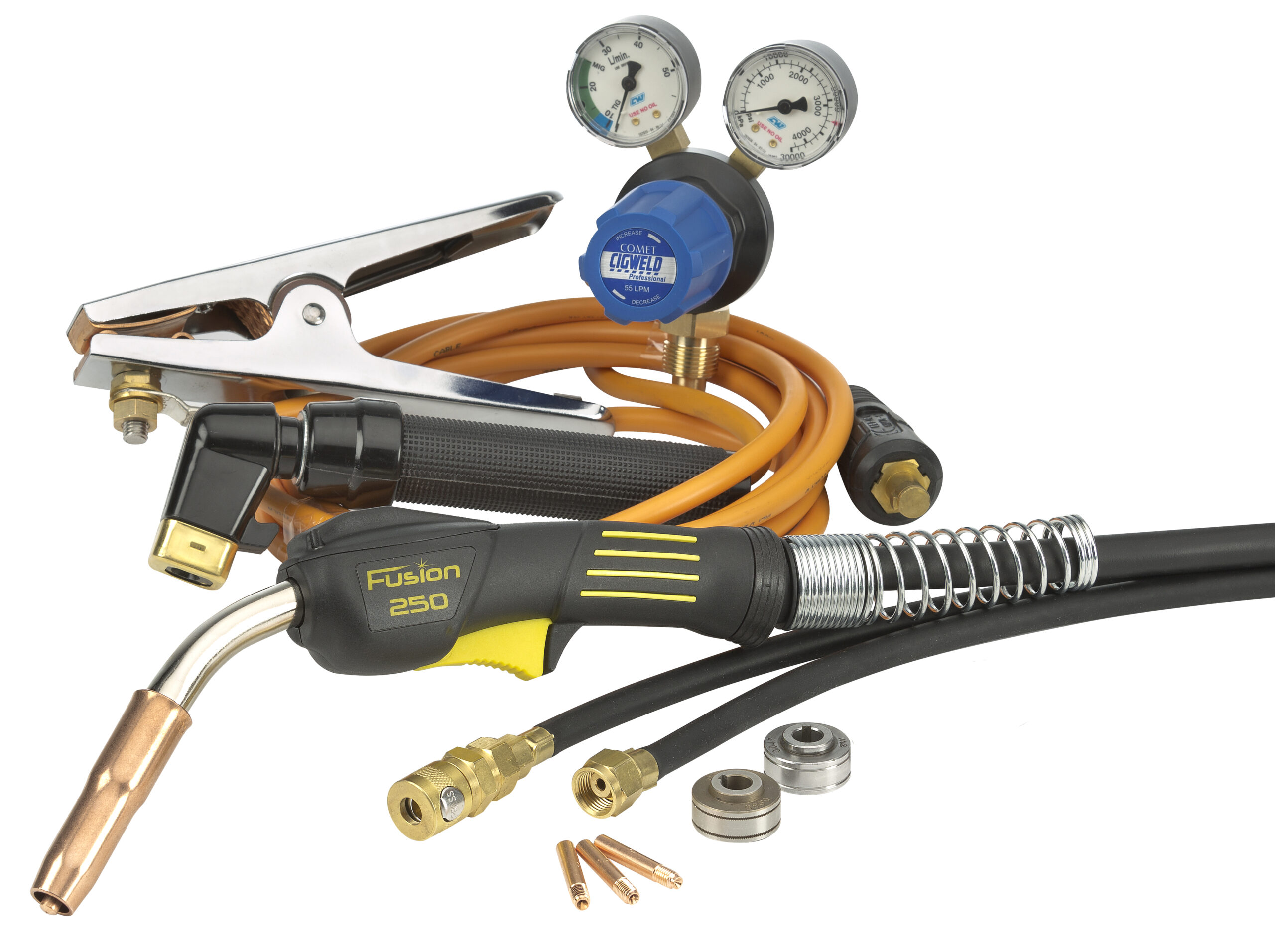

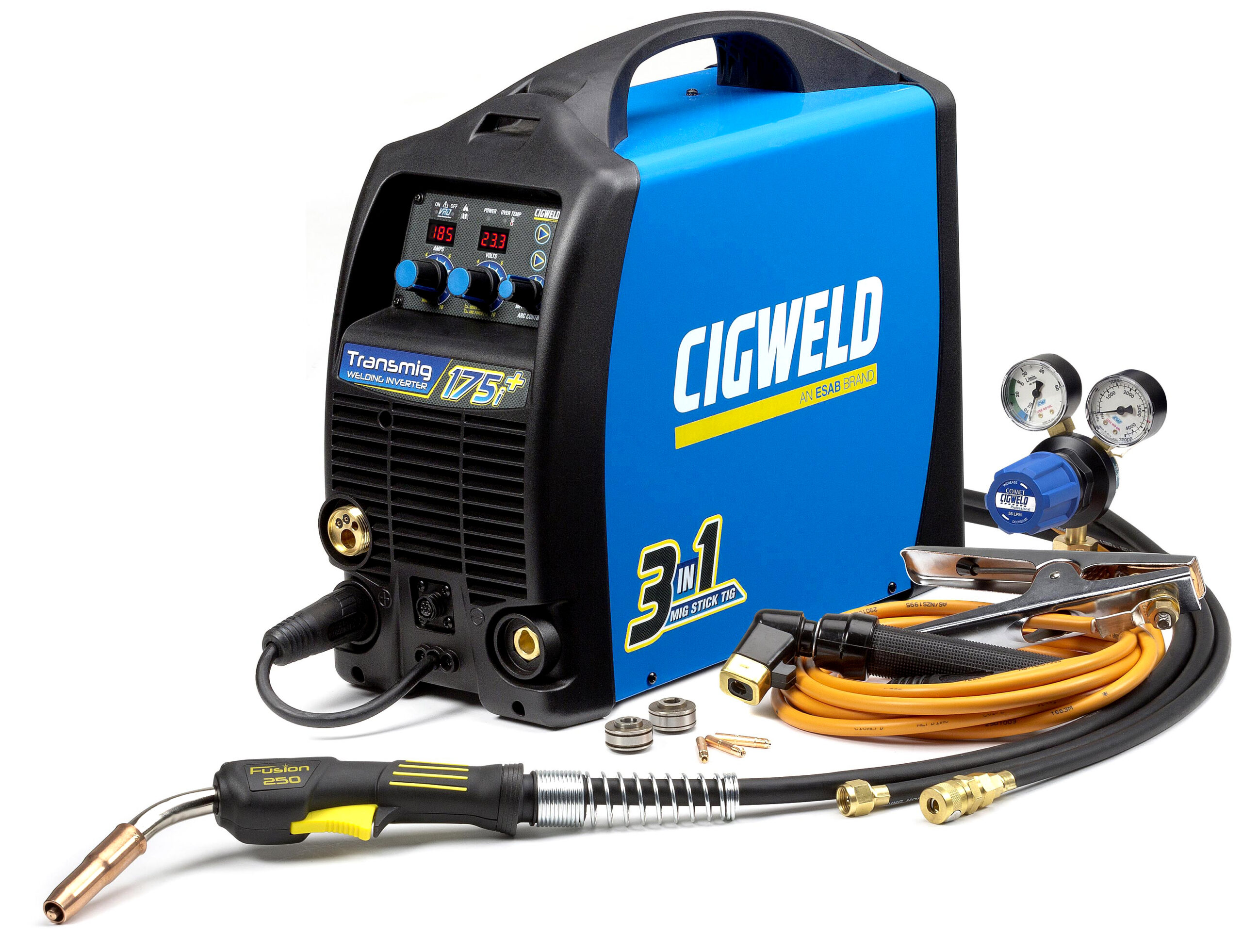

Transmig 175i+ Inverter power source Tweco Professional Fusion 250 MIG Torch, 3m COMET Professional Argon Regulator/Flowmeter Feed Rolls: 0.6/0.8mm V Groove (fitted), 1.0/1.2mm U Groove, 0.8/0.9mm V Knurled Contact Tips: 0.8mm (fitted), 0.6mm, 0.9mm, 1.0mm Twist Lock Electrode Holder with 4m Lead Work Clamp with 4m Lead Shielding Gas Hose Assembly Shoulder Strap Product Bag Operating manual (not pictured)

ORDERING INFORMATION

TRANSMIG 175i+, P/N: W1005185

PRODUCT TESTING

As part of our product development, CIGWELD rigorously test all the internal components of the welding machine and its external accessories. We make sure that the machines are not just fit for purpose, but will handle tougher than expected working conditions. Additionally, we also conduct weld tests on various common metals, using the expertise of our local technical team ensuring that the settings you use on our machines are tuned to local conditions.
