IRONWELD 3000W 3KW Laser Welder / Cleaner / Cutter - Heavy Duty

The IRONWELD Engineering Advantage

We’ve taken the standard laser platform and overhauled the critical failure points to ensure your investment keeps earning:

• Sealed Closed-Loop Liquid Cooling: Traditional units rely on air intake that sucks in metallic dust and conductive fibres. Which is a death sentence for internal electronics. Our redesigned architecture encompasses the entire power source in a fully sealed, liquid-cooled loop. By eliminating air-exchange cooling for the internals, we’ve effectively "dust-proofed" the power course, significantly extending the lifespan of the fibre source.

• Consolidated Power Management: Forget the cable mess. We’ve re-engineered the internal power distribution so the entire system, including the wire feeder runs from a single, 3 Phase 32amp 5 Pin Plug. It’s faster to set up and simplifies your workshop power requirements.

• Upgraded Electrical Conductivity: Where others use aluminium, we use High-Conductivity Copper for our earth connections. This reduces heat build-up at the contact point and ensures a rock-solid, stable arc during long-duration, high-output runs.

• Full Aluminium Construction: Unlike plastic-heavy alternatives, this gun features a rugged aluminium body. This provides superior heat dissipation during long 3000W runs and ensures the tool can survive the inevitable bumps and drops of a busy bay

• The IRONWELD IW-30PRO introduces a significant efficiency boost for heavy fabrication through its optional double-wire feeder system, which is designed to handle high-volume production with ease. This advanced configuration allows two separate rolls of wire to run through the gun simultaneously, effectively doubling the filler wire diameter and increasing the maximum weld width to 4.0mm. By utilizing the full 3000W output of the power source, this dual-wire capability allows operators to bridge large gaps and fill heavy joints in a single pass, which effectively eliminates the need for time-consuming multiple passes common in traditional welding. This streamlined process not only speeds up the workflow but also keeps the Heat-Affected Zone (HAZ) remarkably small, preventing the distortion and warping often seen in multi-pass MIG or TIG applications. When combined with the next-generation aluminium gun and its one-touch job-changing presets, this system provides a level of penetration and surgical precision that is unmatched in the heavy fabrication industry.

Operator-Centric Features

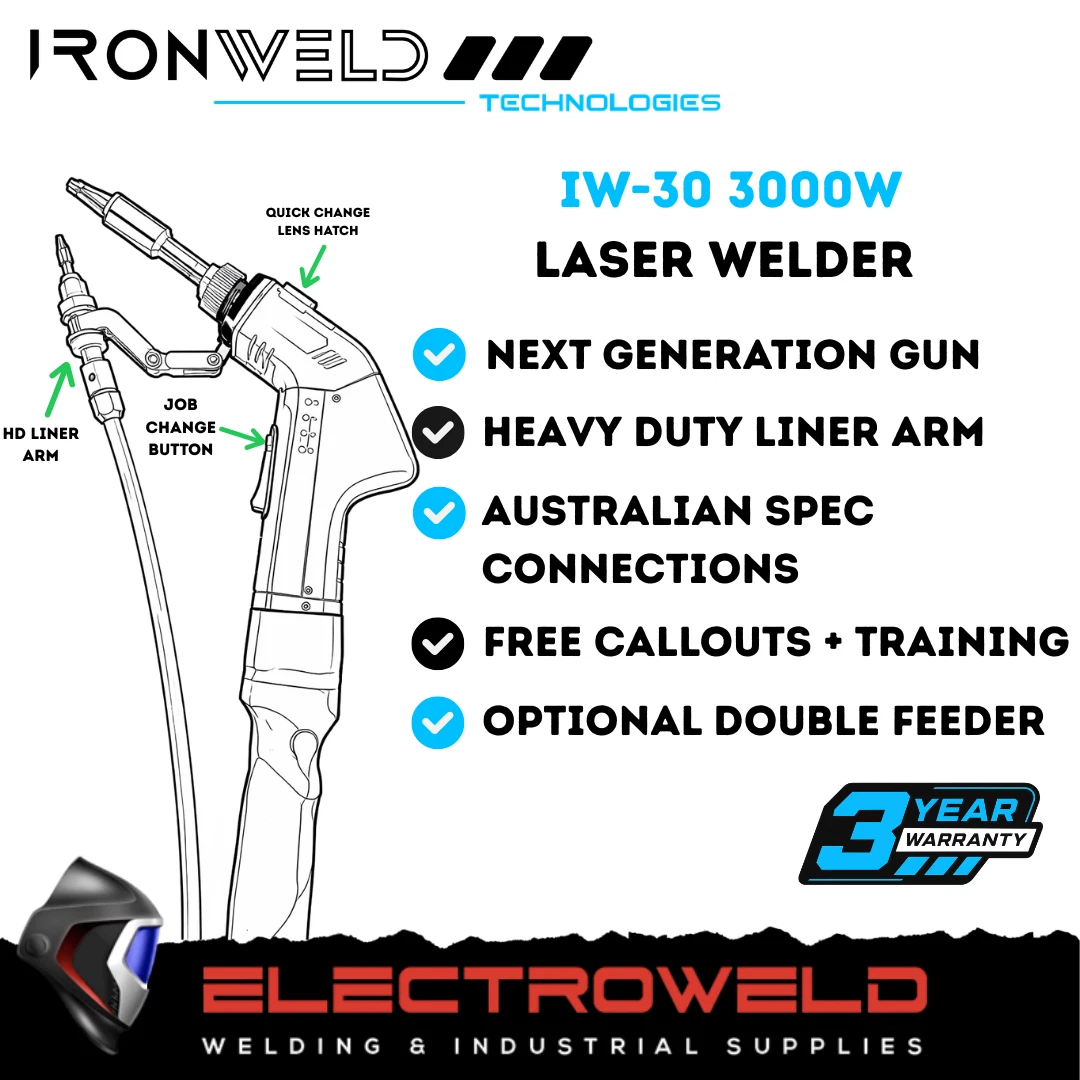

• Integrated Job-Change Button: Efficiency is about staying at the workpiece. The gun features a dedicated button that allows the operator to toggle instantly between 3 preset job profiles. In a production environment, walking back to the machine to adjust settings is wasted time. You can set Job 1 for 6mm heavy plate, Job 2 for thin-gauge tacks, and Job 3 for a vertical down. Switch between them with a single click without breaking your stance or lifting your helmet.

• Leather Cable Protection: We include a premium leather shroud for the laser cabling. This provides superior resistance to slag, sparks, and abrasion, protecting the fibre optic core from the harsh environment of a fabrication bay.

• 3-in-1 Versatility: Quickly switch between high-speed welding, precision cutting, and laser cleaning (oxide/rust removal) with the quick-change lens hatch.

• Workshop-Ready Mobility: The IW-30PRO sits on doubled-thickness heavy-duty reinforced casters. They won’t "flat-spot" under the unit's weight and are designed to navigate workshop grates and uneven concrete without snagging.

• Universal Standard Connectivity: The IW-30PRO utilizes industry-standard interfaces to ensure your setup remains flexible and serviceable. By using a heavy-duty 35/50 Dinse-style connection for the earth lead and a quick-connect fitting for the gas supply, we’ve eliminated the need for proprietary tools or specialized adapters. This allows you to swap, extend, or replace leads with ease using common workshop hardware, keeping your machine operational and fully compatible with your existing equipment.

We stand behind our builds with a 3-Year Complete Warranty. Because we know downtime is lost revenue, we include Free Callouts and On-Site Training (available in select regions) to ensure your team is proficient and your machine is performing at its peak from Day 1.
