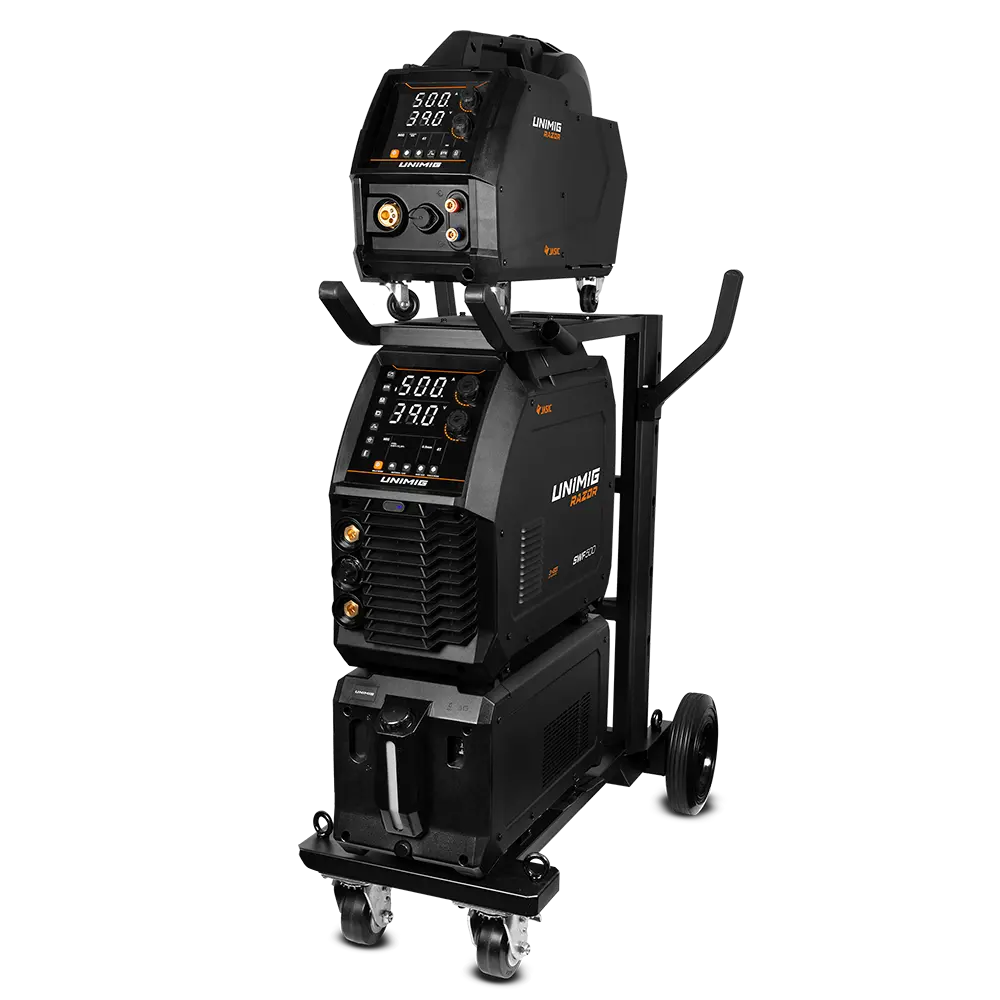

UNIMIG PK11127 Razor SWF 500 Water-Cooled Mig/Tig/Stick Welder Combo Kit

Smart-Set MIG
Preset synergic MIG programs allow rapid setup by selecting wire type, wire size, gas type and material thickness while the machine automatically configures optimal welding settings.

Multi-Process Welding
Supports MIG, TIG and MMA/STICK welding from one machine, including both gas-shielded and gasless MIG wire capability for a wide range of fabrication applications.

Water-Cooled Welding System
Integrated water-cooling setup maintains lower torch temperatures during extended high-amperage welding, improving torch durability, operator comfort and heavy-duty performance.

Separate Wire Feeder System
Separate wire feeder provides up to 10 metres of additional manoeuvrability, allowing easier welding around large fabrication projects without repositioning the entire machine.

4 Geared Wire Feed System
Four geared drive rollers deliver smoother and more consistent wire feeding with increased drive force, especially beneficial for long MIG torches and aluminium wire.

Digital Display MIG Torch
Built-in torch display allows live adjustment of amperage, voltage and arc length directly from the MIG torch for fast and precise on-the-fly weld control.

Push-Pull Gun Ready
Compatible with push-pull MIG guns for smoother aluminium wire feeding and improved wire control over long cable distances.

Spool Gun Ready
Supports spool gun connection for simplified aluminium MIG welding without changing the machine’s primary wire setup.

DC Lift Arc TIG
DC Lift TIG functionality enables precise TIG welding on mild steel, stainless steel, copper and silicon bronze materials.

Air Arc Gouging Capability
Supports air arc gouging for weld removal, surface preparation and heavy fabrication repair applications.

HD Backlit Control Panel
High-definition backlit screen presents welding parameters in a clear, organised and easy-to-read interface for fast adjustments and intuitive operation.

Advanced IGBT Inverter Technology
Modern IGBT inverter platform delivers improved efficiency, stronger arc stability, faster response to arc demand changes and more consistent power delivery.

Smart Fan Technology
Cooling fan operates only when required, reducing noise, minimising dust intake and extending internal component life.

Large Wire Spool Capacity
Supports both D200 and D300 wire spools, including 15kg mild steel spools and 7kg aluminium spools for longer uninterrupted welding time.

Job Memory Function
Stores and recalls up to 10 welding parameter setups for repeatable production welding and faster workflow changes.

Generator Compatible
Can operate from a generator for remote and on-site welding applications. Recommended minimum generator size is 40kVA.

Advanced MMA Features
Integrated MMA/STICK functions improve arc stability, weld quality and ease of use during electrode welding applications.

Arc Force
Automatically adjusts welding current to stabilise the arc and prevent electrode sticking or arc cut-outs during MMA welding.

Anti-Stick
Reduces welding current when the electrode sticks to the workpiece, helping prevent overheating and making electrode removal easier.

VRD (Voltage Reduction Device)
Improves operator safety during MMA welding by reducing open-circuit voltage when not actively welding.

Burnback Adjustment
Allows adjustment of wire burnback timing to improve wire control and arc starts after each weld.

Wire Inch Function
Feeds wire through the torch without energising the welding circuit, simplifying wire loading and setup.

Inductance Control
Allows adjustment of arc softness and puddle fluidity for improved bead appearance and spatter control.

Thermal Overload Protection
Integrated over-temperature protection safeguards the machine during prolonged heavy-duty welding operation.

415V Three-Phase Industrial Power
Powered by 415V three-phase input with welding output up to 500A for industrial fabrication and production welding environments.

Heavy-Duty Duty Cycle
Industrial duty cycle performance supports extended welding at high amperage levels, including 40% duty cycle at 500A.

Wide Material Compatibility
Capable of welding mild steel, stainless steel, aluminium, silicon bronze, copper and cast iron across MIG, TIG and MMA processes.

IP23S Protection Rating
IP23S-rated housing provides increased durability and protection against harsh workshop and industrial site conditions.

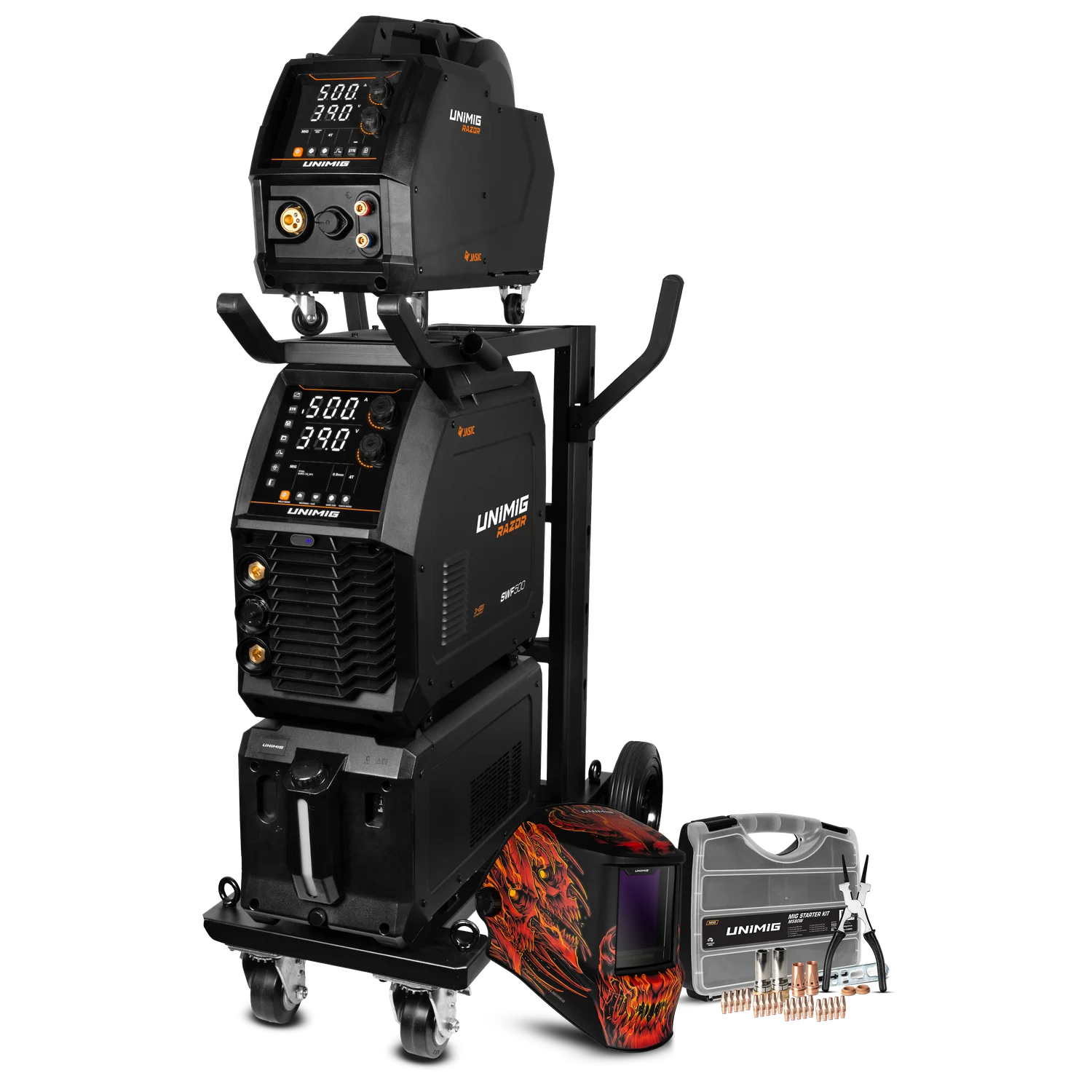

Professional Water-Cooled Bundle Package
Bundle includes the Razor SWF 500 Water-Cooled Welder, consumable starter kit and Professional Series Demon welding helmet for a complete heavy-duty welding package.
