UNIMIG Razor SWF 500 Air-Cooled Combo Kit Mig/Tig/Stick Welder PK11126

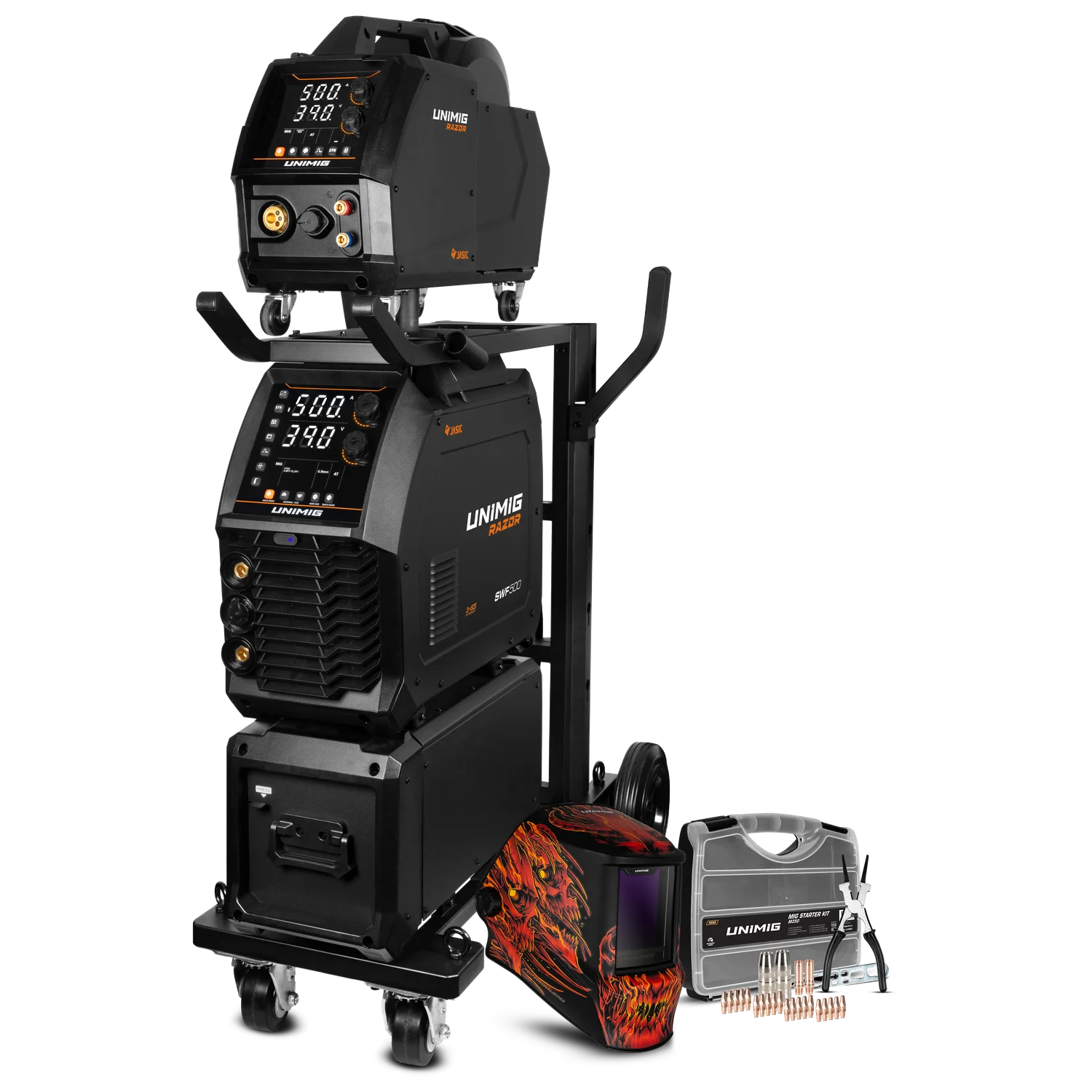

UNIMIG Razor SWF 500 Air-Cooled Combo Kit Mig/Tig/Stick Welder PK11126 — image 1
Superior performance even in the harshest conditions, this powerful workshop machine delivers nothing less than top-tier weld quality. A separate wire feeder gives extra manoeuvrability Push-Pull gun ready for heavy-duty welding 4 geared wire drive system for the smoothest wire feeding experience
SKU:PK11126
AU$6,489.98
In Stock

Pay in 4 interest-free payments of $1,622.50

No fees · Available at checkout

OPTIONS

UNIMIG PK11127 Razor SWF 500 Water-Cooled Mig/Tig/Stick Welder Combo Kit

UNIMIG PK11127 Razor SWF 500 Water-Cooled Mig/Tig/Stick Welder Combo Kit

AU$7,279.95

+
IRONWELD 3000W 3KW Laser Welder / Cleaner / Cutter - Heavy Duty DUAL WIRE FEED

IRONWELD 3000W 3KW Laser Welder / Cleaner / Cutter - Heavy Duty DUAL WIRE FEED

AU$24,199.00

+
IRONWELD 3000W 3KW Laser Welder / Cleaner / Cutter - Heavy Duty

IRONWELD 3000W 3KW Laser Welder / Cleaner / Cutter - Heavy Duty

AU$21,399.00

+
IRONWELD 2000W 2KW Laser Welder / Cleaner / Cutter - Heavy Duty

IRONWELD 2000W 2KW Laser Welder / Cleaner / Cutter - Heavy Duty

AU$14,849.00

+

5 Year Warranty

Seperate Wire Feeder

Allows portability and movement with ease

Bonus Professional Helmet + Consumables Kit

  • Smart-Set MIG
    Preset synergic MIG programs allow rapid setup by selecting wire type, wire size, gas type and material thickness while the machine automatically configures optimal welding settings.

  • Multi-Process Welding
    Supports MIG, TIG and MMA/STICK welding from one machine, including both gas-shielded and gasless MIG wire capability for a wide range of applications.

  • Separate Wire Feeder System
    Separate wire feeder unit provides up to 10 metres of additional manoeuvrability, allowing easier welding around large fabrication projects without moving the full machine.

  • 4 Geared Wire Feed System
    Four geared drive rollers deliver smoother, more stable wire feeding with increased drive force, especially beneficial for long MIG torches and aluminium wire.

  • Digital Display MIG Torch
    Built-in torch display allows live adjustment of amperage, voltage and arc length directly from the MIG torch for fast and precise on-the-fly control.

  • Push-Pull Gun Ready
    Compatible with push-pull MIG guns for smoother aluminium wire feeding and improved wire control over longer cable distances.

  • Spool Gun Ready
    Supports spool gun connection for simplified aluminium MIG welding without changing the machine’s primary wire setup.

  • DC Lift Arc TIG
    DC Lift TIG functionality enables clean TIG welding on mild steel, stainless steel, copper and silicon bronze materials.

  • Air Arc Gouging Capability
    Supports air arc gouging for weld removal, surface preparation and heavy fabrication repair work.

  • HD Backlit Control Panel
    High-definition backlit screen presents welding parameters in a clear, organised and easy-to-read interface for fast adjustments.

  • Advanced IGBT Inverter Technology
    Modern IGBT inverter platform delivers improved efficiency, stronger arc stability, faster response to arc demand changes and consistent power delivery.

  • Smart Fan Technology
    Fan operates only when required to reduce noise, lower power consumption and minimise dust entering internal electronics.

  • Advanced MMA Features
    Integrated MMA/STICK functions improve usability and weld quality for electrode welding applications.

  • Arc Force
    Automatically adjusts welding current to stabilise the arc and prevent sticking or arc cut-outs during MMA welding.

  • Anti-Stick
    Reduces current when the electrode sticks to make removal easier and reduce overheating risk.

  • VRD (Voltage Reduction Device)
    Improves operator safety by reducing open-circuit voltage when not actively welding in MMA mode.

  • Inductance Control
    Allows fine adjustment of arc softness and puddle fluidity for improved bead profile and welding performance.

  • Burnback Adjustment
    Controls wire burnback timing to help prevent wire fusing into the weld pool or contact tip after welding.

  • Wire Inch Function
    Feeds wire through the MIG torch without energising the welding circuit, simplifying setup and wire loading.

  • Thermal Overload Protection
    Built-in overheating protection safeguards the machine during prolonged heavy-duty operation.

  • 415V Three-Phase Industrial Power
    Designed for industrial 415V three-phase power with output up to 500A for demanding workshop and fabrication applications.

  • Heavy-Duty Duty Cycle
    Industrial duty cycle supports prolonged high-amperage welding with up to 500A output capability.

  • Wide Material Compatibility
    Capable of welding mild steel, stainless steel, aluminium, silicon bronze, cast iron and copper across MIG, TIG and MMA processes.

  • IP23S Protection Rating
    IP23S-rated housing provides durability and reliable operation in harsh workshop and industrial environments.

  • Industrial Workshop Construction
    Heavy-duty construction is designed to withstand demanding fabrication and engineering environments while maintaining stable welding performance.

  • Professional Bundle Package
    Bundle includes the Razor SWF 500 welder, consumable starter kit and Professional Series Demon welding helmet for a complete industrial welding package.

  • Generator Compatible
    Supports generator operation with a recommended minimum 40kVA generator for remote industrial welding applications.

  • Professional Aluminium Welding Capability
    Push-pull compatibility, spool gun support and four-roll wire feeding make the system highly suited to heavy-duty aluminium MIG welding.
